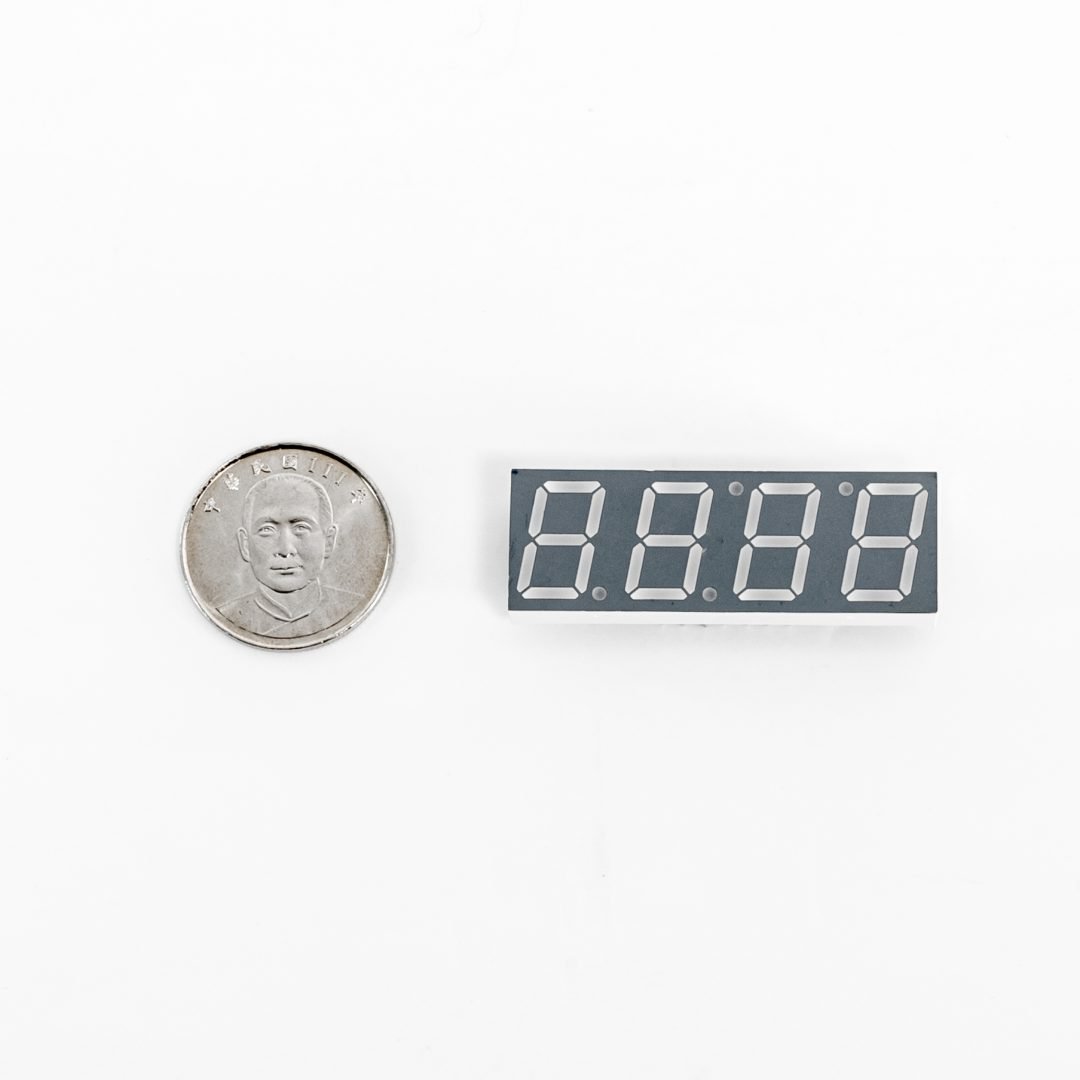

0.56" Quad Digit THT LED 7-Segment Display | Diamond Seg. | 8.8:88

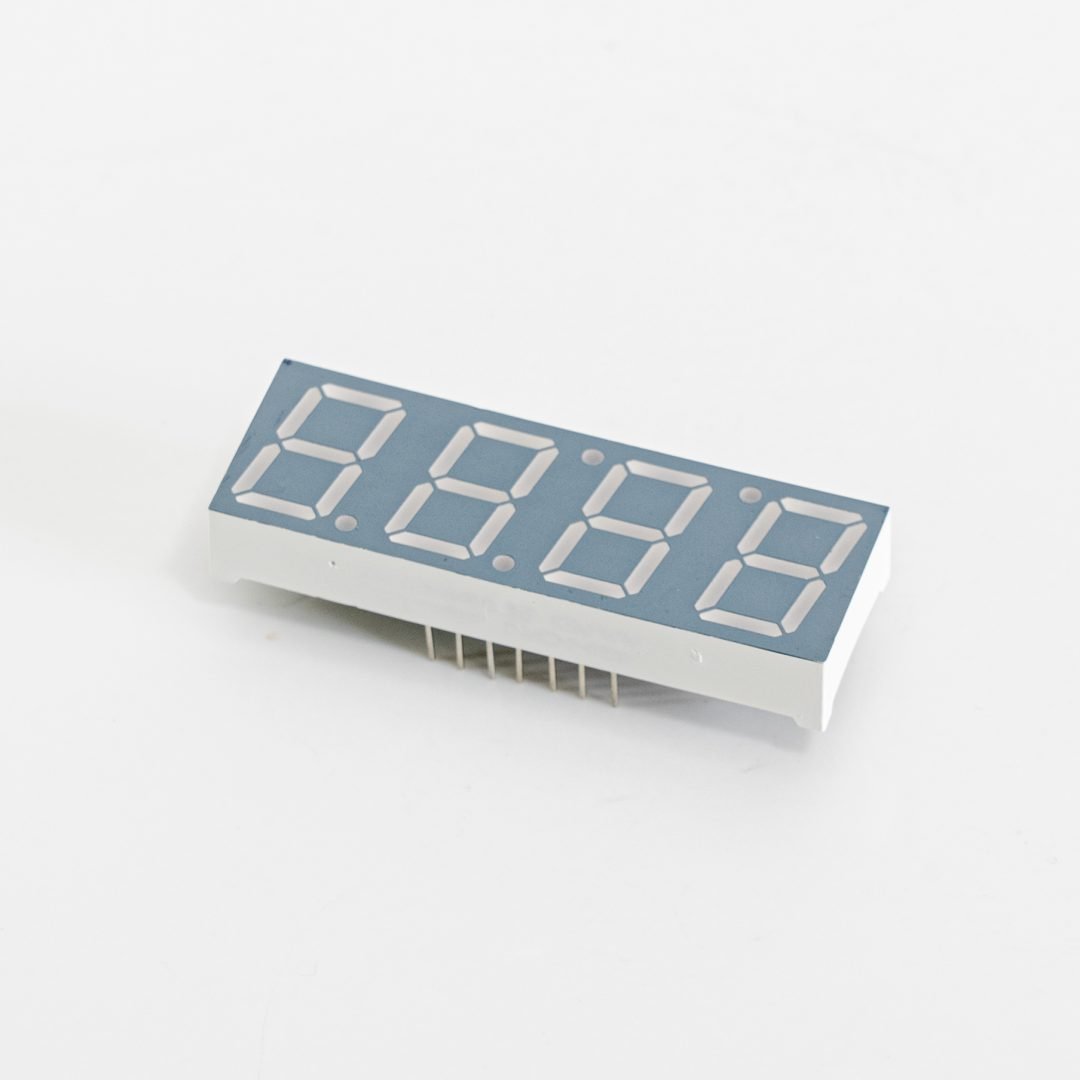

0.56" Quad Digit THT LED 7-Segment Display | Diamond Seg. | 8.8:88 - product image 2

0.56″ Quad Digit THT LED 7-Segment Display | Diamond Seg. | 8.8:88

SKU: OPD-Q5640(1) Category: Polarity: OPD-Q5640 = Common Anode (CA); OPD-Q5641 = Common Cathode (CC)
Polarity digit in the part number: even = common anode, odd = common cathode.

Filters Sort results
Reset Apply
Digit Height:
0.56" | 14.23(mm)
Kind of Display:
7-Segment Display
Mounting:
THT (Through-Hole Technology) / DIP (Dual-In line Package)
Display Thickness:
8.00mm
Display WxL:
19.00mm x 50.20mm
Number of Characters:
4
Select part numbers for a quoteContact Sales

Description

>>Scroll Right to Learn More
Filters Sort results
Reset Apply
SKU
Doc
Drive Current
Emitting Color
Forward Voltage
Luminosity
Dominant Wavelength / Chromaticity
QTY
Request
OPD-Q5640(1)LA
Documentation
20(mA)
⋅Amber
2.0~2.4(V)
60mcd
600-610(nm)
Add to quote Add to quote Product added
OPD-Q5640(1)LB
Documentation
20(mA)
⋅Blue
3.0~3.4(V)
60mcd
460-475(nm)
Add to quote Add to quote Product added
OPD-Q5640(1)LE
Documentation
20(mA)
⋅Orange Red
2.1~2.4(V)
60mcd
619-629(nm)
Add to quote Add to quote Product added
OPD-Q5640(1)UPG
Documentation
20(mA)
⋅Pure Green
2.8-3.2(V)
250mcd
515-530(nm)
Add to quote Add to quote Product added
OPD-Q5640(1)LR
Documentation
20(mA)
⋅Red
2.1~2.4(V)
20mcd
635-648(nm)
Add to quote Add to quote Product added
OPD-Q5640(1)W
Documentation
5(mA)
⋅White
2.9~3.2(V)
180mcd
(X/Y)=(0.285/0.275)
Add to quote Add to quote Product added
OPD-Q5640(1)LY
Documentation
20(mA)
⋅Yellow
2.1~2.4(V)
60mcd
585-595(nm)
Add to quote Add to quote Product added
OPD-Q5640(1)YG
Documentation
20(mA)
⋅Yellow Green
2.1~2.4(V)
20mcd
567-576(nm)
Add to quote Add to quote Product added

Frequently Asked Questions

What module size should I allow for on the PCB?

Reserve 19.00 mm x 50.20 mm of board space; display thickness 8.00 mm (digit height 0.56" (14.23 mm), 4 digits).

Is OPD-Q5640 available in multiple colors?

Available emitting colors: Amber, Blue, Orange Red, Pure Green, Red, White, Yellow, Yellow Green.

What are the electrical characteristics?

Typical forward voltage: 2.0–2.4 V (Amber); 3.0–3.4 V (Blue); 2.1–2.4 V (Orange Red, Red, Yellow, Yellow Green); 2.8–3.2 V (Pure Green); 2.9–3.2 V (White). Drive current: 20 mA (Amber, Blue, Orange Red, Pure Green, Red, Yellow, Yellow Green); 5 mA (White).

What luminous intensity can I expect?

Brightness varies by color — 60 mcd (Amber, Blue, Orange Red, Yellow); 250 mcd (Pure Green); 20 mcd (Red, Yellow Green); 180 mcd (White).

What are the specs of the white variant?

The white variant (OPD-Q5640(1)W) runs at 5 mA with forward voltage 2.9–3.2 V, typical luminosity 180 mcd, chromaticity (X/Y) (0.285/0.275).

Additional information

Emitting Color

Amber, Blue, Orange Red, Pure Green, Red, White, Yellow, Yellow Green

Drive Current

20(mA), 5(mA)

Forward Voltage

1.8-2.2V, 1.8V-2.2V, 10.0-12.0V, 10.0V-12.0V, 10.5-12V, 10.5V-12.0V, 10.8V-13.2V, 11.2-12.8V, 11.2V-12.8V, 12.0-12.8V, 12.0-13.2V, 12.0-14.4V, 12.0V-12.8V, 12.0V-13.2V, 12.6-14.4V, 12.6V-14.4V, 12.6V-16.1V, 12V-14.4V, 14-16V, 14.0-16.8V, 14.0V-16.0V, 14.0V-16.8V, 14.7-16.8V, 14.7V-16.8V, 15.0-16.0V, 15.0V-16.0V, 16.8-19.2V, 16.8V-19.2V, 18.0-19.2V, 18V-19.2V, 2.0-2.4(V), 2.0-2.4V, 2.0-2.5V, 2.0~2.4(V), 2.0V-2.4V, 2.0V-2.6V, 2.1-2.5V, 2.1~2.4(V), 2.1V-2.4V, 2.1V-2.6V, 2.2-2.5V, 2.2-2.6V, 2.5V-3.6V, 2.8-3.2(V), 2.8V-3.2V, 2.9~3.2(V), 2.9V-3.2V, 21.0-22.4V, 21.0V-22.4V, 3.0~3.4(V), 3.0V-3.3V, 3.0V-3.4V, 3.2-3.6(V), 3.2-3.6V, 3.2-3.8(V), 3.2-3.8V, 3.2V-4.0V, 3.6V-4.4V, 4.0-4.8(V), 4.0-4.8V, 4.0V-4.8V, 4.2-4.8V, 4.2V-4.8V, 5.4V-6.6V, 5.6-6.4V, 5.6V-6.4V, 5.8-6.4(V), 5.8-6.4V, 6.0-6.8(V), 6.0-6.8V, 6.0-7.2V, 6.0V-6.8V, 6.0V-7.2V, 6.3-7.2V, 6.3V-7.2V, 7.2V-8.8V, 7.2V-9.2V, 8.0-9.6V, 8.0V-9.6V, 8.4-9.6V, 8.4V-9.6V, 9.0-10.2V, 9.0V-10.2V, 9.0V-11.0V

Luminosity(Typ.)

0.85mW/sr, 1.3mW/sr, 1000mcd, 100mcd, 102mcd, 107.5mcd, 10mcd, 1100mcd, 110mcd, 112.5mcd, 1125mcd, 11mcd, 12.5mcd, 120mcd, 12mcd, 13.7mcd, 130mcd, 137.5mcd, 1400mcd, 140mcd, 145mcd, 14mcd, 150 mcd, 1500mcd, 150mcd, 15mcd, 16000mcd, 160mcd, 16mcd, 18.5mcd, 1800mcd, 180mcd, 18mcd, 190mcd, 195mcd, 198mcd, 2000mcd, 200mcd, 205mcd, 207.5mcd, 20mcd, 210mcd, 2200mcd, 2250mcd, 230mcd, 23mcd, 240mcd, 25000mcd, 2500mcd, 250mcd, 25mcd, 265mcd, 2685mcd, 2750mcd, 28.5mcd, 2800mcd, 280mcd, 285mcd, 28mcd, 3.95mcd, 3000mcd, 300mcd, 30mcd, 312.5mcd, 32.5mcd, 33.5mcd, 35mcd, 360mcd, 37.5mcd, 3750mcd, 37mcd, 38mcd, 3900mcd, 3mcd, 4000mcd, 400mcd, 40mcd, 425mcd, 440mcd, 450mcd, 45mcd, 47.5mcd, 475mcd, 47mcd, 500mcd, 50mcd, 51.5mcd, 52.5mcd, 525mcd, 530mcd, 550mcd, 55mcd, 57.5mcd, 5mcd, 60mcd, 62.5mcd, 6480mcd, 7.15mcd, 700mcd, 70mcd, 71.5mcd, 715mcd, 72.5mcd, 72.8mcd, 770mcd, 7mcd, 80mcd, 8mcd, 900mcd, 90mcd, 97.5mcd, 9mcd, Blue:192mcd, Red:425mcd, Green:250mcd, Red:425mcd, Red: 32mcd, Pure Green: 46mcd, Blue: 8mcd, Red:66mcd, Green:101mcd, Blue:31mcd, White:2000mcd, Red:425mcd, Yellow:336mcd, Blue:192mcd, Yellow:336mcd, Green:250mcd, Yellow:336mcd, Red:425mcd

Dominant Wavelength / Chromaticity Coordinate

(X/Y)=(0.285/0.275), 400nm, 460-474(nm), 460-475(nm), 464-474(nm), 464~474(nm), 465nm, 466-474(nm), 468nm, 470nm, 472nm, 500nm, 505nm, 515-530(nm), 515~530(nm), 520nm, 522nm, 525nm, 527nm, 530nm, 567-576(nm), 567~576(nm), 568nm, 572nm, 573nm, 585-595(nm), 585~595(nm), 589nm, 590nm, 593nm, 600-610(nm), 600-614(nm), 600~614(nm), 601-613(nm), 601-614(nm), 606-630(nm), 612nm, 616-630nm, 619-629(nm), 619~629(nm), 632nm, 635-648(nm), 635~648(nm), 645nm, 650nm, 655nm, 660nm, 700nm, x-0-265, x-0-29, X: 0.265 Y:0.25, X: 0.28 Y: 0.29, X: 0.285, X: 0.285 Y: 0.275, X: 0.285 Y:0.275, X: 0.29 Y:0.285, X: 0.31 Y: 0.32, X:0.285 Y:0.275, X:0.29 Y: 0.28, Y: 0.275, Y)=(0.285

Mounting

THT (Through-Hole Technology) / DIP (Dual-In line Package)

Kind of display

7-Segment Display

Number of Characters

4

Display Thickness

1, 10.00mm, 10.20mm, 10.5mm, 11mm, 12.00mm, 12.5mm, 12mm, 13.00mm, 13mm, 15mcd, 15mm, 16.2mm, 18.70mm x 9.80mm, 2.10mm, 2.30mm, 2.60mm, 25.00mm x 19.00mm, 3.10mm, 3.30mm, 3.75mm, 3.85mm, 3.8mm, 30.50mm x 13.00mm, 3mm, 4.05mm, 5.10mm, 5.80mm, 5.90mm, 6.00mm, 6.10, 6.10mm, 6.2mm, 6.30mm, 6.50mm, 6.5mm, 7.00mm, 7.20mm, 7.50mm, 7.70mm, 7.80mm, 7.90mm, 7mm, 8.00mm, 8.30mm, 8.40mm, 8.50mm, 8.80mm, 9.00mm, 9.20mm, 9.50mm, 9mm

Display WxL

10.00mm x 15.00mm, 10.00mm x 22.60mm, 10.00mm x 32.10mm, 10.10mm x 25.50mm, 10.10mm x 30.40mm, 106.50mm x 76.00mm, 109.7mm x 70mm, 10mm x 14.4mm, 10mm x 21.6mm, 10mm x 28.8mm, 10mm x 7.2mm, 11.00 mm x 7.40mm, 11.00mm x 30.20mm, 11mm x 22.5mm, 11mm x 7.5mm, 12.70 x 7.60, 12.70mm x 7.60mm, 12.80mm x 30.02mm, 12.80mm x 40.18mm, 12.8mm x 19.9mm, 122mm x 90mm, 12mm x 14.6mm, 12mm x 15mm, 12mm x 21.9mm, 12mm x 29.2mm, 12mm x 30mm, 12mm x 7.3mm, 13.00mm x 30.50mm, 13.00mm x 7.60mm, 13mm x 10mm, 14.00mm x 15.00mm, 14.00mm x 22.50mm, 14.00mm x 30.00mm, 14.00mm x 7.50mm, 14.4 x 10mm, 14.6 x 12mm, 140mm x 105mm, 14mm x 15mm, 14mm x 30mm, 15 x 12mm, 15.00mm x 14.00mm, 15.00mm x 15.50mm, 15.00mm x 9.80mm, 15.50mm x 15.00mm, 15mm x 15.5mm, 15mm x 18.5mm, 15mm x 19.6mm, 15mm x 27.75mm, 15mm x 29.4mm, 15mm x 37mm, 15mm x 39.2mm, 15mm x 9.25mm, 15mm x 9.8mm, 16.00mm x 18.60mm, 16.00mm x 20.20mm, 16.00mm x 27.90mm, 16.00mm x 30.10mm, 16.00mm x 37.36mm, 16.00mm x 40.50mm, 16.9 x 13mm, 16.90mm x 20.20mm, 16mm x 20.1mm, 17.1mm x 12.4mm, 17.1mm x 50.4mm, 17.5mm x 12.25mm, 17.5mm x 24.5mm, 17.5mm x 25mm, 17.5mm x 36.75mm, 17.5mm x 49mm, 17.6mm x 12.4mm, 17.80mm x 12.70mm, 17.80mm x 50.80mm, 17mm x 25mm, 18.5 x 15mm, 18.70mm x 9.80mm, 18.8mm x 23.8mm, 18.90mm x 12.60mm, 19.00 mm x 25.00mm, 19.00mm x 12.60mm, 19.00mm x 37.60mm, 19.00mm x 50.00mm, 19.00mm x 50.20mm, 19.00mm x 50.30mm, 19.00mm x 50.3mm, 19.00mm x 9.30mm, 19.6 x 15mm, 19.90mm x 12.80mm, 19mm x 12.5mm, 19mm x 25mm, 19mm x 37.5mm, 19mm x 50.5mm, 19mm x 50mm, 20.00mm x 12.50mm, 20.00mm x 20.00mm, 20.10mm x 16.00mm, 21.10mm x 50.40mm, 21.15mm x 25.10mm, 21.6 x 10mm, 21.9 X 12mm, 22.5 X 11mm, 23.5 x 18.8mm, 24.00mm x 14.80mm, 25.00mm x 16.00mm, 25.00mm x 18.00mm, 25.00mm x 19.00mm, 25.70mm x 71.60mm, 25.8mm x 35.8mm, 27.50mm x 59.30mm, 27.70mm x 20.00mm, 27.75 x 15mm, 28.00mm x 50.40mm, 28.00mm x 67.20mm, 28.8 x 10mm, 28mm x 16.8mm, 28mm x 33.6mm, 29.2 x 12mm, 29.4 x 15mm, 30 x 12mm, 30.00mm x 14.00mm, 30.16 x 11mm, 30.50mm x 13.00mm, 31.70mm x 31.70mm, 31.80mm x 22.75mm, 32.00mm x 32.00mm, 32.10mm x 10.00mm, 33.00mm x 23.00mm, 33mm x 22.4mm, 34mm x 24mm, 35.80mm x 25.80mm, 37 x 15mm, 37.40mm x 23.40mm, 37.90mm x 37.90mm, 39.10mm x 22.80mm, 39.2 x 15mm, 40.8mm x 28.8mm, 44mm x 30.6mm, 47.8mm x 47.8mm, 53.10mm x 37.80mm, 56mm x 38mm, 60.20mm x 60.20mm, 60.60mm x 37.80mm, 69.70mm x 47.80mm, 69.7mm x 47.8mm, 7.00mm x 59.90mm, 7.2 x 10mm, 7.3 x 12mm, 7.5 x 11mm, 9.25 x 15mm, 9.8 x 15mm, 90mm x 62mm, Ø 54.3mm, test

Digit Height

0.56" | 14.23(mm)

Ordering terms

MOQTypically 1,000–10,000 pcs, quoted per part number; smaller quantities are welcome, with pricing based on volume
Production lead time6–8 weeks
Sample lead timeStandard 2–3 weeks; modified standard 2–6 weeks; full custom 6–8 weeks (6–8 weeks when materials are short)
SamplesGenerally charged; shipping paid by the customer
Tooling (full custom)USD 3,600–10,000, depending on the design
Quotation replyWithin 5 working days

Quality & support

  • 350 ppm quality level in mass production
  • ISO 9001:2015 quality management system
  • 8D report within 5 working days of receiving returned units
  • PCN / EOL notice 6 months in advance
  • 1-year warranty from the date of receipt
Request a quoteContact sales

Typical terms; final terms are confirmed in each quotation.

Related products

Full Part Numbers

Bracket notation in the table above is shorthand. The orderable part numbers are (click a part number for its datasheet):

OPD-Q5640LA, OPD-Q5641LA, OPD-Q5640LB, OPD-Q5641LB, OPD-Q5640LE, OPD-Q5641LE, OPD-Q5640UPG, OPD-Q5641UPG, OPD-Q5640LR, OPD-Q5641LR, OPD-Q5640W, OPD-Q5641W, OPD-Q5640LY, OPD-Q5641LY, OPD-Q5640YG, OPD-Q5641YG
