1.5" 單位數 THT LED 七段顯示器 | 菱形字節 | 電路圖版本V1
1.5" 單位數 THT LED 七段顯示器 | 菱形字節 | 電路圖版本V1 - 產品圖 2

1.5″ 單位數 THT LED 七段顯示器 | 菱形字節 | 電路圖版本V1

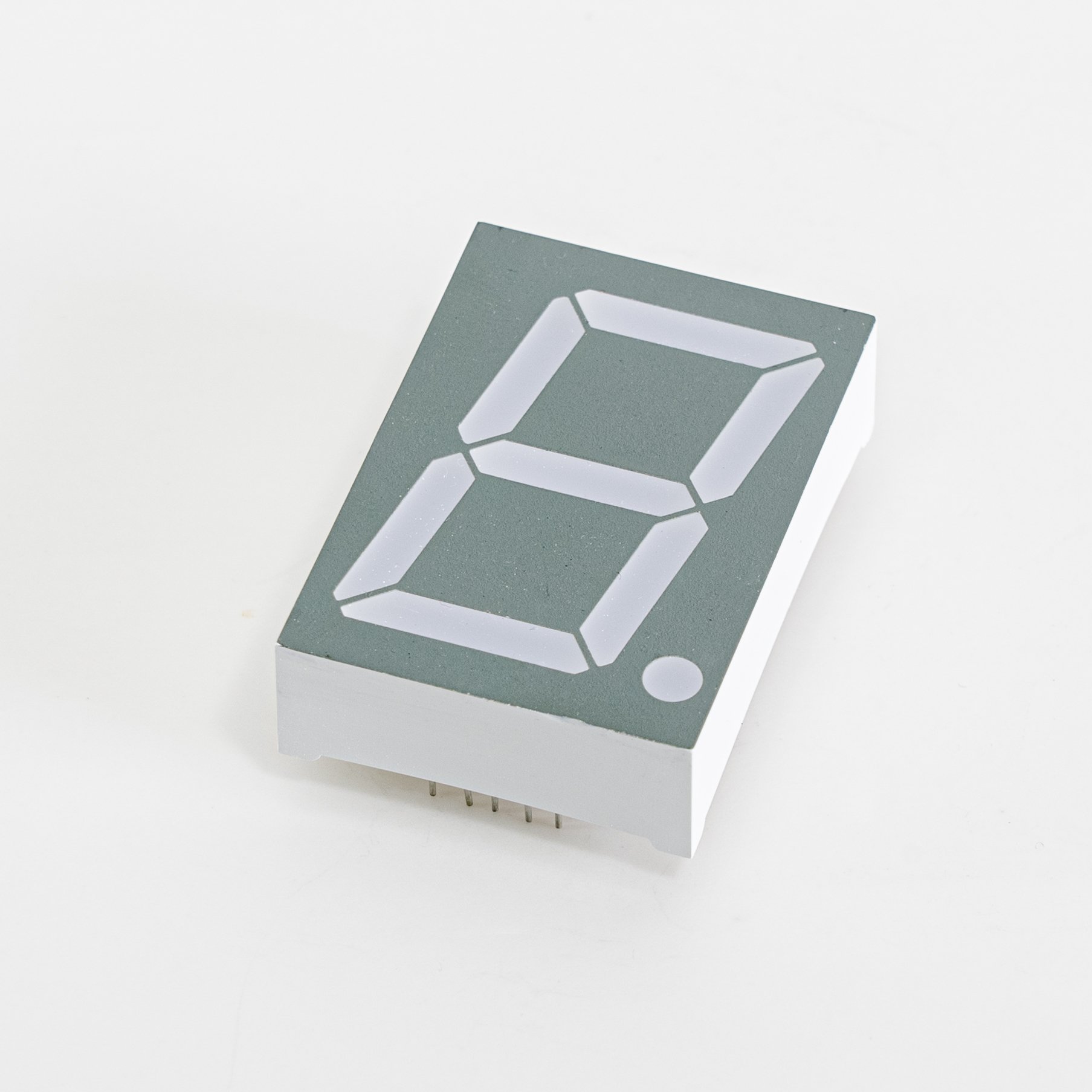

貨號: OPD-S15030(1) 分類: 極性：OPD-S15030 = 共陽極（Common Anode, CA）、OPD-S15031 = 共陰極（Common Cathode, CC）
料號中的極性碼：雙數為共陽極、單數為共陰極。

Filters 排序
清除 Apply
字元高度:
1.5" | 38.1(mm)
顯示器種類:
七段顯示器
封裝方式:
通孔銲接元件 (THT) / 雙排腳銲接元件 (DIP)
顯示器厚度:
12.50mm
顯示器長寬:
46.90 mm x 33.1mm
字元數目:
1
選擇料號加入詢價聯絡業務

描述

>>向右捲動看更多資訊
Filters 排序
清除 Apply
型號
文件
驅動電流
顏色
正向電壓
亮度
主波長/色度座標
數量
詢價
OPD-S15030(1)W
Documentation
5(mA)
⋅白
5.8-6.4(V)
180mcd
(X/Y)=(0.285/0.275)
加入詢價車 加入詢價車 已加入詢價車
OPD-S15030(1)LA
Documentation
20(mA)
⋅琥珀
4.0-4.8V
160mcd
600-610(nm)
加入詢價車 加入詢價車 已加入詢價車
OPD-S15030(1)LB
Documentation
20(mA)
⋅藍
6.0-6.8V
160mcd
460-474(nm)
加入詢價車 加入詢價車 已加入詢價車
OPD-S15030(1)LE
Documentation
20(mA)
⋅橘紅
4.2-4.8V
160mcd
619-629(nm)
加入詢價車 加入詢價車 已加入詢價車
OPD-S15030(1)UPG
Documentation
20(mA)
⋅綠
5.6-6.4V
1900mcd
515-530(nm)
加入詢價車 加入詢價車 已加入詢價車
OPD-S15030(1)LR
Documentation
20(mA)
⋅紅
4.2-4.8V
40mcd
635-648(nm)
加入詢價車 加入詢價車 已加入詢價車
OPD-S15030(1)LY
Documentation
20(mA)
⋅黃
4.2-4.8V
160mcd
585-595(nm)
加入詢價車 加入詢價車 已加入詢價車
OPD-S15030(1)YG
Documentation
20(mA)
⋅黃綠
4.2-4.8V
40mcd
567-576(nm)
加入詢價車 加入詢價車 已加入詢價車

常見問題

PCB 佈局要預留多大模組空間？

PCB 佈局請預留 46.90 mm x 33.1 mm（厚 12.50 mm），字高 1.5" (38.1 mm)、1 位數。

有哪些發光色可選？

共 8 種：白光、琥珀色、藍色、橘紅色、純綠色、紅色、黃色、黃綠色。

每個單元的電流電壓怎麼估？

電氣規格：驅動電流：5 mA（白光）；20 mA（琥珀色、藍色、橘紅色、純綠色、紅色、黃色、黃綠色）；順向電壓：5.8–6.4 V（白光）；4.0–4.8 V（琥珀色）；6.0–6.8 V（藍色）；4.2–4.8 V（橘紅色、紅色、黃色、黃綠色）；5.6–6.4 V（純綠色）。

亮度可以期待多少？

亮度依顏色而異——180 mcd（白光）；160 mcd（琥珀色、藍色、橘紅色、黃色）；1900 mcd（純綠色）；40 mcd（紅色、黃綠色）。

白光版本的規格？

白光版（OPD-S15030(1)W）驅動電流 5 mA、順向電壓 5.8–6.4 V、典型亮度 180 mcd、色度座標 (X/Y) (0.285/0.275)。

額外資訊

發光色

橘紅, 琥珀, 白, 紅, 綠, 藍, 黃, 黃綠

驅動電流

20(mA), 5(mA)

正向電壓

1.2~1.8(V), 1.8-2.2V, 1.80V, 1.8V-2.2V, 1.90V, 10.0-12.0V, 10.0V-12.0V, 10.5-12V, 10.5V-12.0V, 10.8V-13.2V, 11.2-12.8(V), 11.2-12.8V, 11.2V-12.8V, 11.6-12.8(V), 12.0-12.8V, 12.0-13.2V, 12.0-14.4V, 12.0V-12.8V, 12.0V-13.2V, 12.6-14.4V, 12.6V-14.4V, 12.6V-16.1V, 12V-14.4V, 14-16V, 14.0-16.8V, 14.0V-16.0V, 14.0V-16.8V, 14.7-16.8V, 14.7V-16.8V, 15.0-16.0V, 15.0V-16.0V, 16.8-19.2V, 16.8V-19.2V, 18.0-19.2V, 18V-19.2V, 2.0-2.4(V), 2.0-2.4V, 2.0-2.5V, 2.0-2.6(V), 2.0~2.4(V), 2.0~2.6(V), 2.0V, 2.0V-2.4V, 2.0V-2.6V, 2.1, 2.1-2.5(V), 2.1-2.5V, 2.1~2.4(V), 2.1~2.6(V), 2.1V, 2.1V-2.4V, 2.1V-2.6V, 2.2-2.5V, 2.2-2.6V, 2.50V, 2.5V-3.6V, 2.60V, 2.8-3.1(V), 2.8-3.2(V), 2.80V, 2.85V, 2.8V-3.2V, 2.9-3.25(V), 2.9~3.2(V), 2.9~3.5(V), 2.9~3.7(V), 2.9V, 2.9V-3.2V, 21.0-22.4V, 21.0V-22.4V, 3.0~3.4(V), 3.0V-3.3V, 3.0V-3.4V, 3.1-3.7(V, 3.1-3.7(V), 3.1-3.9(V), 3.2-3.5(V, 3.2-3.5(V), 3.2-3.6(V), 3.2-3.6V, 3.2-3.8(V), 3.2-3.8V, 3.2~3.4(V), 3.2~3.7(V), 3.2~3.9(V), 3.2V-4.0V, 3.3-3.9(V), 3.3~3.7(V), 3.3~3.9(V), 3.3V, 3.6V-4.4V, 3.7-4.1(V), 4.0-4.8(V), 4.0-4.8V, 4.0V-4.8V, 4.2-4.8(V), 4.2-4.8V, 4.2V-4.8V, 5.4V-6.6V, 5.6-6.4(V), 5.6-6.4V, 5.6V-6.4V, 5.8-6.4(V), 5.8-6.4V, 6.0-6.8(V), 6.0-6.8V, 6.0-7.2V, 6.0V-6.8V, 6.0V-7.2V, 6.3-7.2V, 6.3V-7.2V, 7.2V-8.8V, 7.2V-9.2V, 8.0-9.6V, 8.0V-9.6V, 8.4-9.6V, 8.4V-9.6V, 9.0-10.2V, 9.0V-10.2V, 9.0V-11.0V, Blue:2.7-3.9V, Red:1.6-2.0V, Follow spec., Green: 2.8-3.2V, Red: 2.1-2.4V, Green:2.7-3.9V, Red:1.6-2.0V, Red: 1.5V-2.7V, Green: 2.0V-3.3V, Blue: 2.0V-3.3V, Red: 1.5V-2.7V, Green: 2.1V-3.3V, Blue: 2.3V-3.5V, Red: 1.9-2.4V, Pure Green: 2.5-3.1V, Blue: 2.5-3.1V, Red: 1.9V, Green: 2.5V, Blue: 2.5V, RGB:4.5-5.5V, White:2.6-3.2V, Red:1.6-2.0V, Yellow:1.6-2.0V, Blue:2.7-3.9V, Yellow:1.6-2.0V, Green:2.7-3.9V, Yellow:1.6-2.0V, Red:1.6-2.0V

Luminosity(Typ.)

0.85mW/sr, 1.3mW/sr, 1000mcd, 100mcd, 102mcd, 107.5mcd, 10mcd, 1100mcd, 110mcd, 112.5mcd, 1125mcd, 11mcd, 12.5mcd, 1200mcd, 120mcd, 12mcd, 13.7mcd, 130mcd, 137.5mcd, 1400mcd, 140mcd, 145mcd, 14mcd, 150 mcd, 1500mcd, 150mcd, 15mcd, 16000mcd, 160mcd, 16mcd, 18.5mcd, 1800mcd, 180mcd, 18mcd, 1900mcd, 190mcd, 195mcd, 198mcd, 2000mcd, 200mcd, 205mcd, 207.5mcd, 20mcd, 210mcd, 2200mcd, 2250mcd, 230mcd, 23mcd, 240mcd, 25000mcd, 2500mcd, 250mcd, 25mcd, 265mcd, 2685mcd, 2750mcd, 28.5mcd, 2800mcd, 280mcd, 285mcd, 28mcd, 3.95mcd, 3000mcd, 300mcd, 30mcd, 312.5mcd, 32.5mcd, 33.5mcd, 35mcd, 360mcd, 37.5mcd, 3750mcd, 37mcd, 38mcd, 3900mcd, 3mcd, 4000mcd, 400mcd, 40mcd, 425mcd, 440mcd, 450mcd, 45mcd, 47.5mcd, 475mcd, 47mcd, 500mcd, 50mcd, 51.5mcd, 52.5mcd, 525mcd, 530mcd, 550mcd, 55mcd, 57.5mcd, 5mcd, 60mcd, 62.5mcd, 6480mcd, 7.15mcd, 700mcd, 70mcd, 71.5mcd, 715mcd, 72.5mcd, 72.8mcd, 770mcd, 7mcd, 80mcd, 8mcd, 900mcd, 90mcd, 97.5mcd, 9mcd, Blue:192mcd, Red:425mcd, Green:250mcd, Red:425mcd, Red: 32mcd, Pure Green: 46mcd, Blue: 8mcd, Red:66mcd, Green:101mcd, Blue:31mcd, White:2000mcd, Red:425mcd, Yellow:336mcd, Blue:192mcd, Yellow:336mcd, Green:250mcd, Yellow:336mcd, Red:425mcd

Dominant Wavelength / Chromaticity Coordinate

470nm, 522nm, 593nm, 612nm, 632nm, 650nm, (X/Y)=(0.285/0.275), 400nm, 460-474(nm), 464-474(nm), 464~474(nm), 466-474(nm), 468nm, 472nm, 500nm, 515-530(nm), 515~530(nm), 520nm, 525nm, 527nm, 530nm, 567-576(nm), 567~576(nm), 568nm, 572nm, 573nm, 585-595(nm), 585~595(nm), 589nm, 590nm, 600-610(nm), 600-614(nm), 600~614(nm), 601-613(nm), 601-614(nm), 619-629(nm), 619~629(nm), 635-648(nm), 635~648(nm), 645nm, 655nm, 660nm, 700nm, x-0-265, x-0-29, X: 0.265 Y:0.25, X: 0.28 Y: 0.29, X: 0.285, X: 0.285 Y: 0.275, X: 0.285 Y:0.275, X: 0.29 Y:0.285, X: 0.31 Y: 0.32, X:0.285 Y:0.275, X:0.29 Y: 0.28, Y: 0.275, Y)=(0.285

封裝方式

通孔銲接元件 (THT) / 雙排腳銲接元件 (DIP)

顯示器種類

七段顯示器

Number of Characters

1

Display Thickness

1, 10.00mm, 10.20mm, 10.5mm, 11mm, 12.00mm, 12.50mm, 12.5mm, 12mm, 13.00mm, 13mm, 15mcd, 15mm, 16.2mm, 18.70mm x 9.80mm, 2.10mm, 2.30mm, 2.60mm, 25.00mm x 19.00mm, 3.10mm, 3.30mm, 3.75mm, 3.85mm, 3.8mm, 30.50mm x 13.00mm, 3mm, 4.05mm, 5.10mm, 5.4mm, 5.80mm, 5.90mm, 6.00mm, 6.10, 6.10mm, 6.2mm, 6.30mm, 6.36mm, 6.50mm, 6.5mm, 6.9mm, 7.00mm, 7.20mm, 7.50mm, 7.70mm, 7.80mm, 7.90mm, 7mm, 8.00mm, 8.30mm, 8.40mm, 8.50mm, 8.80mm, 9.00mm, 9.20mm, 9.50mm, 9mm

Display WxL

10.00mm x 15.00mm, 10.00mm x 22.60mm, 10.00mm x 32.10mm, 10.10mm x 25.50mm, 10.10mm x 30.40mm, 106.50mm x 76.00mm, 109.7mm x 70mm, 10mm x 14.4mm, 10mm x 21.6mm, 10mm x 28.8mm, 10mm x 7.2mm, 11.00 mm x 7.40mm, 11.00mm x 30.20mm, 11mm x 22.5mm, 11mm x 7.5mm, 12.70 x 7.60, 12.70mm x 7.60mm, 12.80mm x 30.02mm, 12.80mm x 40.18mm, 12.8mm x 19.9mm, 12.90mm x 9.63mm, 12.90mm x 9.80mm, 122mm x 90mm, 12mm x 14.6mm, 12mm x 15mm, 12mm x 21.9mm, 12mm x 29.2mm, 12mm x 30mm, 12mm x 7.3mm, 13.00mm x 30.50mm, 13.00mm x 7.60mm, 13mm x 10mm, 14.00mm x 15.00mm, 14.00mm x 22.50mm, 14.00mm x 30.00mm, 14.00mm x 7.50mm, 14.4 x 10mm, 14.6 x 12mm, 140mm x 105mm, 14mm x 15mm, 14mm x 30mm, 15 x 12mm, 15.00mm x 14.00mm, 15.00mm x 15.50mm, 15.00mm x 9.80mm, 15.50mm x 15.00mm, 15mm x 15.5mm, 15mm x 18.5mm, 15mm x 19.6mm, 15mm x 27.75mm, 15mm x 29.4mm, 15mm x 37mm, 15mm x 39.2mm, 15mm x 9.25mm, 15mm x 9.8mm, 16.00mm x 18.60mm, 16.00mm x 20.20mm, 16.00mm x 27.90mm, 16.00mm x 30.10mm, 16.00mm x 37.36mm, 16.00mm x 40.50mm, 16.9 x 13mm, 16.90mm x 20.20mm, 16mm x 20.1mm, 17.1mm x 12.4mm, 17.1mm x 50.4mm, 17.5mm x 12.25mm, 17.5mm x 24.5mm, 17.5mm x 25mm, 17.5mm x 36.75mm, 17.5mm x 37.8mm, 17.5mm x 49mm, 17.6mm x 12.4mm, 17.80mm x 12.70mm, 17.80mm x 50.80mm, 17mm x 25mm, 18.5 x 15mm, 18.70mm x 9.80mm, 18.8mm x 23.8mm, 18.90mm x 12.60mm, 19.00 mm x 25.00mm, 19.00mm x 10.06mm, 19.00mm x 12.60mm, 19.00mm x 37.60mm, 19.00mm x 50.00mm, 19.00mm x 50.20mm, 19.00mm x 50.30mm, 19.00mm x 50.3mm, 19.00mm x 9.30mm, 19.6 x 15mm, 19.90mm x 12.80mm, 19mm x 10.06mm, 19mm x 10.6mm, 19mm x 12.5mm, 19mm x 25mm, 19mm x 37.5mm, 19mm x 50.5mm, 19mm x 50mm, 20.00mm x 12.50mm, 20.00mm x 20.00mm, 20.10mm x 16.00mm, 21.10mm x 50.40mm, 21.15mm x 25.10mm, 21.6 x 10mm, 21.9 X 12mm, 22.5 X 11mm, 23.5 x 18.8mm, 24.00mm x 14.80mm, 25.00mm x 16.00mm, 25.00mm x 18.00mm, 25.00mm x 18.60mm, 25.00mm x 19.00mm, 25.70mm x 71.60mm, 25.7mm x 71.6mm, 25.8mm x 35.8mm, 27.50mm x 59.30mm, 27.70mm x 20.00mm, 27.75 x 15mm, 28.00mm x 50.40mm, 28.00mm x 67.20mm, 28.8 x 10mm, 28mm x 16.8mm, 28mm x 33.6mm, 29.2 x 12mm, 29.4 x 15mm, 30 x 12mm, 30.00mm x 14.00mm, 30.16 x 11mm, 30.50mm x 13.00mm, 31.70mm x 31.70mm, 31.80mm x 22.75mm, 32.00mm x 32.00mm, 32.10mm x 10.00mm, 33.00mm x 22.50mm, 33.00mm x 23.00mm, 33mm x 22.4mm, 34mm x 24mm, 35.80mm x 25.80mm, 37 x 15mm, 37.40mm x 23.40mm, 37.90mm x 37.90mm, 39.10mm x 22.80mm, 39.2 x 15mm, 40.8mm x 28.8mm, 44mm x 30.6mm, 46.90 mm x 33.1mm, 47.8mm x 47.8mm, 53.10mm x 37.80mm, 56mm x 38mm, 60.20mm x 60.20mm, 60.60mm x 37.80mm, 69.70mm x 47.80mm, 69.7mm x 47.8mm, 7.00mm x 59.90mm, 7.2 x 10mm, 7.3 x 12mm, 7.5 x 11mm, 9.25 x 15mm, 9.8 x 15mm, 90mm x 62mm, Ø 54.3mm

字高

1.5" | 38.1(mm)

採購條件

MOQ通常 1,000–10,000 顆，依型號分開報價；數量較少也歡迎詢價，價格依數量調整
量產交期6–8 週
樣品交期標準品 2–3 週；客製化標準品 2–6 週；全客製 6–8 週（缺料時 6–8 週）
樣品原則上收費，運費由客戶負擔
全客製開模費USD 3,600–10,000，依設計而定
報價回覆5 個工作天內

品質與售後

  • 量產品質控管 350 ppm 以內
  • ISO 9001:2015 品質管理系統
  • 收到不良品後 5 個工作天內提供 8D 報告
  • PCN／EOL 提前 6 個月通知
  • 保固自收貨起一年
索取報價聯絡業務

以上為一般條件，實際以各報價單為準。
