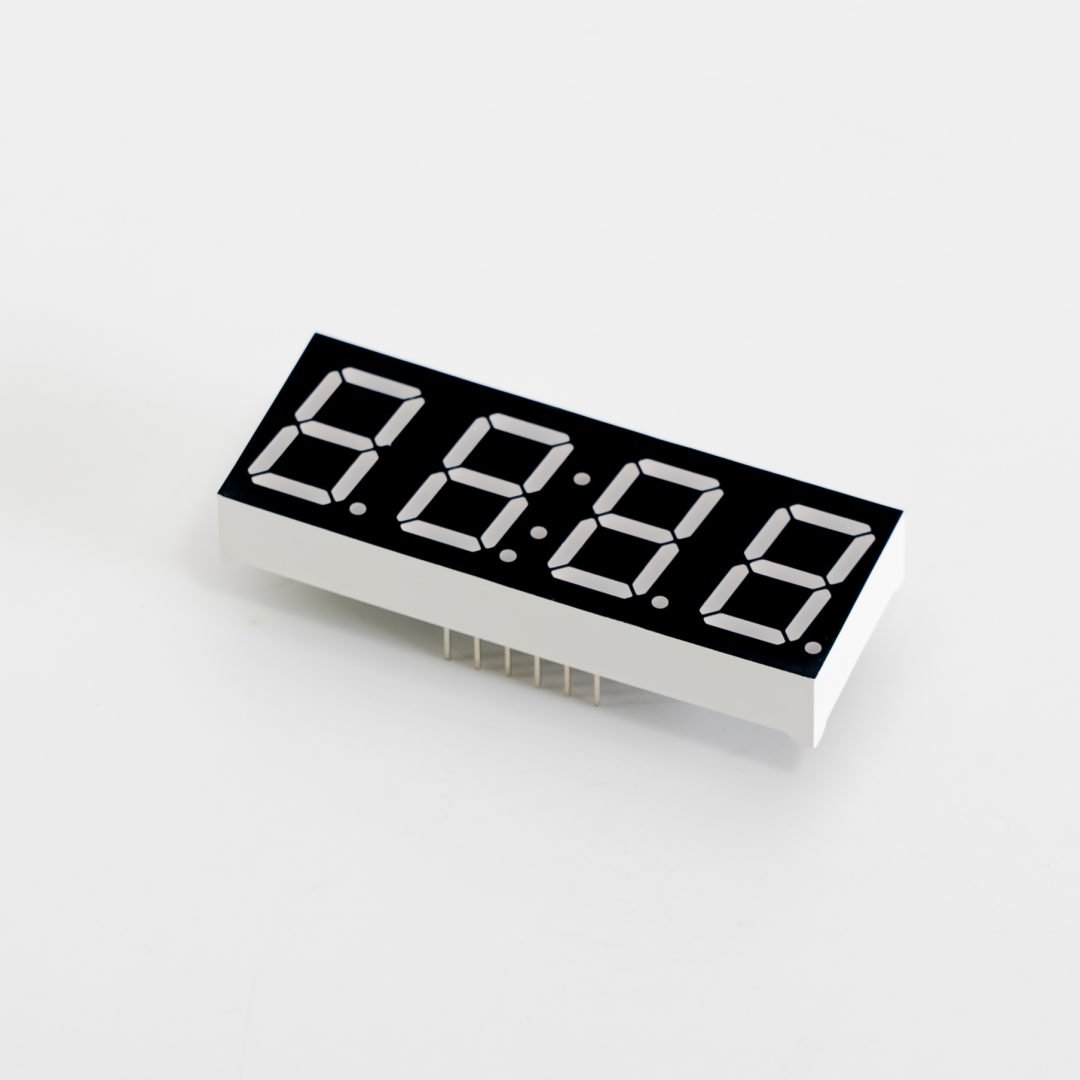

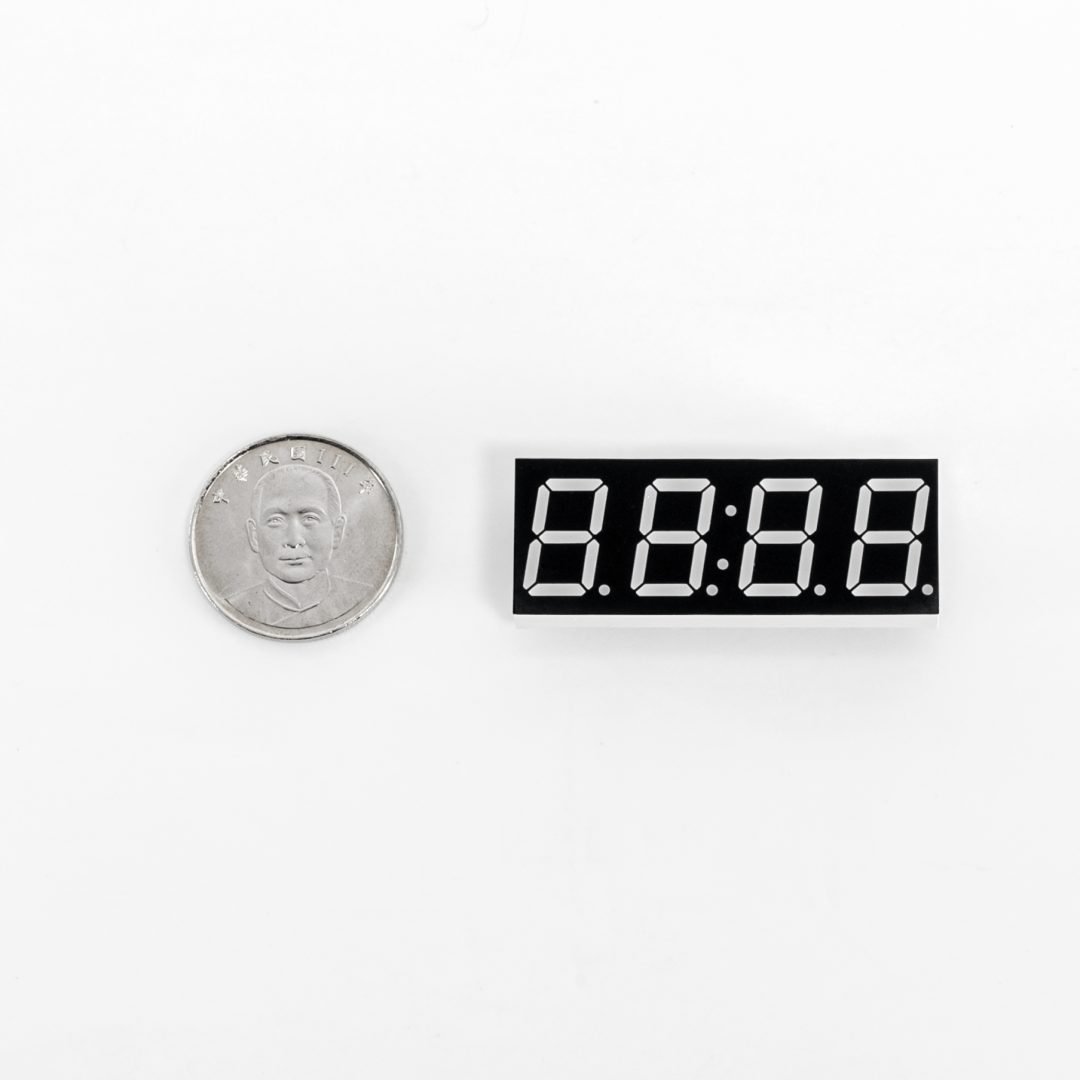

Name: 0.56" 4個8 THT LED 七段顯示器 | 菱形字節
SKU: OPD-Q5620(1)
Availability: InStock

描述

型號	文件	驅動電流	顏色	正向電壓	亮度	主波長/色度座標	詢價
OPD-Q5620(1)LA	Documentation	20(mA)	⋅琥珀	2.0~2.4(V)	60mcd	600-610(nm)	加入詢價車加入詢價車已加入詢價車
OPD-Q5620(1)LB	Documentation	20(mA)	⋅藍	3.0~3.4(V)	60mcd	460-475(nm)	加入詢價車加入詢價車已加入詢價車
OPD-Q5620(1)LE	Documentation	20(mA)	⋅橘紅	2.1~2.4(V)	60mcd	619-629(nm)	加入詢價車加入詢價車已加入詢價車
OPD-Q5620(1)UPG	Documentation	20(mA)	⋅綠	2.8-3.2(V)	250mcd	515-530(nm)	加入詢價車加入詢價車已加入詢價車
OPD-Q5620(1)LR	Documentation	20(mA)	⋅紅	2.1~2.4(V)	20mcd	635-648(nm)	加入詢價車加入詢價車已加入詢價車
OPD-Q5620(1)W	Documentation	5(mA)	⋅白	2.9~3.2(V)	180mcd	(X/Y)=(0.285/0.275)	加入詢價車加入詢價車已加入詢價車
OPD-Q5620(1)LY	Documentation	20(mA)	⋅黃	2.1~2.4(V)	60mcd	585-595(nm)	加入詢價車加入詢價車已加入詢價車
OPD-Q5620(1)YG	Documentation	20(mA)	⋅黃綠	2.1~2.4(V)	20mcd	567-576(nm)	加入詢價車加入詢價車已加入詢價車

額外資訊

發光色	橘紅, 琥珀, 白, 紅, 綠, 藍, 黃, 黃綠
驅動電流	20(mA), 5(mA)
正向電壓	1.8-2.2V, 1.8V-2.2V, 10.0-12.0V, 10.0V-12.0V, 10.5-12V, 10.5V-12.0V, 10.8V-13.2V, 11.2-12.8V, 11.2V-12.8V, 12.0-12.8V, 12.0-13.2V, 12.0-14.4V, 12.0V-12.8V, 12.0V-13.2V, 12.6-14.4V, 12.6V-14.4V, 12.6V-16.1V, 12V-14.4V, 14-16V, 14.0-16.8V, 14.0V-16.0V, 14.0V-16.8V, 14.7-16.8V, 14.7V-16.8V, 15.0-16.0V, 15.0V-16.0V, 16.8-19.2V, 16.8V-19.2V, 18.0-19.2V, 18V-19.2V, 2.0-2.4(V), 2.0-2.4V, 2.0-2.5V, 2.0~2.4(V), 2.0V-2.4V, 2.0V-2.6V, 2.1-2.5V, 2.1~2.4(V), 2.1V-2.4V, 2.1V-2.6V, 2.2-2.5V, 2.2-2.6V, 2.5V-3.6V, 2.8-3.2(V), 2.8V-3.2V, 2.9~3.2(V), 2.9V-3.2V, 21.0-22.4V, 21.0V-22.4V, 3.0~3.4(V), 3.0V-3.3V, 3.0V-3.4V, 3.2-3.6(V), 3.2-3.6V, 3.2-3.8(V), 3.2-3.8V, 3.2V-4.0V, 3.6V-4.4V, 4.0-4.8(V), 4.0-4.8V, 4.0V-4.8V, 4.2-4.8V, 4.2V-4.8V, 5.4V-6.6V, 5.6-6.4V, 5.6V-6.4V, 5.8-6.4(V), 5.8-6.4V, 6.0-6.8(V), 6.0-6.8V, 6.0-7.2V, 6.0V-6.8V, 6.0V-7.2V, 6.3-7.2V, 6.3V-7.2V, 7.2V-8.8V, 7.2V-9.2V, 8.0-9.6V, 8.0V-9.6V, 8.4-9.6V, 8.4V-9.6V, 9.0-10.2V, 9.0V-10.2V, 9.0V-11.0V
Luminosity(Typ.)	1000mcd, 100mcd, 10mcd, 110mcd, 11mcd, 12.5mcd, 120mcd, 12mcd, 13.7mcd, 137.5mcd, 1400mcd, 140mcd, 145mcd, 14mcd, 15mcd, 16000mcd, 160mcd, 16mcd, 1800mcd, 180mcd, 190mcd, 195mcd, 198mcd, 200mcd, 205mcd, 207.5mcd, 20mcd, 210mcd, 23mcd, 240mcd, 25000mcd, 250mcd, 25mcd, 2750mcd, 28.5mcd, 280mcd, 28mcd, 300mcd, 30mcd, 312.5mcd, 32.5mcd, 35mcd, 37.5mcd, 38mcd, 3900mcd, 3mcd, 4000mcd, 400mcd, 40mcd, 47.5mcd, 475mcd, 500mcd, 50mcd, 52.5mcd, 525mcd, 550mcd, 55mcd, 57.5mcd, 5mcd, 60mcd, 62.5mcd, 6480mcd, 700mcd, 70mcd, 72.5mcd, 72.8mcd, 80mcd, 8mcd, 900mcd, 90mcd, 97.5mcd, 9mcd, test
Dominant Wavelength / Chromaticity Coordinate	470nm, 522nm, 593nm, 612nm, 632nm, 650nm, (X/Y)=(0.285/0.275), 400nm, 460-474(nm), 460-475(nm), 464-474(nm), 464~474(nm), 465nm, 466-474(nm), 468nm, 472nm, 500nm, 505nm, 515-530(nm), 515~530(nm), 520nm, 525nm, 527nm, 530nm, 567-576(nm), 567~576(nm), 568nm, 572nm, 573nm, 585-595(nm), 585~595(nm), 589nm, 590nm, 600-610(nm), 600-614(nm), 600~614(nm), 601-613(nm), 601-614(nm), 606-630(nm), 616-630nm, 619-629(nm), 619~629(nm), 635-648(nm), 635~648(nm), 645nm, 655nm, 660nm, 700nm, x-0-265, x-0-29, X: 0.265 Y:0.25, X: 0.28 Y: 0.29, X: 0.285, X: 0.285 Y: 0.275, X: 0.285 Y:0.275, X: 0.29 Y:0.285, X: 0.31 Y: 0.32, X:0.285 Y:0.275, X:0.29 Y: 0.28, Y: 0.275, Y)=(0.285
封裝方式	通孔銲接元件 (THT) / 雙排腳銲接元件 (DIP)
顯示器種類	七段顯示器
Number of Characters	4
Display Thickness	1, 10.00mm, 10.5mm, 11mm, 12.5mm, 12mm, 13mm, 15mcd, 15mm, 16.2mm, 18.70mm x 9.80mm, 25.00mm x 19.00mm, 3.75mm, 3.85mm, 3.8mm, 30.50mm x 13.00mm, 3mm, 4.05mm, 5.10mm, 5.80mm, 6.00mm, 6.10, 6.10mm, 7.00mm, 7.20mm, 7.50mm, 7mm, 8.00mm, 8.30mm, 8.40mm, 8.50mm, 9mm, test
Display WxL	10.00mm x 15.00mm, 10.00mm x 22.60mm, 10.00mm x 32.10mm, 109.7mm x 70mm, 10mm x 14.4mm, 10mm x 21.6mm, 10mm x 28.8mm, 10mm x 7.2mm, 11.00mm x 30.20mm, 11mm x 22.5mm, 11mm x 7.5mm, 12.70 x 7.60, 12.70mm x 7.60mm, 12.80mm x 30.02mm, 12.8mm x 19.9mm, 122mm x 90mm, 12mm x 14.6mm, 12mm x 15mm, 12mm x 21.9mm, 12mm x 29.2mm, 12mm x 30mm, 12mm x 7.3mm, 13.00mm x 30.50mm, 13mm x 10mm, 14.00mm x 15.00mm, 14.00mm x 22.50mm, 14.00mm x 30.00mm, 14.00mm x 7.50mm, 14.4 x 10mm, 14.6 x 12mm, 140mm x 105mm, 14mm x 15mm, 15 x 12mm, 15.00mm x 14.00mm, 15.00mm x 15.50mm, 15.50mm x 15.00mm, 15mm x 15.5mm, 15mm x 18.5mm, 15mm x 19.6mm, 15mm x 27.75mm, 15mm x 29.4mm, 15mm x 37mm, 15mm x 39.2mm, 15mm x 9.25mm, 15mm x 9.8mm, 16.00mm x 30.10mm, 16mm x 20.1mm, 17.1mm x 12.4mm, 17.5mm x 12.25mm, 17.5mm x 24.5mm, 17.5mm x 36.75mm, 17.5mm x 49mm, 17.6mm x 12.4mm, 18.5 x 15mm, 18.70mm x 9.80mm, 19.00 mm x 25.00mm, 19.00mm x 12.60mm, 19.00mm x 37.60mm, 19.00mm x 50.00mm, 19.00mm x 50.20mm, 19.6 x 15mm, 19.90mm x 12.80mm, 19mm x 12.5mm, 19mm x 25mm, 19mm x 37.5mm, 20.10mm x 16.00mm, 21.6 x 10mm, 21.9 X 12mm, 22.5 X 11mm, 25.00mm x 18.00mm, 25.00mm x 19.00mm, 25.8mm x 35.8mm, 27.50mm x 59.30mm, 27.70mm x 20.00mm, 27.75 x 15mm, 28.00mm x 50.40mm, 28.00mm x 67.20mm, 28.8 x 10mm, 28mm x 16.8mm, 28mm x 33.6mm, 29.2 x 12mm, 29.4 x 15mm, 30 x 12mm, 30.00mm x 14.00mm, 30.16 x 11mm, 30.50mm x 13.00mm, 32.10mm x 10.00mm, 33mm x 22.4mm, 34mm x 24mm, 35.80mm x 25.80mm, 37 x 15mm, 39.2 x 15mm, 40.8mm x 28.8mm, 44mm x 30.6mm, 56mm x 38mm, 69.7mm x 47.8mm, 7.2 x 10mm, 7.3 x 12mm, 7.5 x 11mm, 9.25 x 15mm, 9.8 x 15mm, 90mm x 62mm, test
字高
