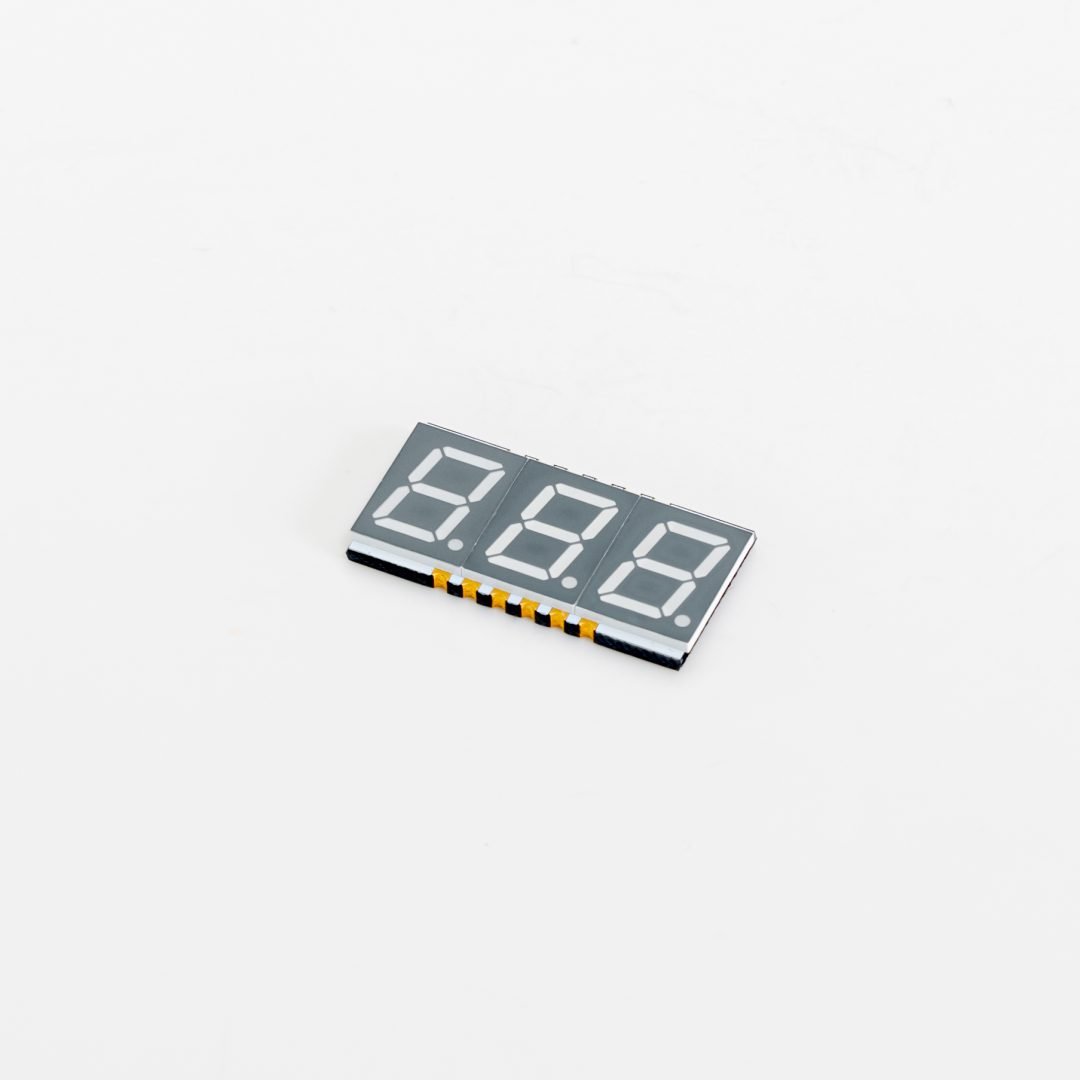

0.39" 三位數 超薄型 SMD LED 七段顯示器 | 菱形字節 | 顯示器厚度 2.6mm

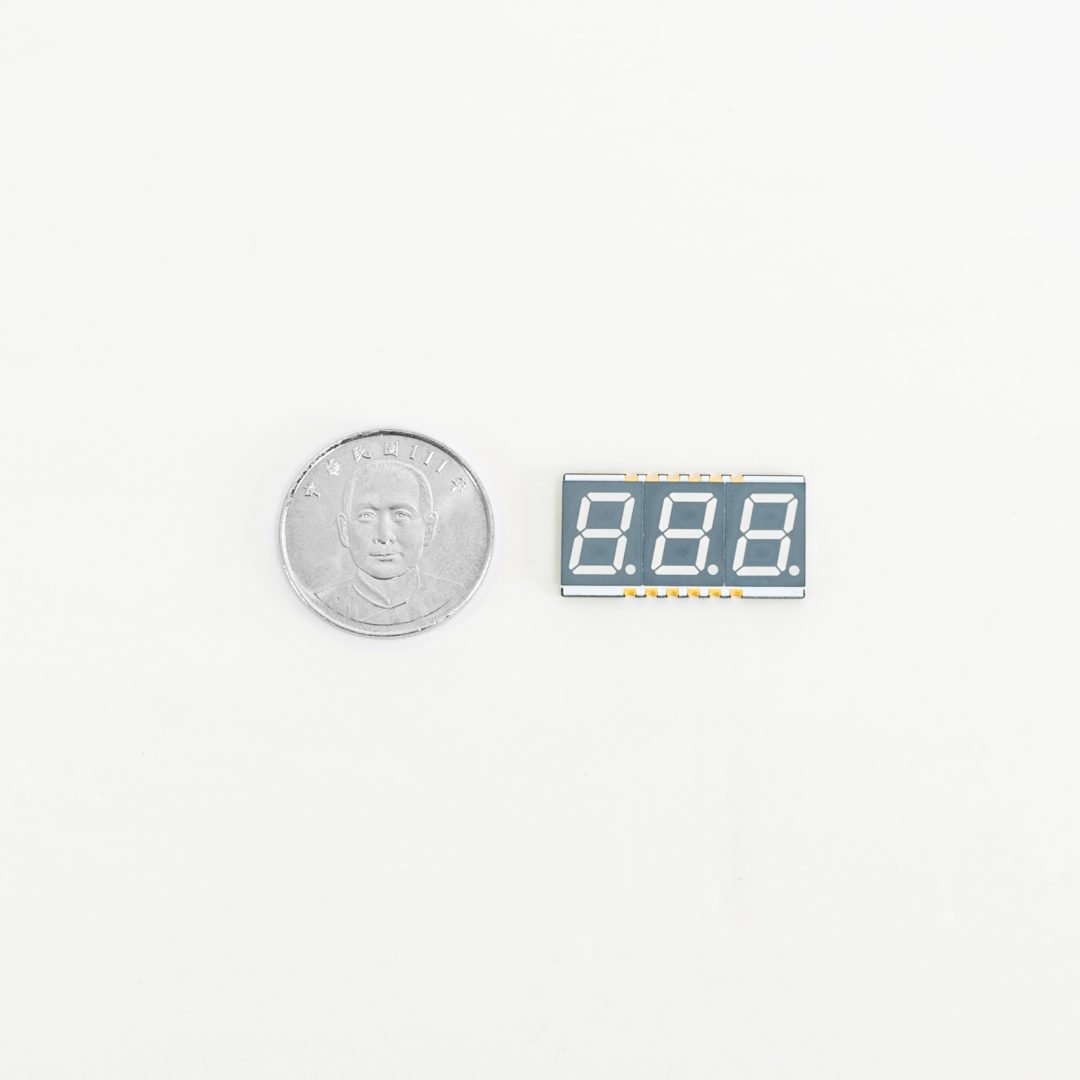

0.39" 三位數 超薄型 SMD LED 七段顯示器 | 菱形字節 | 顯示器厚度 2.6mm - 產品圖 2

0.39″ 三位數 超薄型 SMD LED 七段顯示器 | 菱形字節 | 顯示器厚度 2.6mm

貨號: OPS-T3920(1)xx-STT(R)-1.0-G(B)W 分類:

Filters 排序
清除 Apply
字元高度:
0.39" | 10.00(mm)
顯示器種類:
七段顯示器
封裝方式:
超薄型表面貼裝元件(Super Thin SMD)
顯示器厚度:
2.10mm
顯示器長寬:
29.4 x 15mm
字元數目:
3
選擇料號加入詢價聯絡業務

描述

>>向右捲動看更多資訊
Filters 排序
清除 Apply
型號
文件
驅動電流
顏色
正向電壓
亮度
主波長/色度座標
數量
詢價
OPS-T3920(1)LA-STT(R)-1.0-G(B)W
Documentation
20mA
⋅琥珀
2.0V
14mcd
612nm
加入詢價車 加入詢價車 已加入詢價車
OPS-T3920(1)SB-STT(R)-1.0-G(B)W
Documentation
20mA
⋅藍
3.0V
30mcd
470nm
加入詢價車 加入詢價車 已加入詢價車
OPS-T3920(1)SPG-STT(R)-1.0-G(B)W
Documentation
20mA
⋅綠
3.0V
220mcd
525nm
加入詢價車 加入詢價車 已加入詢價車
OPS-T3920(1)YG-STT(R)-1.0-G(B)W
Documentation
20mA
⋅黃綠
2.1V
7mcd
570nm
加入詢價車 加入詢價車 已加入詢價車
OPS-T3920(1)LY-STT(R)-1.0-G(B)W
Documentation
20mA
⋅黃
2.1V
25mcd
590nm
加入詢價車 加入詢價車 已加入詢價車
OPS-T3920(1)LE-STT(R)-1.0-G(B)W
Documentation
20mA
⋅橘紅
2.1V
30mcd
625nm
加入詢價車 加入詢價車 已加入詢價車

常見問題

0.39″ Triple Digit Super Thin SMD LED 7-Segment Display 的尺寸是多少？

外形為 29.4 x 15 mm、厚 2.10 mm；字高 0.39" l 10.00 mm、3 位數。

可以訂購哪些顏色版本？

共 6 種：琥珀色、藍色、純綠色、黃綠色、黃色、橘紅色。

電氣特性如何？

電氣規格：全系列驅動電流 20 mA；順向電壓：2.0 V（琥珀色）；3.0 V（藍色、純綠色）；2.1 V（黃綠色、黃色、橘紅色）。

各顏色亮度多少？

亮度規格（依顏色）：14 mcd（琥珀色）；30 mcd（藍色、橘紅色）；220 mcd（純綠色）；7 mcd（黃綠色）；25 mcd（黃色）。

這款有多薄？

厚度僅 2.10 mm，Super Thin 超薄 SMD 封裝，比一般 SMD 或插件模組更薄。

額外資訊

發光色

橘紅, 琥珀, 白, 紅, 綠, 藍, 黃, 黃綠

驅動電流

100(mA), 10mA, 120(mA), 2(mA), 20(mA), 20mA, 2mA, 30mA, 5(mA), 5mA, 60mA, LED Driver control, R=10ma|PG=B=2ma, Red (5mA), Pure Green (2mA), Blue (2mA), Red: 5mA, Green: 2mA, Blue: 2mA

正向電壓

1.1-1.7(V), 1.2~1.8(V), 1.8-2.2V, 1.8-2.4(V), 1.80V, 1.8V-2.2V, 1.90V, 10.0-12.0V, 10.0V-12.0V, 10.5-12V, 10.5V-12.0V, 10.8V-13.2V, 11.2-12.8(V), 11.2-12.8V, 11.2V-12.8V, 11.6-12.8(V), 12.0-12.8V, 12.0-13.2V, 12.0-14.4V, 12.0V-12.8V, 12.0V-13.2V, 12.6-14.4V, 12.6V-14.4V, 12.6V-16.1V, 12V-14.4V, 14-16V, 14.0-16.8V, 14.0V-16.0V, 14.0V-16.8V, 14.5-16(V), 14.7-16.8V, 14.7V-16.8V, 15.0-16.0V, 15.0V-16.0V, 16.8-19.2V, 16.8V-19.2V, 18.0-19.2V, 18V-19.2V, 2.0-2.4(V), 2.0-2.4V, 2.0-2.5V, 2.0-2.6(V), 2.0~2.4(V), 2.0~2.6(V), 2.0V, 2.0V-2.4V, 2.0V-2.6V, 2.1, 2.1-2.5(V), 2.1-2.5V, 2.1~2.4(V), 2.1~2.6(V), 2.1V, 2.1V-2.4V, 2.1V-2.6V, 2.2-2.4(V), 2.2-2.5V, 2.2-2.6V, 2.5-3.1(V), 2.50V, 2.5V-3.6V, 2.6-3.2(V), 2.60V, 2.8-3.1(V), 2.8-3.2(V), 2.80V, 2.85V, 2.8V-3.2V, 2.9-3.25(V), 2.9~3.2(V), 2.9~3.5(V), 2.9~3.7(V), 2.9V, 2.9V-3.2V, 20.3-22.4(V), 21.0-22.4V, 21.0V-22.4V, 3.0~3.4(V), 3.0V, 3.0V-3.3V, 3.0V-3.4V, 3.1-3.7(V, 3.1-3.7(V), 3.1-3.9(V), 3.2-3.5(V, 3.2-3.5(V), 3.2-3.6(V), 3.2-3.6V, 3.2-3.8(V), 3.2-3.8V, 3.2~3.4(V), 3.2~3.7(V), 3.2~3.9(V), 3.2V-4.0V, 3.3-3.9(V), 3.3~3.7(V), 3.3~3.9(V), 3.3V, 3.6V-4.4V, 3.7-4.1(V), 3V, 4.0-4.8(V), 4.0-4.8V, 4.0V-4.8V, 4.2-4.8(V), 4.2-4.8V, 4.2V-4.8V, 5.4V-6.6V, 5.6-6.4(V), 5.6-6.4V, 5.6V-6.4V, 5.8-6.4(V), 5.8-6.4V, 6.0-6.8(V), 6.0-6.8V, 6.0-7.2V, 6.0V-6.8V, 6.0V-7.2V, 6.3-7.2V, 6.3V-7.2V, 7.2V-8.8V, 7.2V-9.2V, 8.0-9.6V, 8.0V-9.6V, 8.4-9.6V, 8.4V-9.6V, 8.7-9.6(V), 9.0-10.2V, 9.0V-10.2V, 9.0V-11.0V, All Supply voltage=5V, Blue:2.7-3.9V, Red:1.6-2.0V, Follow spec., Green: 2.8-3.2V, Red: 2.1-2.4V, Green:2.7-3.9V, Red:1.6-2.0V, R=2.1V|G=B=2.8V, R=2.2V|PG=2.9V|B=3.0V, Red: 1.5V-2.7V, Green: 2.0V-3.3V, Blue: 2.0V-3.3V, Red: 1.5V-2.7V, Green: 2.1V-3.3V, Blue: 2.3V-3.5V, Red: 1.9-2.4V, Pure Green: 2.5-3.1V, Blue: 2.5-3.1V, Red: 1.9V, Green: 2.5V, Blue: 2.5V, Red:2V Pure Green:3V Blue:3V, RGB:4.5-5.5V, White:2.6-3.2V, Red:1.6-2.0V, Yellow:1.6-2.0V, Blue:2.7-3.9V, Yellow:1.6-2.0V, Green:2.7-3.9V, Yellow:1.6-2.0V, Red:1.6-2.0V

Luminosity(Typ.)

0.85mW/sr, 1-5 (mW/sr), 1.3mW/sr, 1000mcd, 100mcd, 102mcd, 107.5mcd, 10mcd, 11.25mcd, 1100mcd, 110mcd, 112.5mcd, 1125mcd, 11mcd, 12.5mcd, 1200mcd, 120mcd, 12mcd, 13.7mcd, 130mcd, 137.5mcd, 1400mcd, 140mcd, 145mcd, 14mcd, 150 mcd, 1500mcd, 150mcd, 15mcd, 16000mcd, 160mcd, 16mcd, 170mcd, 18.5mcd, 1800mcd, 180mcd, 18mcd, 1900mcd, 190mcd, 195mcd, 198mcd, 2000mcd, 200mcd, 205mcd, 207.5mcd, 20mcd, 210mcd, 2200mcd, 220mcd, 2250mcd, 230mcd, 23mcd, 240mcd, 25000mcd, 2500mcd, 250mcd, 2520mcd, 25mcd, 265mcd, 2685mcd, 2750mcd, 28.5mcd, 2800mcd, 280mcd, 285mcd, 28mcd, 3.95mcd, 3000mcd, 300mcd, 30mcd, 312.5mcd, 32.5mcd, 320mcd, 33.5mcd, 330mcd, 350mcd, 35mcd, 360mcd, 37.5mcd, 3750mcd, 37mcd, 3800mcd, 38mcd, 3900mcd, 3mcd, 4000mcd, 400mcd, 40mcd, 420mcd, 425mcd, 440mcd, 450mcd, 45mcd, 47.5mcd, 475mcd, 47mcd, 500mcd, 50mcd, 51.5mcd, 52.5mcd, 520mcd, 525mcd, 530mcd, 550mcd, 55mcd, 560mcd, 57.5mcd, 5mcd, 60mcd, 62.5mcd, 6480mcd, 6mcd, 7.15mcd, 7000mcd, 700mcd, 70mcd, 71.5mcd, 715mcd, 72.5mcd, 72.8mcd, 770mcd, 7mcd, 80mcd, 8mcd, 900mcd, 90mcd, 97.5mcd, 9mcd, Blue:192mcd, Red:425mcd, Green: 1400mcd, Red: 1000mcd, Green: 400mcd, Red: 300mcd, Green: 700mcd, Red: 500mcd, Green:250mcd, Red:425mcd, R=112mcd|G=225mcd|B=72mcd, R=165mcd|PG=440mcd|B=85mcd, R=32mcd|PG=46mcd|B=8mcd, R=65mcd|G=85mcd|B=20mcd, Red: 13mcd, Green: 17mcd, Blue: 3mcd, Red: 32mcd, Green: 46mcd, Blue: 8mcd, Red: 32mcd, Pure Green: 46mcd, Blue: 8mcd, Red: 60mcd, Green: 150mcd, Blue: 30mcd, Red: 80-160mcd, Green: 180-260mcd, Blue: 30-70mcd, Red:66mcd, Green:101mcd, Blue:31mcd, White:2000mcd, Red:425mcd, Yellow Green: 25mcd, Red: 180mcd, Yellow Green: 35mcd, Red: 200mcd, Yellow Green: 60mcd, Red: 400mcd, Yellow Green:25mcd, Red : 140mcd, Yellow:336mcd, Blue:192mcd, Yellow:336mcd, Green:250mcd, Yellow:336mcd, Red:425mcd

Dominant Wavelength / Chromaticity Coordinate

(X/Y)=(0.3/0.2963), 420nm, 460-470(nm), 464nm, 470nm, 517nm, 522nm, 5250K, 529nm, 531nm, 570nm, 571nm, 588nm, 591nm, 593nm, 594nm, 600-612(nm), 605nm, 610nm, 611nm, 612nm, 621nm, 624nm, 625nm, 630nm, 632nm, 635-646(nm), 639nm, 640nm, 650nm, 850nm, 940nm, Blue:470nm, Red:624nm, Green: 515-530nm, Red: 618-628nm, Green:529nm, Red:624nm, R=621nm|PG=522nm|B=470nm, R=621nm|PG=530nm|B=469nm, R=622nm|PG=525nm|B=466nm, R=624mcd|PG=523mcd|b=470mcd, R=624nm|PG=526nm|B=470nm, Red: 618-625nm, Green: 520-535nm, Blue: 460-474nm, Red: 620nm, Green: 533nm, Blue: 470nm, Red: 621nm (Typ.) Pure Green: 530nm (Typ.) Blue: 469nm (Typ.), Red: 621nm, Green: 530nm, Blue: 469nm, Red: 622nm, Green: 525nm, Blue: 466nm, Red: 622nm, Green: 533nm, Blue: 470nm, Red:618-625nm, Green:518-535nm, Blue:460-474nm, White:0.265/0.275, Red:624nm, X: 0.265, Y: 0.25, X: 0.285 Y:0.265, X: 0.29 Y: 0.2825, X: 0.30 Y: 0.296, X: 0.315 Y: 0.315, X: 0.433 Y: 0.393, X:0.27 Y:0.255, X:0.3 Y:0.2963, X:0.31 :0.31, X:0.32 Y:0.32, Yellow Green: 567-576nm, Red: 619-629nm, Yellow:589nm, Blue:470nm, Yellow:589nm, Green:529nm, Yellow:589nm, Red:624nm, (X/Y)=(0.285/0.275), 400nm, 460-474(nm), 460-475(nm), 464-474(nm), 464~474(nm), 465nm, 466-474(nm), 468nm, 472nm, 500nm, 505nm, 515-530(nm), 515~530(nm), 520nm, 525nm, 527nm, 530nm, 567-576(nm), 567~576(nm), 568nm, 572nm, 573nm, 585-595(nm), 585~595(nm), 589nm, 590nm, 600-610(nm), 600-614(nm), 600~614(nm), 601-613(nm), 601-614(nm), 606-630(nm), 616-630nm, 619-629(nm), 619~629(nm), 635-648(nm), 635~648(nm), 645nm, 655nm, 660nm, 700nm, x-0-265, x-0-29, X: 0.265 Y:0.25, X: 0.28 Y: 0.29, X: 0.285, X: 0.285 Y: 0.275, X: 0.285 Y:0.275, X: 0.29 Y:0.285, X: 0.31 Y: 0.32, X:0.285 Y:0.275, X:0.29 Y: 0.28, Y: 0.275, Y)=(0.285

封裝方式

超薄型表面貼裝元件(Super Thin SMD)

顯示器種類

七段顯示器

Number of Characters

3

Display Thickness

1, 10.00mm, 10.20mm, 10.5mm, 11mm, 12.00mm, 12.50mm, 12.5mm, 12mm, 13.00mm, 13mm, 14.00mm, 15mcd, 15mm, 16.2mm, 18.70mm x 9.80mm, 2.10mm, 2.30mm, 2.5mm, 2.60mm, 25.00mm x 19.00mm, 3.10mm, 3.30mm, 3.75mm, 3.85mm, 3.8mm, 30.50mm x 13.00mm, 3mm, 4.05mm, 5.10mm, 5.4mm, 5.80mm, 5.90mm, 6.00mm, 6.10, 6.10mm, 6.2mm, 6.30mm, 6.36mm, 6.50mm, 6.5mm, 6.8mm, 6.9mm, 7.00mm, 7.20mm, 7.50mm, 7.70mm, 7.80mm, 7.90mm, 7mm, 8.00mm, 8.30mm, 8.40mm, 8.50mm, 8.80mm, 9.00mm, 9.20mm, 9.50mm, 9mm

Display WxL

10.00mm x 15.00mm, 10.00mm x 22.60mm, 10.00mm x 32.10mm, 10.10mm x 25.50mm, 10.10mm x 30.40mm, 10.20mm x 25.60mm, 106.50mm x 76.00mm, 109.7mm x 70mm, 10mm x 10mm, 10mm x 14.4mm, 10mm x 21.6mm, 10mm x 28.8mm, 10mm x 7.2mm, 11.00 mm x 7.40mm, 11.00mm x 30.20mm, 11mm x 22.5mm, 11mm x 7.5mm, 12.70 x 7.60, 12.70mm x 7.60mm, 12.80mm x 30.02mm, 12.80mm x 40.18mm, 12.8mm x 19.9mm, 12.90mm x 9.63mm, 12.90mm x 9.80mm, 122mm x 90mm, 12mm x 14.6mm, 12mm x 15mm, 12mm x 21.9mm, 12mm x 29.2mm, 12mm x 30mm, 12mm x 32.5mm, 12mm x 7.3mm, 13.00mm x 30.50mm, 13.00mm x 7.60mm, 13mm x 10mm, 14.00mm x 15.00mm, 14.00mm x 22.50mm, 14.00mm x 30.00mm, 14.00mm x 7.50mm, 14.4 x 10mm, 14.6 x 12mm, 14.9mm x 11mm, 140mm x 105mm, 14mm x 15mm, 14mm x 30mm, 15 x 12mm, 15.00mm x 14.00mm, 15.00mm x 15.50mm, 15.00mm x 9.80mm, 15.2mm x 13mm, 15.50mm x 15.00mm, 15mm x 15.5mm, 15mm x 15mm, 15mm x 18.5mm, 15mm x 19.6mm, 15mm x 27.75mm, 15mm x 29.4mm, 15mm x 37mm, 15mm x 39.2mm, 15mm x 9.25mm, 15mm x 9.8mm, 16.00mm x 18.60mm, 16.00mm x 20.20mm, 16.00mm x 27.90mm, 16.00mm x 30.10mm, 16.00mm x 37.36mm, 16.00mm x 40.50mm, 16.9 x 13mm, 16.90mm x 20.20mm, 16mm x 20.1mm, 16mm x 9.8mm, 16mm x 9.mm, 17.1mm x 12.4mm, 17.1mm x 50.4mm, 17.5mm x 12.25mm, 17.5mm x 24.5mm, 17.5mm x 25mm, 17.5mm x 36.75mm, 17.5mm x 37.8mm, 17.5mm x 49mm, 17.6mm x 12.4mm, 17.80mm x 12.70mm, 17.80mm x 50.80mm, 17mm x 25mm, 18.5 x 15mm, 18.70mm x 9.80mm, 18.8mm x 23.8mm, 18.90mm x 12.60mm, 19.00 mm x 25.00mm, 19.00mm x 10.06mm, 19.00mm x 12.60mm, 19.00mm x 37.60mm, 19.00mm x 50.00mm, 19.00mm x 50.20mm, 19.00mm x 50.30mm, 19.00mm x 50.3mm, 19.00mm x 9.30mm, 19.6 x 15mm, 19.90mm x 12.80mm, 19.9mm x 16mm, 19mm x 10.06mm, 19mm x 10.6mm, 19mm x 12.5mm, 19mm x 25mm, 19mm x 37.5mm, 19mm x 50.5mm, 19mm x 50mm, 20.00mm x 12.50mm, 20.00mm x 20.00mm, 20.10mm x 16.00mm, 21.10mm x 50.40mm, 21.15mm x 25.10mm, 21.6 x 10mm, 21.9 X 12mm, 22.4mm x 11mm, 22.5 X 11mm, 22.8mm x 13mm, 23.5 x 18.8mm, 24.00mm x 14.80mm, 25.00mm x 16.00mm, 25.00mm x 18.00mm, 25.00mm x 18.60mm, 25.00mm x 19.00mm, 25.1mm x 20mm, 25.70mm x 71.60mm, 25.7mm x 71.6mm, 25.8mm x 35.8mm, 27.50mm x 59.30mm, 27.70mm x 20.00mm, 27.75 x 15mm, 28.00mm x 50.40mm, 28.00mm x 67.20mm, 28.8 x 10mm, 28mm x 16.8mm, 28mm x 33.6mm, 29.2 x 12mm, 29.4 x 15mm, 29.4mm x 15mm, 29.75mm x 24mm, 30 x 12mm, 30.00mm x 14.00mm, 30.16 x 11mm, 30.50mm x 13.00mm, 30mm x 16mm, 31.70mm x 31.70mm, 31.80mm x 22.75mm, 32.00mm x 32.00mm, 32.10mm x 10.00mm, 33.00mm x 22.50mm, 33.00mm x 23.00mm, 33mm x 22.4mm, 34mm x 24mm, 35.80mm x 25.80mm, 37 x 15mm, 37.40mm x 23.40mm, 37.90mm x 37.90mm, 39.10mm x 22.80mm, 39.2 x 15mm, 40.8mm x 28.8mm, 44mm x 30.6mm, 46.90 mm x 33.1mm, 47.8mm x 47.8mm, 53.10mm x 37.80mm, 56mm x 38mm, 60.20mm x 60.20mm, 60.60mm x 37.80mm, 69.70mm x 47.80mm, 69.7mm x 47.8mm, 7.00mm x 59.90mm, 7.2 x 10mm, 7.3 x 12mm, 7.5 x 11mm, 9.25 x 15mm, 9.8 x 15mm, 90.00mm x 62.40mm, 90mm x 62mm, Ø 54.3mm

字高

0.39" | 10.00(mm)

採購條件

MOQ通常 1,000–10,000 顆，依型號分開報價
量產交期6–8 週
樣品交期標準品 2–3 週；客製化標準品 2–6 週；全客製 6–8 週（缺料時 6–8 週）
樣品原則上收費，運費由客戶負擔
全客製開模費USD 3,600–10,000，依設計而定
報價回覆5 個工作天內

品質與售後

  • 量產品質控管 350 ppm 以內
  • ISO 9001:2015 品質管理系統
  • 收到不良品後 5 個工作天內提供 8D 報告
  • PCN／EOL 提前 6 個月通知
  • 保固自收貨起一年
索取報價聯絡業務

以上為一般條件，實際以各報價單為準。
