0.2″ 雙位數超薄型 SMD LED 七段顯示器 | 菱形字節

貨號: OPS-D2040(1)xx-STT(R)-1.5-G(B)W 分類: LED 顯示器

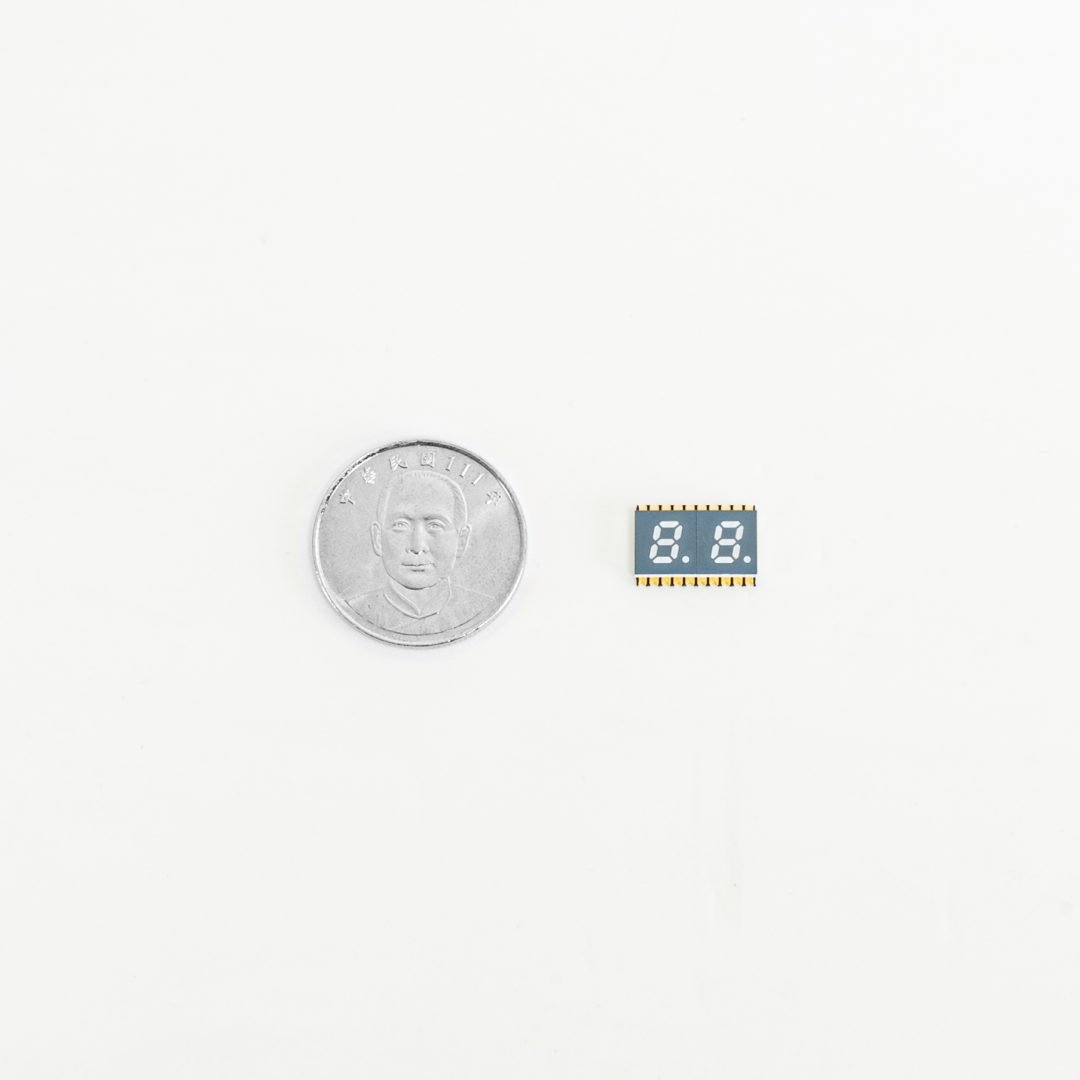

字元高度: 0.2″ \| 5.08(mm) 顯示器種類: 七段顯示器封裝方式: 超薄型表面貼裝元件(Super Thin SMD) 顯示器厚度: 2.30mm 顯示器長寬: 14.9mm x 11mm 字元數目: 2

描述
額外資訊

描述

型號	文件	驅動電流	顏色	正向電壓	亮度	主波長/色度座標	詢價
OPS-D2040(1)W3-STT(R)-1.5-G(B)W	Documentation	5mA	⋅白	3.0V	130mcd	X: 0.265 Y:0.25	加入詢價車加入詢價車已加入詢價車
OPS-D2040(1)SB-STT(R)-1.5-G(B)W	Documentation	20mA	⋅藍	3.0V	30mcd	470nm	加入詢價車加入詢價車已加入詢價車
OPS-D2040(1)SPG-STT(R)-1.5-G(B)W	Documentation	20mA	⋅綠	3.0V	220mcd	525nm	加入詢價車加入詢價車已加入詢價車
OPS-D2040(1)SYG-STT(R)-1.5-G(B)W	Documentation	20mA	⋅黃綠	2.1V	8mcd	570nm	加入詢價車加入詢價車已加入詢價車
OPS-D2040(1)SY-STT(R)-1.5-G(B)W	Documentation	20mA	⋅黃	2.1V	25mcd	590nm	加入詢價車加入詢價車已加入詢價車
OPS-D2040(1)SA-STT(R)-1.5-G(B)W	Documentation	20mA	⋅琥珀	2.0V	25mcd	610nm	加入詢價車加入詢價車已加入詢價車
OPS-D2040(1)SE-STT(R)-1.5-G(B)W	Documentation	20mA	⋅橘紅	2.1V	30mcd	625nm	加入詢價車加入詢價車已加入詢價車
OPS-D2040(1)LR-STT(R)-1.5-G(B)W	Documentation	20mA	⋅紅	2.1V	5mcd	640nm	加入詢價車加入詢價車已加入詢價車

常見問題

模組的機構規格？

模組尺寸 14.9 mm x 11 mm，厚度 2.30 mm，字高 0.2" (5.08 mm)，2 位數。

有哪些發光色可選？

本系列共有 8 色：白光、藍色、純綠色、黃綠色、黃色、琥珀色、橘紅色、紅色。

每個單元的電流電壓怎麼估？

驅動電流：5 mA（白光）；20 mA（藍色、純綠色、黃綠色、黃色、琥珀色、橘紅色、紅色）。順向電壓：3.0 V（白光、藍色、純綠色）；2.1 V（黃綠色、黃色、橘紅色、紅色）；2.0 V（琥珀色）。

典型亮度數字？

亮度規格（依顏色）：130 mcd（白光）；30 mcd（藍色、橘紅色）；220 mcd（純綠色）；8 mcd（黃綠色）；25 mcd（黃色、琥珀色）；5 mcd（紅色）。

這款有多薄？

厚度僅 2.30 mm，Super Thin 超薄 SMD 封裝，比一般 SMD 或插件模組更薄。

額外資訊

發光色	橘紅, 琥珀, 白, 紅, 綠, 藍, 黃, 黃綠
驅動電流	100(mA), 10mA, 120(mA), 2(mA), 20(mA), 20mA, 2mA, 30mA, 5(mA), 5mA, 60mA, LED Driver control, R=10ma\|PG=B=2ma, Red (5mA), Pure Green (2mA), Blue (2mA), Red: 5mA, Green: 2mA, Blue: 2mA
正向電壓	1.1-1.7(V), 1.2~1.8(V), 1.8-2.2V, 1.8-2.4(V), 1.80V, 1.8V-2.2V, 1.90V, 10.0-12.0V, 10.0V-12.0V, 10.5-12V, 10.5V-12.0V, 10.8V-13.2V, 11.2-12.8(V), 11.2-12.8V, 11.2V-12.8V, 11.6-12.8(V), 12.0-12.8V, 12.0-13.2V, 12.0-14.4V, 12.0V-12.8V, 12.0V-13.2V, 12.6-14.4V, 12.6V-14.4V, 12.6V-16.1V, 12V-14.4V, 14-16V, 14.0-16.8V, 14.0V-16.0V, 14.0V-16.8V, 14.5-16(V), 14.7-16.8V, 14.7V-16.8V, 15.0-16.0V, 15.0V-16.0V, 16.8-19.2V, 16.8V-19.2V, 18.0-19.2V, 18V-19.2V, 2.0-2.4(V), 2.0-2.4V, 2.0-2.5V, 2.0-2.6(V), 2.0~2.4(V), 2.0~2.6(V), 2.0V, 2.0V-2.4V, 2.0V-2.6V, 2.1, 2.1-2.5(V), 2.1-2.5V, 2.1~2.4(V), 2.1~2.6(V), 2.1V, 2.1V-2.4V, 2.1V-2.6V, 2.2-2.4(V), 2.2-2.5V, 2.2-2.6V, 2.5-3.1(V), 2.50V, 2.5V-3.6V, 2.6-3.2(V), 2.60V, 2.8-3.1(V), 2.8-3.2(V), 2.80V, 2.85V, 2.8V-3.2V, 2.9-3.25(V), 2.9~3.2(V), 2.9~3.5(V), 2.9~3.7(V), 2.9V, 2.9V-3.2V, 20.3-22.4(V), 21.0-22.4V, 21.0V-22.4V, 3.0~3.4(V), 3.0V, 3.0V-3.3V, 3.0V-3.4V, 3.1-3.7(V, 3.1-3.7(V), 3.1-3.9(V), 3.2-3.5(V, 3.2-3.5(V), 3.2-3.6(V), 3.2-3.6V, 3.2-3.8(V), 3.2-3.8V, 3.2~3.4(V), 3.2~3.7(V), 3.2~3.9(V), 3.2V-4.0V, 3.3-3.9(V), 3.3~3.7(V), 3.3~3.9(V), 3.3V, 3.6V-4.4V, 3.7-4.1(V), 3V, 4.0-4.8(V), 4.0-4.8V, 4.0V-4.8V, 4.2-4.8(V), 4.2-4.8V, 4.2V-4.8V, 5.4V-6.6V, 5.6-6.4(V), 5.6-6.4V, 5.6V-6.4V, 5.8-6.4(V), 5.8-6.4V, 6.0-6.8(V), 6.0-6.8V, 6.0-7.2V, 6.0V-6.8V, 6.0V-7.2V, 6.3-7.2V, 6.3V-7.2V, 7.2V-8.8V, 7.2V-9.2V, 8.0-9.6V, 8.0V-9.6V, 8.4-9.6V, 8.4V-9.6V, 8.7-9.6(V), 9.0-10.2V, 9.0V-10.2V, 9.0V-11.0V, All Supply voltage=5V, Blue:2.7-3.9V, Red:1.6-2.0V, Follow spec., Green: 2.8-3.2V, Red: 2.1-2.4V, Green:2.7-3.9V, Red:1.6-2.0V, R=2.1V\|G=B=2.8V, R=2.2V\|PG=2.9V\|B=3.0V, Red: 1.5V-2.7V, Green: 2.0V-3.3V, Blue: 2.0V-3.3V, Red: 1.5V-2.7V, Green: 2.1V-3.3V, Blue: 2.3V-3.5V, Red: 1.9-2.4V, Pure Green: 2.5-3.1V, Blue: 2.5-3.1V, Red: 1.9V, Green: 2.5V, Blue: 2.5V, Red:2V Pure Green:3V Blue:3V, RGB:4.5-5.5V, White:2.6-3.2V, Red:1.6-2.0V, Yellow:1.6-2.0V, Blue:2.7-3.9V, Yellow:1.6-2.0V, Green:2.7-3.9V, Yellow:1.6-2.0V, Red:1.6-2.0V
Luminosity(Typ.)	0.85mW/sr, 1-5 (mW/sr), 1.3mW/sr, 1000mcd, 100mcd, 102mcd, 107.5mcd, 10mcd, 11.25mcd, 1100mcd, 110mcd, 112.5mcd, 1125mcd, 11mcd, 12.5mcd, 1200mcd, 120mcd, 12mcd, 13.7mcd, 130mcd, 137.5mcd, 1400mcd, 140mcd, 145mcd, 14mcd, 150 mcd, 1500mcd, 150mcd, 15mcd, 16000mcd, 160mcd, 16mcd, 170mcd, 18.5mcd, 1800mcd, 180mcd, 18mcd, 1900mcd, 190mcd, 195mcd, 198mcd, 2000mcd, 200mcd, 205mcd, 207.5mcd, 20mcd, 210mcd, 2200mcd, 220mcd, 2250mcd, 230mcd, 23mcd, 240mcd, 25000mcd, 2500mcd, 250mcd, 2520mcd, 25mcd, 265mcd, 2685mcd, 2750mcd, 28.5mcd, 2800mcd, 280mcd, 285mcd, 28mcd, 3.95mcd, 3000mcd, 300mcd, 30mcd, 312.5mcd, 32.5mcd, 320mcd, 33.5mcd, 330mcd, 350mcd, 35mcd, 360mcd, 37.5mcd, 3750mcd, 37mcd, 3800mcd, 38mcd, 3900mcd, 3mcd, 4000mcd, 400mcd, 40mcd, 420mcd, 425mcd, 440mcd, 450mcd, 45mcd, 47.5mcd, 475mcd, 47mcd, 500mcd, 50mcd, 51.5mcd, 52.5mcd, 520mcd, 525mcd, 530mcd, 550mcd, 55mcd, 560mcd, 57.5mcd, 5mcd, 60mcd, 62.5mcd, 6480mcd, 7.15mcd, 7000mcd, 700mcd, 70mcd, 71.5mcd, 715mcd, 72.5mcd, 72.8mcd, 770mcd, 7mcd, 80mcd, 8mcd, 900mcd, 90mcd, 97.5mcd, 9mcd, Blue:192mcd, Red:425mcd, Green: 1400mcd, Red: 1000mcd, Green: 400mcd, Red: 300mcd, Green: 700mcd, Red: 500mcd, Green:250mcd, Red:425mcd, R=112mcd\|G=225mcd\|B=72mcd, R=165mcd\|PG=440mcd\|B=85mcd, R=32mcd\|PG=46mcd\|B=8mcd, R=65mcd\|G=85mcd\|B=20mcd, Red: 13mcd, Green: 17mcd, Blue: 3mcd, Red: 32mcd, Green: 46mcd, Blue: 8mcd, Red: 32mcd, Pure Green: 46mcd, Blue: 8mcd, Red: 60mcd, Green: 150mcd, Blue: 30mcd, Red: 80-160mcd, Green: 180-260mcd, Blue: 30-70mcd, Red:66mcd, Green:101mcd, Blue:31mcd, White:2000mcd, Red:425mcd, Yellow Green: 25mcd, Red: 180mcd, Yellow Green: 35mcd, Red: 200mcd, Yellow Green: 60mcd, Red: 400mcd, Yellow Green:25mcd, Red : 140mcd, Yellow:336mcd, Blue:192mcd, Yellow:336mcd, Green:250mcd, Yellow:336mcd, Red:425mcd
Dominant Wavelength / Chromaticity Coordinate	(X/Y)=(0.3/0.2963), 420nm, 460-470(nm), 464nm, 470nm, 517nm, 522nm, 5250K, 529nm, 531nm, 570nm, 571nm, 588nm, 591nm, 593nm, 594nm, 600-612(nm), 605nm, 610nm, 611nm, 612nm, 621nm, 624nm, 625nm, 630nm, 632nm, 635-646(nm), 639nm, 640nm, 650nm, 850nm, 940nm, Blue:470nm, Red:624nm, Green: 515-530nm, Red: 618-628nm, Green:529nm, Red:624nm, R=621nm\|PG=522nm\|B=470nm, R=621nm\|PG=530nm\|B=469nm, R=622nm\|PG=525nm\|B=466nm, R=624mcd\|PG=523mcd\|b=470mcd, R=624nm\|PG=526nm\|B=470nm, Red: 618-625nm, Green: 520-535nm, Blue: 460-474nm, Red: 620nm, Green: 533nm, Blue: 470nm, Red: 621nm (Typ.) Pure Green: 530nm (Typ.) Blue: 469nm (Typ.), Red: 621nm, Green: 530nm, Blue: 469nm, Red: 622nm, Green: 525nm, Blue: 466nm, Red: 622nm, Green: 533nm, Blue: 470nm, Red:618-625nm, Green:518-535nm, Blue:460-474nm, White:0.265/0.275, Red:624nm, X: 0.265, Y: 0.25, X: 0.285 Y:0.265, X: 0.29 Y: 0.2825, X: 0.30 Y: 0.296, X: 0.315 Y: 0.315, X: 0.433 Y: 0.393, X:0.27 Y:0.255, X:0.3 Y:0.2963, X:0.31 :0.31, X:0.32 Y:0.32, Yellow Green: 567-576nm, Red: 619-629nm, Yellow:589nm, Blue:470nm, Yellow:589nm, Green:529nm, Yellow:589nm, Red:624nm, (X/Y)=(0.285/0.275), 400nm, 460-474(nm), 460-475(nm), 464-474(nm), 464~474(nm), 465nm, 466-474(nm), 468nm, 472nm, 500nm, 505nm, 515-530(nm), 515~530(nm), 520nm, 525nm, 527nm, 530nm, 567-576(nm), 567~576(nm), 568nm, 572nm, 573nm, 585-595(nm), 585~595(nm), 589nm, 590nm, 600-610(nm), 600-614(nm), 600~614(nm), 601-613(nm), 601-614(nm), 606-630(nm), 616-630nm, 619-629(nm), 619~629(nm), 635-648(nm), 635~648(nm), 645nm, 655nm, 660nm, 700nm, x-0-265, x-0-29, X: 0.265 Y:0.25, X: 0.28 Y: 0.29, X: 0.285, X: 0.285 Y: 0.275, X: 0.285 Y:0.275, X: 0.29 Y:0.285, X: 0.31 Y: 0.32, X:0.285 Y:0.275, X:0.29 Y: 0.28, Y: 0.275, Y)=(0.285
封裝方式	超薄型表面貼裝元件(Super Thin SMD)
顯示器種類	七段顯示器
Number of Characters	2
Display Thickness	1, 10.00mm, 10.20mm, 10.5mm, 11mm, 12.00mm, 12.50mm, 12.5mm, 12mm, 13.00mm, 13mm, 14.00mm, 15mcd, 15mm, 16.2mm, 18.70mm x 9.80mm, 2.10mm, 2.30mm, 2.5mm, 2.60mm, 25.00mm x 19.00mm, 3.10mm, 3.30mm, 3.75mm, 3.85mm, 3.8mm, 30.50mm x 13.00mm, 3mm, 4.05mm, 5.10mm, 5.4mm, 5.80mm, 5.90mm, 6.00mm, 6.10, 6.10mm, 6.2mm, 6.30mm, 6.36mm, 6.50mm, 6.5mm, 6.8mm, 6.9mm, 7.00mm, 7.20mm, 7.50mm, 7.70mm, 7.80mm, 7.90mm, 7mm, 8.00mm, 8.30mm, 8.40mm, 8.50mm, 8.80mm, 9.00mm, 9.20mm, 9.50mm, 9mm
Display WxL	10.00mm x 15.00mm, 10.00mm x 22.60mm, 10.00mm x 32.10mm, 10.10mm x 25.50mm, 10.10mm x 30.40mm, 10.20mm x 25.60mm, 106.50mm x 76.00mm, 109.7mm x 70mm, 10mm x 10mm, 10mm x 14.4mm, 10mm x 21.6mm, 10mm x 28.8mm, 10mm x 7.2mm, 11.00 mm x 7.40mm, 11.00mm x 30.20mm, 11mm x 22.5mm, 11mm x 7.5mm, 12.70 x 7.60, 12.70mm x 7.60mm, 12.80mm x 30.02mm, 12.80mm x 40.18mm, 12.8mm x 19.9mm, 12.90mm x 9.63mm, 12.90mm x 9.80mm, 122mm x 90mm, 12mm x 14.6mm, 12mm x 15mm, 12mm x 21.9mm, 12mm x 29.2mm, 12mm x 30mm, 12mm x 32.5mm, 12mm x 7.3mm, 13.00mm x 30.50mm, 13.00mm x 7.60mm, 13mm x 10mm, 14.00mm x 15.00mm, 14.00mm x 22.50mm, 14.00mm x 30.00mm, 14.00mm x 7.50mm, 14.4 x 10mm, 14.6 x 12mm, 14.9mm x 11mm, 140mm x 105mm, 14mm x 15mm, 14mm x 30mm, 15 x 12mm, 15.00mm x 14.00mm, 15.00mm x 15.50mm, 15.00mm x 9.80mm, 15.50mm x 15.00mm, 15mm x 15.5mm, 15mm x 15mm, 15mm x 18.5mm, 15mm x 19.6mm, 15mm x 27.75mm, 15mm x 29.4mm, 15mm x 37mm, 15mm x 39.2mm, 15mm x 9.25mm, 15mm x 9.8mm, 16.00mm x 18.60mm, 16.00mm x 20.20mm, 16.00mm x 27.90mm, 16.00mm x 30.10mm, 16.00mm x 37.36mm, 16.00mm x 40.50mm, 16.9 x 13mm, 16.90mm x 20.20mm, 16mm x 20.1mm, 16mm x 9.8mm, 16mm x 9.mm, 17.1mm x 12.4mm, 17.1mm x 50.4mm, 17.5mm x 12.25mm, 17.5mm x 24.5mm, 17.5mm x 25mm, 17.5mm x 36.75mm, 17.5mm x 37.8mm, 17.5mm x 49mm, 17.6mm x 12.4mm, 17.80mm x 12.70mm, 17.80mm x 50.80mm, 17mm x 25mm, 18.5 x 15mm, 18.70mm x 9.80mm, 18.8mm x 23.8mm, 18.90mm x 12.60mm, 19.00 mm x 25.00mm, 19.00mm x 10.06mm, 19.00mm x 12.60mm, 19.00mm x 37.60mm, 19.00mm x 50.00mm, 19.00mm x 50.20mm, 19.00mm x 50.30mm, 19.00mm x 50.3mm, 19.00mm x 9.30mm, 19.6 x 15mm, 19.90mm x 12.80mm, 19mm x 10.06mm, 19mm x 10.6mm, 19mm x 12.5mm, 19mm x 25mm, 19mm x 37.5mm, 19mm x 50.5mm, 19mm x 50mm, 20.00mm x 12.50mm, 20.00mm x 20.00mm, 20.10mm x 16.00mm, 21.10mm x 50.40mm, 21.15mm x 25.10mm, 21.6 x 10mm, 21.9 X 12mm, 22.5 X 11mm, 23.5 x 18.8mm, 24.00mm x 14.80mm, 25.00mm x 16.00mm, 25.00mm x 18.00mm, 25.00mm x 18.60mm, 25.00mm x 19.00mm, 25.70mm x 71.60mm, 25.7mm x 71.6mm, 25.8mm x 35.8mm, 27.50mm x 59.30mm, 27.70mm x 20.00mm, 27.75 x 15mm, 28.00mm x 50.40mm, 28.00mm x 67.20mm, 28.8 x 10mm, 28mm x 16.8mm, 28mm x 33.6mm, 29.2 x 12mm, 29.4 x 15mm, 30 x 12mm, 30.00mm x 14.00mm, 30.16 x 11mm, 30.50mm x 13.00mm, 31.70mm x 31.70mm, 31.80mm x 22.75mm, 32.00mm x 32.00mm, 32.10mm x 10.00mm, 33.00mm x 22.50mm, 33.00mm x 23.00mm, 33mm x 22.4mm, 34mm x 24mm, 35.80mm x 25.80mm, 37 x 15mm, 37.40mm x 23.40mm, 37.90mm x 37.90mm, 39.10mm x 22.80mm, 39.2 x 15mm, 40.8mm x 28.8mm, 44mm x 30.6mm, 46.90 mm x 33.1mm, 47.8mm x 47.8mm, 53.10mm x 37.80mm, 56mm x 38mm, 60.20mm x 60.20mm, 60.60mm x 37.80mm, 69.70mm x 47.80mm, 69.7mm x 47.8mm, 7.00mm x 59.90mm, 7.2 x 10mm, 7.3 x 12mm, 7.5 x 11mm, 9.25 x 15mm, 9.8 x 15mm, 90.00mm x 62.40mm, 90mm x 62mm, Ø 54.3mm
字高	0.2″ \| 5.08(mm)
