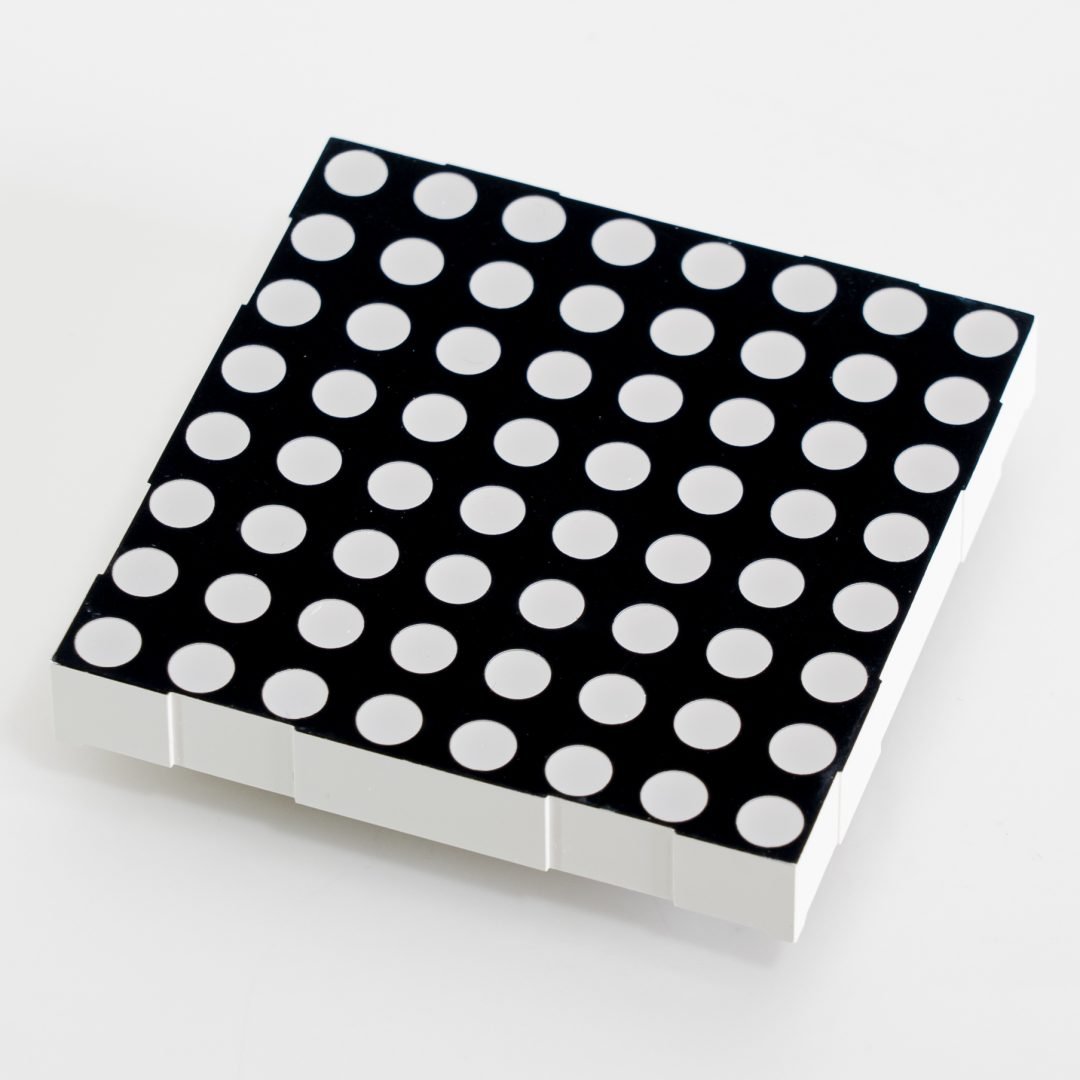

5Φ 8x8 LED THT Dot Matrix Display | 2.3" Matrix Height

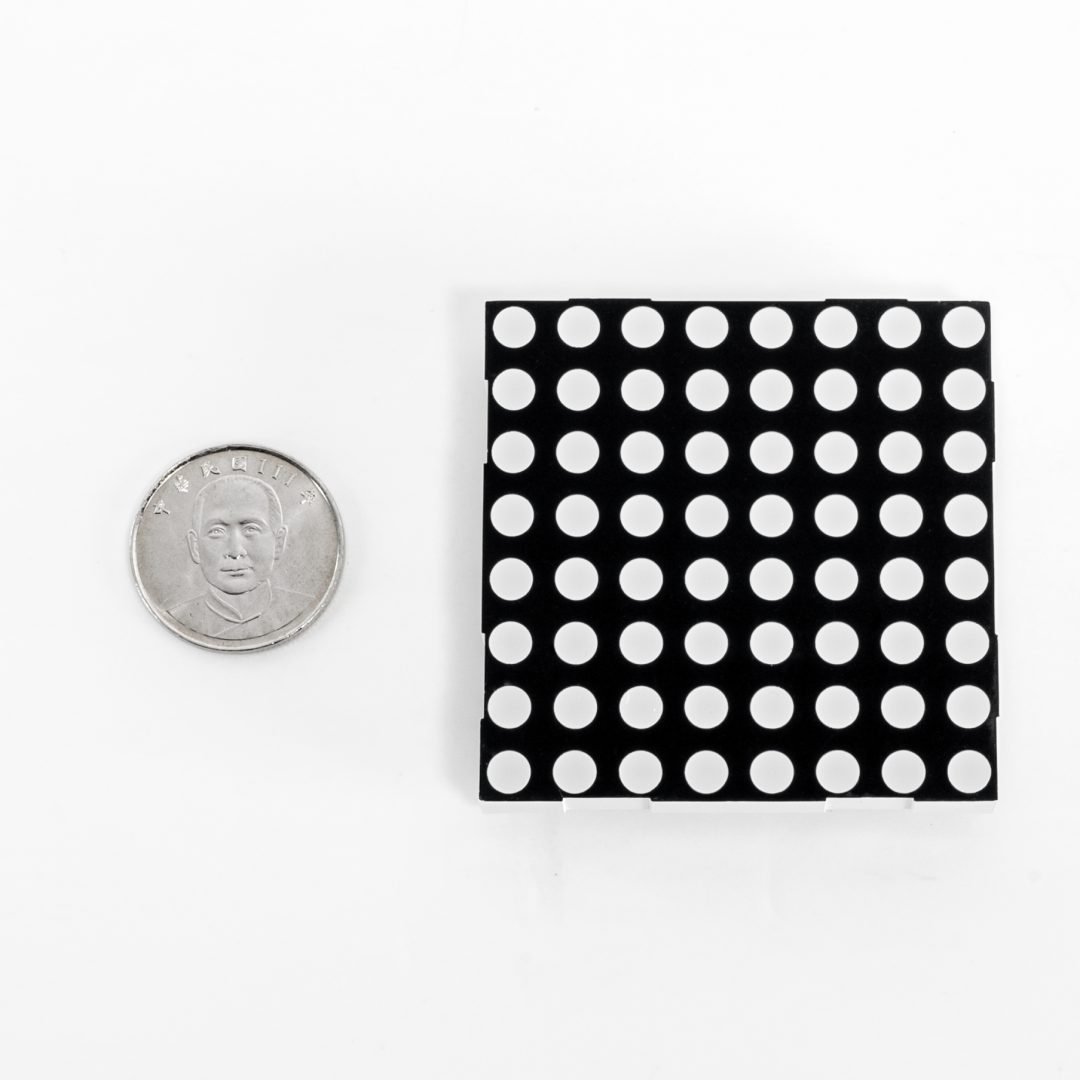

5Φ 8x8 LED THT Dot Matrix Display | 2.3" Matrix Height - product image 2

5Φ 8×8 LED THT Dot Matrix Display | 2.3″ Matrix Height

SKU: OPD-M58810(1) Category: Polarity: OPD-M58810 = Anode Column, Cathode Row (Common Anode, CA); OPD-M58811 = Cathode Column, Anode Row (Common Cathode, CC)
Polarity digit in the part number: even = anode column, cathode row; odd = cathode column, anode row.

Filters Sort results
Display Resolution(WxL):
8 x 8
Dot Diameter:
5(mm)
Kind of Display:
Dot Matrix Display
Mounting:
THT (Through-Hole Technology) / DIP (Dual-In line Package)
Display Thickness:
9.20mm
Display WxL:
60.20mm x 60.20mm

Description

>>Scroll Right to Learn More
Filters Sort results
SKU
Doc
Drive Current
Emitting Color
Forward Voltage
Luminosity
Dominant Wavelength / Chromaticity
QTY
Request
OPD-M58810(1)W
5(mA)
⋅White
2.8-3.2(V)
180mcd
(X/Y)=(0.285/0.275)
OPD-M58810(1)DR
20(mA)
⋅Red
2.1~2.4(V)
70mcd
635-648(nm)
OPD-M58810(1)LA
20(mA)
⋅Amber
2.0~2.4(V)
100mcd
600-610(nm)
OPD-M58810(1)LB
20(mA)
⋅Blue
3.0~3.4(V)
100mcd
460-474(nm)
OPD-M58810(1)LE
20(mA)
⋅Orange Red
2.1~2.4(V)
100mcd
619~629(nm)
OPD-M58810(1)UPG
20(mA)
⋅Pure Green
3.0~3.4(V)
280mcd
515~530(nm)
OPD-M58810(1)LR
20(mA)
⋅Red
2.1~2.4(V)
35mcd
635~648(nm)
OPD-M58810(1)LY
20(mA)
⋅Yellow
2.1~2.4(V)
100mcd
585~595(nm)
OPD-M58810(1)YG
20(mA)
⋅Yellow Green
2.1~2.4(V)
30mcd
567~576(nm)

Frequently Asked Questions

What are the dimensions of 5Φ 8×8 LED THT Dot Matrix Display?

The module measures 60.20 mm x 60.20 mm with a display thickness of 9.20 mm (matrix height 2.3″, 8 x 8 dot matrix).

Which color variants can I order?

8 variants are offered: White, Red, Amber, Blue, Orange Red, Pure Green, Yellow, Yellow Green.

How should I budget current and voltage per element?

Typical forward voltage: 2.8–3.2 V (White); 2.1–2.4 V (Red, Orange Red, Yellow, Yellow Green); 2.0–2.4 V (Amber); 3.0–3.4 V (Blue, Pure Green). Drive current: 5 mA (White); 20 mA (Red, Amber, Blue, Orange Red, Pure Green, Yellow, Yellow Green).

What luminous intensity can I expect?

Typical luminosity: 180 mcd (White); 70 mcd (Red); 100 mcd (Amber, Blue, Orange Red, Yellow); 280 mcd (Pure Green); 35 mcd (Red); 30 mcd (Yellow Green).

What are the specs of the white variant?

The white variant (OPD-M58810(1)W) runs at 5 mA with forward voltage 2.8–3.2 V, typical luminosity 180 mcd, chromaticity (X/Y) (0.285/0.275).

Additional information

Emitting Color

Amber, Blue, Orange Red, Pure Green, Red, White, Yellow, Yellow Green

Display Thickness

9.20mm

Luminosity(Typ.)

1000mcd, 100mcd, 107.5mcd, 10mcd, 110mcd, 11mcd, 12.5mcd, 120mcd, 12mcd, 13.7mcd, 137.5mcd, 1400mcd, 140mcd, 145mcd, 14mcd, 15mcd, 16000mcd, 160mcd, 16mcd, 1800mcd, 180mcd, 190mcd, 195mcd, 198mcd, 200mcd, 205mcd, 207.5mcd, 20mcd, 210mcd, 23mcd, 240mcd, 25000mcd, 250mcd, 25mcd, 265mcd, 2750mcd, 28.5mcd, 280mcd, 28mcd, 300mcd, 30mcd, 312.5mcd, 32.5mcd, 33.5mcd, 35mcd, 37.5mcd, 38mcd, 3900mcd, 3mcd, 4000mcd, 400mcd, 40mcd, 425mcd, 440mcd, 45mcd, 47.5mcd, 475mcd, 500mcd, 50mcd, 51.5mcd, 52.5mcd, 525mcd, 530mcd, 550mcd, 55mcd, 57.5mcd, 5mcd, 60mcd, 62.5mcd, 6480mcd, 700mcd, 70mcd, 72.5mcd, 72.8mcd, 80mcd, 8mcd, 900mcd, 90mcd, 97.5mcd, 9mcd

Drive Current

20(mA), 5(mA)

Forward Voltage

1.1-1.7(V), 1.2~1.8(V), 1.8-2.2V, 1.8-2.4(V), 1.80V, 1.8V-2.2V, 1.90V, 10.0-12.0V, 10.0V-12.0V, 10.5-12V, 10.5V-12.0V, 10.8V-13.2V, 11.2-12.8(V), 11.2-12.8V, 11.2V-12.8V, 11.6-12.8(V), 12.0-12.8V, 12.0-13.2V, 12.0-14.4V, 12.0V-12.8V, 12.0V-13.2V, 12.6-14.4V, 12.6V-14.4V, 12.6V-16.1V, 12V-14.4V, 14-16V, 14.0-16.8V, 14.0V-16.0V, 14.0V-16.8V, 14.5-16(V), 14.7-16.8V, 14.7V-16.8V, 15.0-16.0V, 15.0V-16.0V, 16.8-19.2V, 16.8V-19.2V, 18.0-19.2V, 18V-19.2V, 2.0-2.4(V), 2.0-2.4V, 2.0-2.5V, 2.0-2.6(V), 2.0~2.4(V), 2.0~2.6(V), 2.0V, 2.0V-2.4V, 2.0V-2.6V, 2.1, 2.1-2.5(V), 2.1-2.5V, 2.1~2.4(V), 2.1~2.6(V), 2.1V, 2.1V-2.4V, 2.1V-2.6V, 2.2-2.4(V), 2.2-2.5V, 2.2-2.6V, 2.2V, 2.5-3.1(V), 2.50V, 2.5V-3.6V, 2.6-3.2(V), 2.60V, 2.8-3.1(V), 2.8-3.2(V), 2.80V, 2.85V, 2.8V-3.2V, 2.9-3.25(V), 2.9~3.2(V), 2.9~3.5(V), 2.9~3.7(V), 2.9V, 2.9V-3.2V, 20.3-22.4(V), 21.0-22.4V, 21.0V-22.4V, 3.0~3.4(V), 3.0V, 3.0V-3.3V, 3.0V-3.4V, 3.1-3.7(V, 3.1-3.7(V), 3.1-3.9(V), 3.2-3.5(V, 3.2-3.5(V), 3.2-3.6(V), 3.2-3.6V, 3.2-3.8(V), 3.2-3.8V, 3.2~3.4(V), 3.2~3.7(V), 3.2~3.9(V), 3.2V, 3.2V-4.0V, 3.3-3.9(V), 3.3~3.7(V), 3.3~3.9(V), 3.3V, 3.6V-4.4V, 3.7-4.1(V), 3V, 4.0-4.8(V), 4.0-4.8V, 4.0V-4.8V, 4.2-4.8(V), 4.2-4.8V, 4.2V-4.8V, 5.4V-6.6V, 5.6-6.4(V), 5.6-6.4V, 5.6V-6.4V, 5.8-6.4(V), 5.8-6.4V, 6.0-6.8(V), 6.0-6.8V, 6.0-7.2V, 6.0V-6.8V, 6.0V-7.2V, 6.3-7.2V, 6.3V-7.2V, 7.2V-8.8V, 7.2V-9.2V, 8.0-9.6V, 8.0V-9.6V, 8.4-9.6V, 8.4V-9.6V, 8.7-9.6(V), 9.0-10.2V, 9.0V-10.2V, 9.0V-11.0V, All Supply voltage=5V, Any color available, Blue:2.7-3.9V, Red:1.6-2.0V, Follow spec., Green: 2.8-3.2V, Red: 2.1-2.4V, Green:2.7-3.9V, Red:1.6-2.0V, PG=3.2V|LE=2V, R=2.1V|G=B=2.8V, R=2.2V|PG=2.9V|B=3.0V, Red: 1.5V-2.7V, Green: 2.0V-3.3V, Blue: 2.0V-3.3V, Red: 1.5V-2.7V, Green: 2.1V-3.3V, Blue: 2.3V-3.5V, Red: 1.9-2.4V, Pure Green: 2.5-3.1V, Blue: 2.5-3.1V, Red: 1.9V, Green: 2.5V, Blue: 2.5V, Red:2V Pure Green:3V Blue:3V, RGB:4.5-5.5V, White:2.6-3.2V, Red:1.6-2.0V, Yellow:1.6-2.0V, Blue:2.7-3.9V, Yellow:1.6-2.0V, Green:2.7-3.9V, Yellow:1.6-2.0V, Red:1.6-2.0V, YG=2V|LE=2V

Dominant Wavelength / Chromaticity Coordinate

460-470(nm), (X/Y)=(0.285/0.275), 400nm, 460-474(nm), 460-475(nm), 464-474(nm), 464~474(nm), 465nm, 466-474(nm), 468nm, 470nm, 472nm, 500nm, 505nm, 515-530(nm), 515~530(nm), 520nm, 522nm, 525nm, 527nm, 530nm, 567-576(nm), 567~576(nm), 568nm, 572nm, 573nm, 585-595(nm), 585~595(nm), 589nm, 590nm, 593nm, 600-610(nm), 600-614(nm), 600~614(nm), 601-613(nm), 601-614(nm), 606-630(nm), 612nm, 616-630nm, 619-629(nm), 619~629(nm), 632nm, 635-648(nm), 635~648(nm), 645nm, 650nm, 655nm, 660nm, 700nm, x-0-265, x-0-29, X: 0.265 Y:0.25, X: 0.28 Y: 0.29, X: 0.285, X: 0.285 Y: 0.275, X: 0.285 Y:0.275, X: 0.29 Y:0.285, X: 0.31 Y: 0.32, X:0.285 Y:0.275, X:0.29 Y: 0.28, Y: 0.275, Y)=(0.285

Display WxL

60.20mm x 60.20mm

Kind of display

Dot Matrix Display

Mounting

THT (Through-Hole Technology) / DIP (Dual-In line Package)

Display Resolution (WxL)

8 x 8

Matrix Hight

2.3" l 58.34(mm)

Dot Diameter

5(mm)

Ordering terms

MOQTypically 1,000–10,000 pcs, quoted per part number; smaller quantities are welcome, with pricing based on volume
Production lead time6–8 weeks
Sample lead timeStandard 2–3 weeks; modified standard 2–6 weeks; full custom 6–8 weeks (6–8 weeks when materials are short)
SamplesGenerally charged; shipping paid by the customer
Tooling (full custom)USD 3,600–10,000, depending on the design
Quotation replyWithin 5 working days

Quality & support

  • 350 ppm quality level in mass production
  • ISO 9001:2015 quality management system
  • 8D report within 5 working days of receiving returned units
  • PCN / EOL notice 6 months in advance
  • 1-year warranty from the date of receipt

Typical terms; final terms are confirmed in each quotation.

Full Part Numbers

Bracket notation in the table above is shorthand. The orderable part numbers are (click a part number for its datasheet):

OPD-M58810W, OPD-M58811W, OPD-M58810DR, OPD-M58811DR, OPD-M58810LA, OPD-M58811LA, OPD-M58810LB, OPD-M58811LB, OPD-M58810LE, OPD-M58811LE, OPD-M58810UPG, OPD-M58811UPG, OPD-M58810LR, OPD-M58811LR, OPD-M58810LY, OPD-M58811LY, OPD-M58810YG, OPD-M58811YG
