SKU | Doc | Drive Current | Emitting Color | Forward Voltage | Luminosity | Dominant Wavelength / Chromaticity | QTY | Request |
|---|---|---|---|---|---|---|---|---|
OPD-D5630(1)LA | 20(mA) | ⋅Amber | 2.0~2.4(V) | 60mcd | 600-610(nm) | |||
OPD-D5630(1)LB | 20(mA) | ⋅Blue | 3.0~3.4(V) | 60mcd | 460-475(nm) | |||
OPD-D5630(1)LE | 20(mA) | ⋅Orange Red | 2.1~2.4(V) | 60mcd | 619-629(nm) | |||
OPD-D5630(1)UPG | 20(mA) | ⋅Pure Green | 2.8V-3.2V | 250mcd | 515-530(nm) | |||
OPD-D5630(1)LR | 20(mA) | ⋅Red | 2.1~2.4(V) | 20mcd | 635-648(nm) | |||
OPD-D5630(1)W | 5(mA) | ⋅White | 2.9~3.2(V) | 180mcd | (X/Y)=(0.285/0.275) | |||
OPD-D5630(1)LY | 20(mA) | ⋅Yellow | 2.1~2.4(V) | 60mcd | 585-595(nm) | |||
OPD-D5630(1)YG | 20(mA) | ⋅Yellow Green | 2.1~2.4(V) | 20mcd | 567-576(nm) |
Frequently Asked Questions
What module size should I allow for on the PCB?

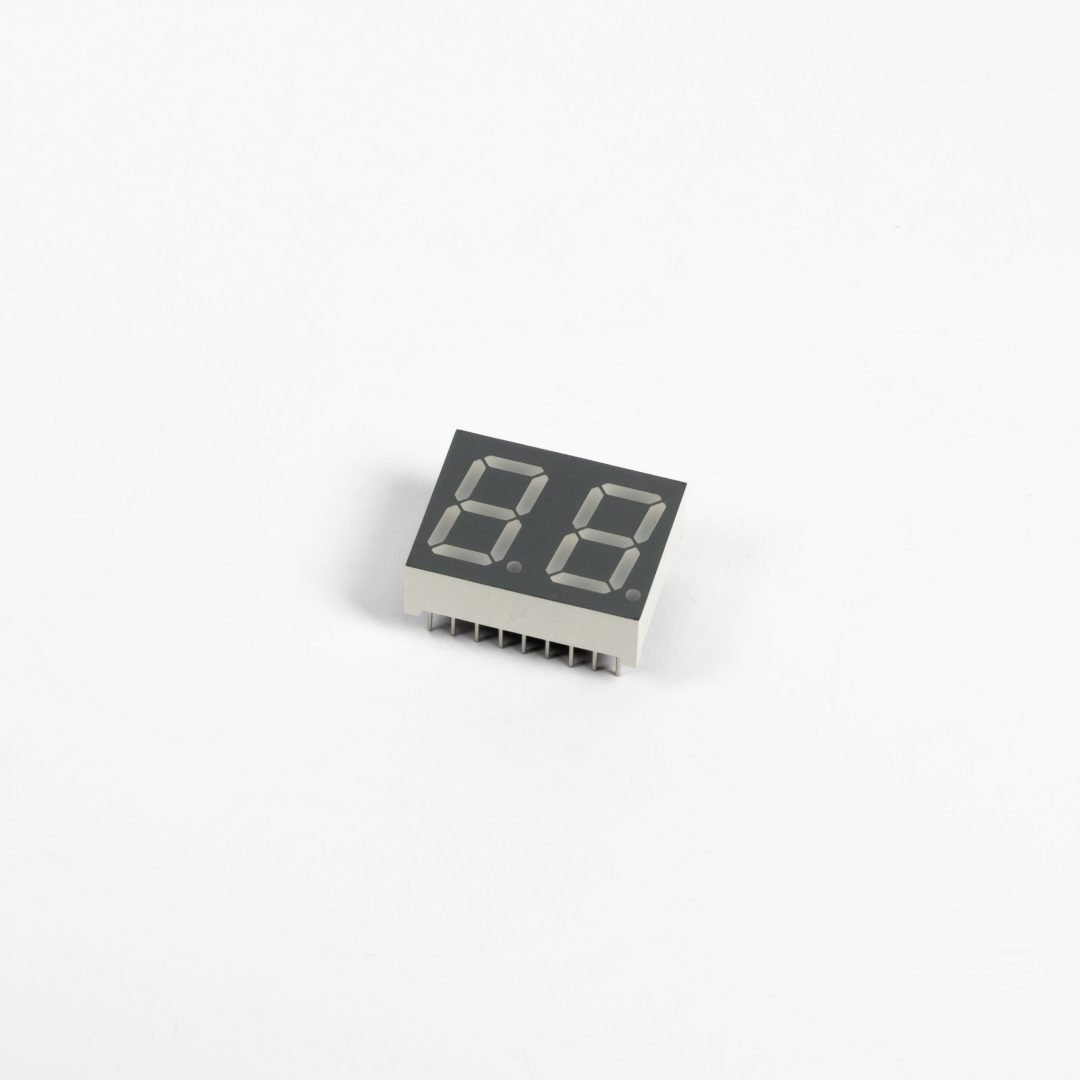

Reserve 19 mm x 25 mm of board space; display thickness 8.00 mm (digit height 0.56" (14.23 mm), 2 digits).
What emitting colors are available?
8 variants are offered: Amber, Blue, Orange Red, Pure Green, Red, White, Yellow, Yellow Green.
What are the electrical characteristics?
For your driver design: drive current: 20 mA (Amber, Blue, Orange Red, Pure Green, Red, Yellow, Yellow Green); 5 mA (White); typical forward voltage: 2.0–2.4 V (Amber); 3.0–3.4 V (Blue); 2.1–2.4 V (Orange Red, Red, Yellow, Yellow Green); 2.8 V-3.2 V (Pure Green); 2.9–3.2 V (White).
How bright is each color variant?
Per-color typical luminosity: 60 mcd (Amber, Blue, Orange Red, Yellow); 250 mcd (Pure Green); 20 mcd (Red, Yellow Green); 180 mcd (White).
What are the specs of the white variant?
The white variant (OPD-D5630(1)W) runs at 5 mA with forward voltage 2.9–3.2 V, typical luminosity 180 mcd, chromaticity (X/Y) (0.285/0.275).
