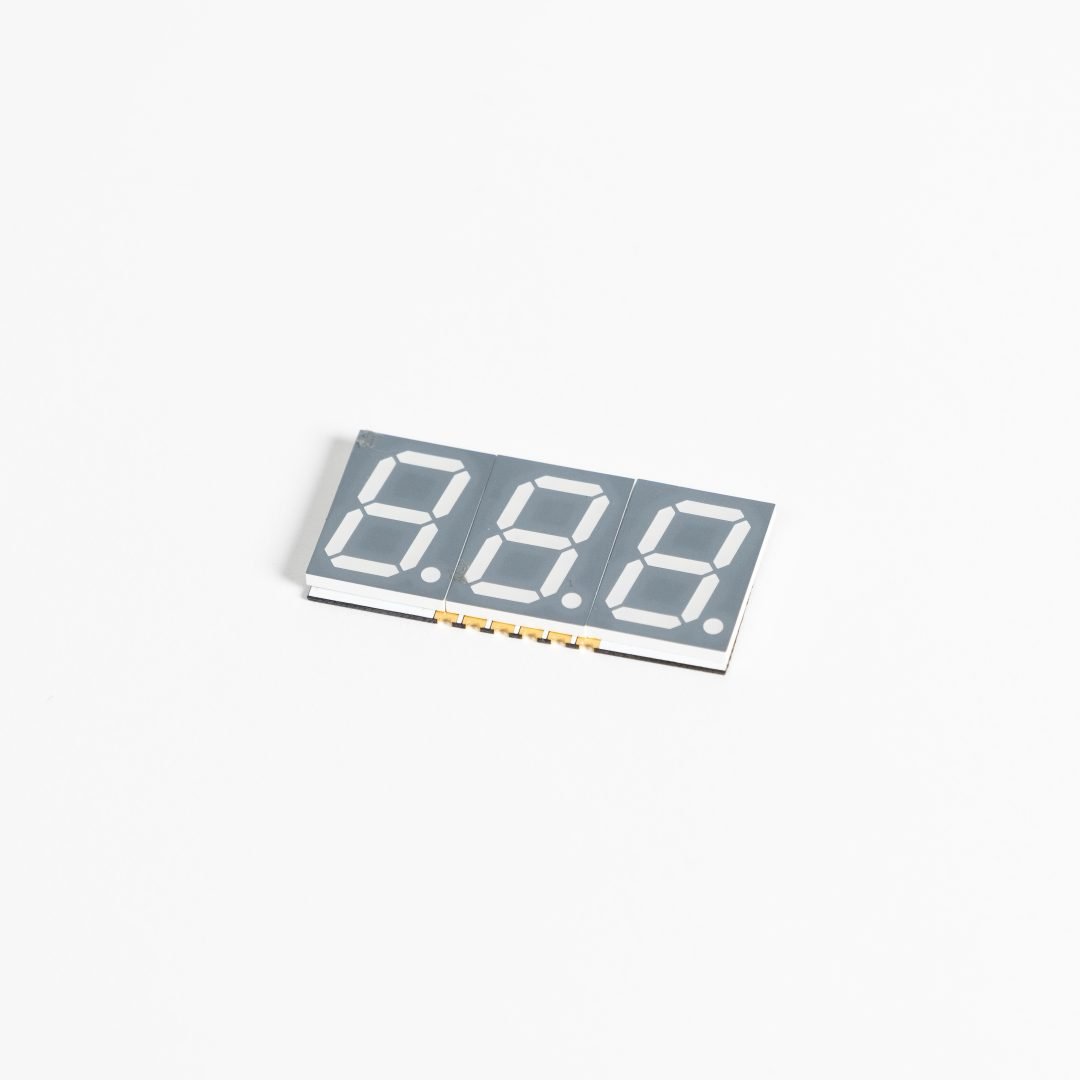

0.56″ Triple Digit Super Thin SMD LED 7-Segment Display | Diamond Seg.

SKU: OPS-T5611(2)xx-STT(R)-G(B)W Category: LED Display


Digit Height: 0.56" \| 14.23(mm) Kind of Display: 7-Segment Display Mounting: Super Thin SMD (Surface Mount Device) Display Thickness: 2.10mm Display WxL: 37.9mm x 20mm Number of Characters: 3

Description
Additional information

Description

SKU	Doc	Drive Current	Emitting Color	Forward Voltage	Luminosity	Dominant Wavelength / Chromaticity	Request
OPS-T5611(2)W-STT(R)-1.5-G(B)W	Documentation	5mA	⋅White	3.0V	200mcd	(X/Y)=(0.285/0.275)	Add to quote Add to quote Product added
OPS-T5611(2)SB-STT(R)-1.5-G(B)W	Documentation	20mA	⋅Blue	3.0V	50mcd	470nm	Add to quote Add to quote Product added
OPS-T5611(2)SPG-STT(R)-1.5-G(B)W	Documentation	20mA	⋅Pure Green	3.0V	400mcd	525nm	Add to quote Add to quote Product added
OPS-T5611(2)SYG-STT(R)-1.5-G(B)W	Documentation	20mA	⋅Yellow Green	2.1V	8mcd	570nm	Add to quote Add to quote Product added
OPS-T5611(2)SY-STT(R)-1.5-G(B)W	Documentation	20mA	⋅Yellow	2.1V	40mcd	590nm	Add to quote Add to quote Product added
OPS-T5611(2)SA-STT(R)-1.5-G(B)W	Documentation	20mA	⋅Amber	2.0V	40mcd	610nm	Add to quote Add to quote Product added
OPS-T5611(2)SE-STT(R)-1.5-G(B)W	Documentation	20mA	⋅Orange Red	2.1V	50mcd	625nm	Add to quote Add to quote Product added
OPS-T5611(2)LR-STT(R)-1.5-G(B)W	Documentation	20mA	⋅Red	2.1V	5mcd	640nm	Add to quote Add to quote Product added

Frequently Asked Questions

What module size should I allow for on the PCB?

Reserve 37.9 mm x 20 mm of board space; display thickness 2.10 mm (digit height 0.56" (14.23 mm), 3 digits).

What emitting colors are available?

This series comes in 8 colors: White, Blue, Pure Green, Yellow Green, Yellow, Amber, Orange Red, Red.

How should I budget current and voltage per element?

For your driver design: drive current: 5 mA (White); 20 mA (Blue, Pure Green, Yellow Green, Yellow, Amber, Orange Red, Red); typical forward voltage: 3.0 V (White, Blue, Pure Green); 2.1 V (Yellow Green, Yellow, Orange Red, Red); 2.0 V (Amber).

How bright is each color variant?

Typical luminosity: 200 mcd (White); 50 mcd (Blue, Orange Red); 400 mcd (Pure Green); 8 mcd (Yellow Green); 40 mcd (Yellow, Amber); 5 mcd (Red).

How thin is this display?

Display thickness is just 2.10 mm — a Super Thin SMD package, slimmer than standard SMD or through-hole modules.

Additional information

Emitting Color	Amber, Blue, Orange Red, Pure Green, Red, White, Yellow, Yellow Green
Drive Current	100(mA), 10mA, 120(mA), 2(mA), 20(mA), 20mA, 2mA, 30mA, 5(mA), 5mA, 60mA, LED Driver control, R=10ma\|PG=B=2ma, Red (5mA), Pure Green (2mA), Blue (2mA), Red: 5mA, Green: 2mA, Blue: 2mA
Forward Voltage	1.1-1.7(V), 1.2~1.8(V), 1.8-2.2V, 1.8-2.4(V), 1.80V, 1.8V-2.2V, 1.90V, 10.0-12.0V, 10.0V-12.0V, 10.5-12V, 10.5V-12.0V, 10.8V-13.2V, 11.2-12.8(V), 11.2-12.8V, 11.2V-12.8V, 11.6-12.8(V), 12.0-12.8V, 12.0-13.2V, 12.0-14.4V, 12.0V-12.8V, 12.0V-13.2V, 12.6-14.4V, 12.6V-14.4V, 12.6V-16.1V, 12V-14.4V, 14-16V, 14.0-16.8V, 14.0V-16.0V, 14.0V-16.8V, 14.5-16(V), 14.7-16.8V, 14.7V-16.8V, 15.0-16.0V, 15.0V-16.0V, 16.8-19.2V, 16.8V-19.2V, 18.0-19.2V, 18V-19.2V, 2.0-2.4(V), 2.0-2.4V, 2.0-2.5V, 2.0-2.6(V), 2.0~2.4(V), 2.0~2.6(V), 2.0V, 2.0V-2.4V, 2.0V-2.6V, 2.1, 2.1-2.5(V), 2.1-2.5V, 2.1~2.4(V), 2.1~2.6(V), 2.1V, 2.1V-2.4V, 2.1V-2.6V, 2.2-2.4(V), 2.2-2.5V, 2.2-2.6V, 2.5-3.1(V), 2.50V, 2.5V-3.6V, 2.6-3.2(V), 2.60V, 2.8-3.1(V), 2.8-3.2(V), 2.80V, 2.85V, 2.8V-3.2V, 2.9-3.25(V), 2.9~3.2(V), 2.9~3.5(V), 2.9~3.7(V), 2.9V, 2.9V-3.2V, 20.3-22.4(V), 21.0-22.4V, 21.0V-22.4V, 3.0~3.4(V), 3.0V, 3.0V-3.3V, 3.0V-3.4V, 3.1-3.7(V, 3.1-3.7(V), 3.1-3.9(V), 3.2-3.5(V, 3.2-3.5(V), 3.2-3.6(V), 3.2-3.6V, 3.2-3.8(V), 3.2-3.8V, 3.2~3.4(V), 3.2~3.7(V), 3.2~3.9(V), 3.2V-4.0V, 3.3-3.9(V), 3.3~3.7(V), 3.3~3.9(V), 3.3V, 3.6V-4.4V, 3.7-4.1(V), 3V, 4.0-4.8(V), 4.0-4.8V, 4.0V-4.8V, 4.2-4.8(V), 4.2-4.8V, 4.2V-4.8V, 5.4V-6.6V, 5.6-6.4(V), 5.6-6.4V, 5.6V-6.4V, 5.8-6.4(V), 5.8-6.4V, 6.0-6.8(V), 6.0-6.8V, 6.0-7.2V, 6.0V-6.8V, 6.0V-7.2V, 6.3-7.2V, 6.3V-7.2V, 7.2V-8.8V, 7.2V-9.2V, 8.0-9.6V, 8.0V-9.6V, 8.4-9.6V, 8.4V-9.6V, 8.7-9.6(V), 9.0-10.2V, 9.0V-10.2V, 9.0V-11.0V, All Supply voltage=5V, Blue:2.7-3.9V, Red:1.6-2.0V, Follow spec., Green: 2.8-3.2V, Red: 2.1-2.4V, Green:2.7-3.9V, Red:1.6-2.0V, R=2.1V\|G=B=2.8V, R=2.2V\|PG=2.9V\|B=3.0V, Red: 1.5V-2.7V, Green: 2.0V-3.3V, Blue: 2.0V-3.3V, Red: 1.5V-2.7V, Green: 2.1V-3.3V, Blue: 2.3V-3.5V, Red: 1.9-2.4V, Pure Green: 2.5-3.1V, Blue: 2.5-3.1V, Red: 1.9V, Green: 2.5V, Blue: 2.5V, Red:2V Pure Green:3V Blue:3V, RGB:4.5-5.5V, White:2.6-3.2V, Red:1.6-2.0V, Yellow:1.6-2.0V, Blue:2.7-3.9V, Yellow:1.6-2.0V, Green:2.7-3.9V, Yellow:1.6-2.0V, Red:1.6-2.0V
Luminosity(Typ.)	0.85mW/sr, 1-5 (mW/sr), 1.3mW/sr, 1000mcd, 100mcd, 102mcd, 107.5mcd, 10mcd, 11.25mcd, 1100mcd, 110mcd, 112.5mcd, 1125mcd, 11mcd, 12.5mcd, 1200mcd, 120mcd, 12mcd, 13.7mcd, 130mcd, 137.5mcd, 1400mcd, 140mcd, 145mcd, 14mcd, 150 mcd, 1500mcd, 150mcd, 15mcd, 16000mcd, 160mcd, 16mcd, 170mcd, 18.5mcd, 1800mcd, 180mcd, 18mcd, 1900mcd, 190mcd, 195mcd, 198mcd, 2000mcd, 200mcd, 205mcd, 207.5mcd, 20mcd, 210mcd, 2200mcd, 220mcd, 2250mcd, 230mcd, 23mcd, 240mcd, 25000mcd, 2500mcd, 250mcd, 2520mcd, 25mcd, 265mcd, 2685mcd, 2750mcd, 28.5mcd, 2800mcd, 280mcd, 285mcd, 28mcd, 3.95mcd, 3000mcd, 300mcd, 30mcd, 312.5mcd, 32.5mcd, 320mcd, 33.5mcd, 330mcd, 350mcd, 35mcd, 360mcd, 37.5mcd, 3750mcd, 37mcd, 3800mcd, 38mcd, 3900mcd, 3mcd, 4000mcd, 400mcd, 40mcd, 420mcd, 425mcd, 440mcd, 450mcd, 45mcd, 47.5mcd, 475mcd, 47mcd, 500mcd, 50mcd, 51.5mcd, 52.5mcd, 520mcd, 525mcd, 530mcd, 550mcd, 55mcd, 560mcd, 57.5mcd, 5mcd, 60mcd, 62.5mcd, 6480mcd, 6mcd, 7.15mcd, 7000mcd, 700mcd, 70mcd, 71.5mcd, 715mcd, 72.5mcd, 72.8mcd, 770mcd, 7mcd, 80mcd, 8mcd, 900mcd, 90mcd, 97.5mcd, 9mcd, Blue:192mcd, Red:425mcd, Green: 1400mcd, Red: 1000mcd, Green: 400mcd, Red: 300mcd, Green: 700mcd, Red: 500mcd, Green:250mcd, Red:425mcd, R=112mcd\|G=225mcd\|B=72mcd, R=165mcd\|PG=440mcd\|B=85mcd, R=32mcd\|PG=46mcd\|B=8mcd, R=65mcd\|G=85mcd\|B=20mcd, Red: 13mcd, Green: 17mcd, Blue: 3mcd, Red: 32mcd, Green: 46mcd, Blue: 8mcd, Red: 32mcd, Pure Green: 46mcd, Blue: 8mcd, Red: 60mcd, Green: 150mcd, Blue: 30mcd, Red: 80-160mcd, Green: 180-260mcd, Blue: 30-70mcd, Red:66mcd, Green:101mcd, Blue:31mcd, White:2000mcd, Red:425mcd, Yellow Green: 25mcd, Red: 180mcd, Yellow Green: 35mcd, Red: 200mcd, Yellow Green: 60mcd, Red: 400mcd, Yellow Green:25mcd, Red : 140mcd, Yellow:336mcd, Blue:192mcd, Yellow:336mcd, Green:250mcd, Yellow:336mcd, Red:425mcd
Dominant Wavelength / Chromaticity Coordinate	(X/Y)=(0.3/0.2963), 420nm, 460-470(nm), 464nm, 517nm, 5250K, 529nm, 531nm, 570nm, 571nm, 588nm, 591nm, 594nm, 600-612(nm), 605nm, 610nm, 611nm, 621nm, 624nm, 625nm, 630nm, 635-646(nm), 639nm, 640nm, 850nm, 940nm, Blue:470nm, Red:624nm, Green: 515-530nm, Red: 618-628nm, Green:529nm, Red:624nm, R=621nm\|PG=522nm\|B=470nm, R=621nm\|PG=530nm\|B=469nm, R=622nm\|PG=525nm\|B=466nm, R=624mcd\|PG=523mcd\|b=470mcd, R=624nm\|PG=526nm\|B=470nm, Red: 618-625nm, Green: 520-535nm, Blue: 460-474nm, Red: 620nm, Green: 533nm, Blue: 470nm, Red: 621nm (Typ.) Pure Green: 530nm (Typ.) Blue: 469nm (Typ.), Red: 621nm, Green: 530nm, Blue: 469nm, Red: 622nm, Green: 525nm, Blue: 466nm, Red: 622nm, Green: 533nm, Blue: 470nm, Red:618-625nm, Green:518-535nm, Blue:460-474nm, White:0.265/0.275, Red:624nm, X: 0.265, Y: 0.25, X: 0.285 Y:0.265, X: 0.29 Y: 0.2825, X: 0.30 Y: 0.296, X: 0.315 Y: 0.315, X: 0.433 Y: 0.393, X:0.27 Y:0.255, X:0.3 Y:0.2963, X:0.31 :0.31, X:0.32 Y:0.32, Yellow Green: 567-576nm, Red: 619-629nm, Yellow:589nm, Blue:470nm, Yellow:589nm, Green:529nm, Yellow:589nm, Red:624nm, (X/Y)=(0.285/0.275), 400nm, 460-474(nm), 460-475(nm), 464-474(nm), 464~474(nm), 465nm, 466-474(nm), 468nm, 470nm, 472nm, 500nm, 505nm, 515-530(nm), 515~530(nm), 520nm, 522nm, 525nm, 527nm, 530nm, 567-576(nm), 567~576(nm), 568nm, 572nm, 573nm, 585-595(nm), 585~595(nm), 589nm, 590nm, 593nm, 600-610(nm), 600-614(nm), 600~614(nm), 601-613(nm), 601-614(nm), 606-630(nm), 612nm, 616-630nm, 619-629(nm), 619~629(nm), 632nm, 635-648(nm), 635~648(nm), 645nm, 650nm, 655nm, 660nm, 700nm, x-0-265, x-0-29, X: 0.265 Y:0.25, X: 0.28 Y: 0.29, X: 0.285, X: 0.285 Y: 0.275, X: 0.285 Y:0.275, X: 0.29 Y:0.285, X: 0.31 Y: 0.32, X:0.285 Y:0.275, X:0.29 Y: 0.28, Y: 0.275, Y)=(0.285
Mounting	Super Thin SMD (Surface Mount Device)
Kind of display	7-Segment Display
Number of Characters	3
Display Thickness	1, 10.00mm, 10.20mm, 10.5mm, 11mm, 12.00mm, 12.50mm, 12.5mm, 12mm, 13.00mm, 13mm, 14.00mm, 15mcd, 15mm, 16.2mm, 18.70mm x 9.80mm, 2.10mm, 2.30mm, 2.5mm, 2.60mm, 25.00mm x 19.00mm, 3.10mm, 3.30mm, 3.75mm, 3.85mm, 3.8mm, 30.50mm x 13.00mm, 3mm, 4.05mm, 5.10mm, 5.4mm, 5.80mm, 5.90mm, 6.00mm, 6.10, 6.10mm, 6.2mm, 6.30mm, 6.36mm, 6.50mm, 6.5mm, 6.8mm, 6.9mm, 7.00mm, 7.20mm, 7.50mm, 7.70mm, 7.80mm, 7.90mm, 7mm, 8.00mm, 8.30mm, 8.40mm, 8.50mm, 8.80mm, 9.00mm, 9.20mm, 9.50mm, 9mm
Display WxL	10.00mm x 15.00mm, 10.00mm x 22.60mm, 10.00mm x 32.10mm, 10.10mm x 25.50mm, 10.10mm x 30.40mm, 10.20mm x 25.60mm, 106.50mm x 76.00mm, 109.7mm x 70mm, 10mm x 10mm, 10mm x 14.4mm, 10mm x 21.6mm, 10mm x 28.8mm, 10mm x 7.2mm, 11.00 mm x 7.40mm, 11.00mm x 30.20mm, 11mm x 22.5mm, 11mm x 7.5mm, 12.70 x 7.60, 12.70mm x 7.60mm, 12.80mm x 30.02mm, 12.80mm x 40.18mm, 12.8mm x 19.9mm, 12.90mm x 9.63mm, 12.90mm x 9.80mm, 122mm x 90mm, 12mm x 14.6mm, 12mm x 15mm, 12mm x 21.9mm, 12mm x 29.2mm, 12mm x 30mm, 12mm x 32.5mm, 12mm x 7.3mm, 13.00mm x 30.50mm, 13.00mm x 7.60mm, 13mm x 10mm, 14.00mm x 15.00mm, 14.00mm x 22.50mm, 14.00mm x 30.00mm, 14.00mm x 7.50mm, 14.4 x 10mm, 14.6 x 12mm, 14.9mm x 11mm, 140mm x 105mm, 14mm x 15mm, 14mm x 30mm, 15 x 12mm, 15.00mm x 14.00mm, 15.00mm x 15.50mm, 15.00mm x 9.80mm, 15.2mm x 13mm, 15.50mm x 15.00mm, 15mm x 15.5mm, 15mm x 15mm, 15mm x 18.5mm, 15mm x 19.6mm, 15mm x 27.75mm, 15mm x 29.4mm, 15mm x 37mm, 15mm x 39.2mm, 15mm x 9.25mm, 15mm x 9.8mm, 16.00mm x 18.60mm, 16.00mm x 20.20mm, 16.00mm x 27.90mm, 16.00mm x 30.10mm, 16.00mm x 37.36mm, 16.00mm x 40.50mm, 16.9 x 13mm, 16.90mm x 20.20mm, 16mm x 20.1mm, 16mm x 9.8mm, 16mm x 9.mm, 17.1mm x 12.4mm, 17.1mm x 50.4mm, 17.5mm x 12.25mm, 17.5mm x 24.5mm, 17.5mm x 25mm, 17.5mm x 36.75mm, 17.5mm x 37.8mm, 17.5mm x 49mm, 17.6mm x 12.4mm, 17.80mm x 12.70mm, 17.80mm x 50.80mm, 17mm x 25mm, 18.5 x 15mm, 18.70mm x 9.80mm, 18.8mm x 23.8mm, 18.90mm x 12.60mm, 19.00 mm x 25.00mm, 19.00mm x 10.06mm, 19.00mm x 12.60mm, 19.00mm x 37.60mm, 19.00mm x 50.00mm, 19.00mm x 50.20mm, 19.00mm x 50.30mm, 19.00mm x 50.3mm, 19.00mm x 9.30mm, 19.6 x 15mm, 19.90mm x 12.80mm, 19.9mm x 16mm, 19mm x 10.06mm, 19mm x 10.6mm, 19mm x 12.5mm, 19mm x 25mm, 19mm x 37.5mm, 19mm x 50.5mm, 19mm x 50mm, 20.00mm x 12.50mm, 20.00mm x 20.00mm, 20.10mm x 16.00mm, 21.10mm x 50.40mm, 21.15mm x 25.10mm, 21.6 x 10mm, 21.9 X 12mm, 22.4mm x 11mm, 22.5 X 11mm, 22.8mm x 13mm, 23.5 x 18.8mm, 24.00mm x 14.80mm, 25.00mm x 16.00mm, 25.00mm x 18.00mm, 25.00mm x 18.60mm, 25.00mm x 19.00mm, 25.1mm x 20mm, 25.70mm x 71.60mm, 25.7mm x 71.6mm, 25.8mm x 35.8mm, 27.50mm x 59.30mm, 27.70mm x 20.00mm, 27.75 x 15mm, 28.00mm x 50.40mm, 28.00mm x 67.20mm, 28.8 x 10mm, 28mm x 16.8mm, 28mm x 33.6mm, 29.2 x 12mm, 29.4 x 15mm, 29.75mm x 24mm, 30 x 12mm, 30.00mm x 14.00mm, 30.16 x 11mm, 30.50mm x 13.00mm, 30mm x 16mm, 31.70mm x 31.70mm, 31.80mm x 22.75mm, 32.00mm x 32.00mm, 32.10mm x 10.00mm, 33.00mm x 22.50mm, 33.00mm x 23.00mm, 33mm x 22.4mm, 34mm x 24mm, 35.80mm x 25.80mm, 37 x 15mm, 37.40mm x 23.40mm, 37.90mm x 37.90mm, 37.9mm x 20mm, 39.10mm x 22.80mm, 39.2 x 15mm, 40.8mm x 28.8mm, 44mm x 30.6mm, 46.90 mm x 33.1mm, 47.8mm x 47.8mm, 53.10mm x 37.80mm, 56mm x 38mm, 60.20mm x 60.20mm, 60.60mm x 37.80mm, 69.70mm x 47.80mm, 69.7mm x 47.8mm, 7.00mm x 59.90mm, 7.2 x 10mm, 7.3 x 12mm, 7.5 x 11mm, 9.25 x 15mm, 9.8 x 15mm, 90.00mm x 62.40mm, 90mm x 62mm, Ø 54.3mm
Digit Height	0.56" \| 14.23(mm)

Full Part Numbers

Bracket notation in the table above is shorthand. The orderable part numbers are (click a part number for its datasheet):
