Description
SKU | Doc | Drive Current | Emitting Color | Forward Voltage | Luminosity | Dominant Wavelength / Chromaticity | QTY | Request |
|---|---|---|---|---|---|---|---|---|
OPS-S5640(1)SA | 20(mA) | ⋅Amber | 2.0~2.4(V) | 52.5mcd | 601-613(nm) | |||
OPS-S5640(1)SB | 20(mA) | ⋅Blue | 3.0~3.4(V) | 100mcd | 464-474(nm) | |||
OPS-S5640(1)SE | 20(mA) | ⋅Orange Red | 2.1~2.4(V) | 55mcd | 619-629(nm) | |||
OPS-S5640(1)SPG | 20(mA) | ⋅Pure Green | 3.0~3.4(V) | 500mcd | 515-530(nm) | |||
OPS-S5640(1)LR | 20(mA) | ⋅Red | 2.1~2.4(V) | 16mcd | 635-648(nm) | |||
OPS-S5640(1)W | 5(mA) | ⋅White | 2.9~3.2(V) | 200mcd | (X/Y)=(0.285/0.275) | |||
OPS-S5640(1)SY | 20(mA) | ⋅Yellow | 2.1~2.4(V) | 62.5mcd | 585-595(nm) | |||
OPS-S5640(1)SYG | 20(mA) | ⋅Yellow Green | 2.1~2.4(V) | 15mcd | 567-576(nm) |
Frequently Asked Questions

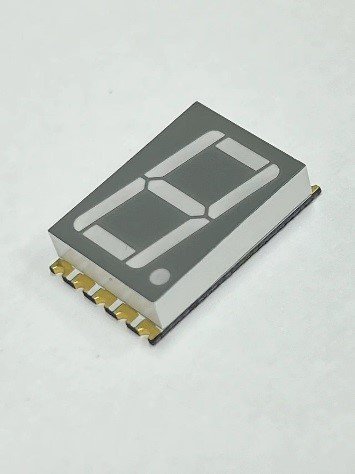

What are the dimensions of 0.56″ Single Digit SMD LED 7-Segment Display?
Reserve 19 mm x 12.5 mm of board space; display thickness 3.85 mm (digit height 0.56" (14.23 mm), 1 digits).
What color options does this series offer?
8 variants are offered: Amber, Blue, Orange Red, Pure Green, Red, White, Yellow, Yellow Green.
What drive current and forward voltage does it use?
For your driver design: drive current: 20 mA (Amber, Blue, Orange Red, Pure Green, Red, Yellow, Yellow Green); 5 mA (White); typical forward voltage: 2.0–2.4 V (Amber); 3.0–3.4 V (Blue, Pure Green); 2.1–2.4 V (Orange Red, Red, Yellow, Yellow Green); 2.9–3.2 V (White).
How bright are the different colors?
Per-color typical luminosity: 52.5 mcd (Amber); 100 mcd (Blue); 55 mcd (Orange Red); 500 mcd (Pure Green); 16 mcd (Red); 200 mcd (White); 62.5 mcd (Yellow); 15 mcd (Yellow Green).
What are the specs of the white variant?
The white variant (OPS-S5640(1)W) runs at 5 mA with forward voltage 2.9–3.2 V, typical luminosity 200 mcd, chromaticity (X/Y) (0.285/0.275).
