Description
SKU | Doc | Drive Current | Emitting Color | Forward Voltage | Luminosity | Dominant Wavelength / Chromaticity | QTY | Request |
|---|---|---|---|---|---|---|---|---|
OPS-T4016(7)SA | 20(mA) | ⋅Amber | 2.0~2.4(V) | 37.5mcd | 600-614(nm) | |||
OPS-T4016(7)SB | 20(mA) | ⋅Blue | 3.0~3.4(V) | 52.5mcd | 464-474(nm) | |||
OPS-T4016(7)SE | 20(mA) | ⋅Orange Red | 2.1~2.4(V) | 32.5mcd | 619-629(nm) | |||
OPS-T4016(7)SPG | 20(mA) | ⋅Pure Green | 3.0~3.4(V) | 300mcd | 515-530(nm) | |||
OPS-T4016(7)LR | 20(mA) | ⋅Red | 2.1~2.4(V) | 9mcd | 635-648(nm) | |||
OPS-T4016(7)W | 5(mA) | ⋅White | 2.9~3.2(V) | 200mcd | (X/Y)=(0.285/0.275) | |||
OPS-T4016(7)SY | 20(mA) | ⋅Yellow | 2.1~2.4(V) | 37.5mcd | 585-595(nm) | |||
OPS-T4016(7)SYG | 20(mA) | ⋅Yellow Green | 2.1~2.4(V) | 15mcd | 567-576(nm) |
Frequently Asked Questions

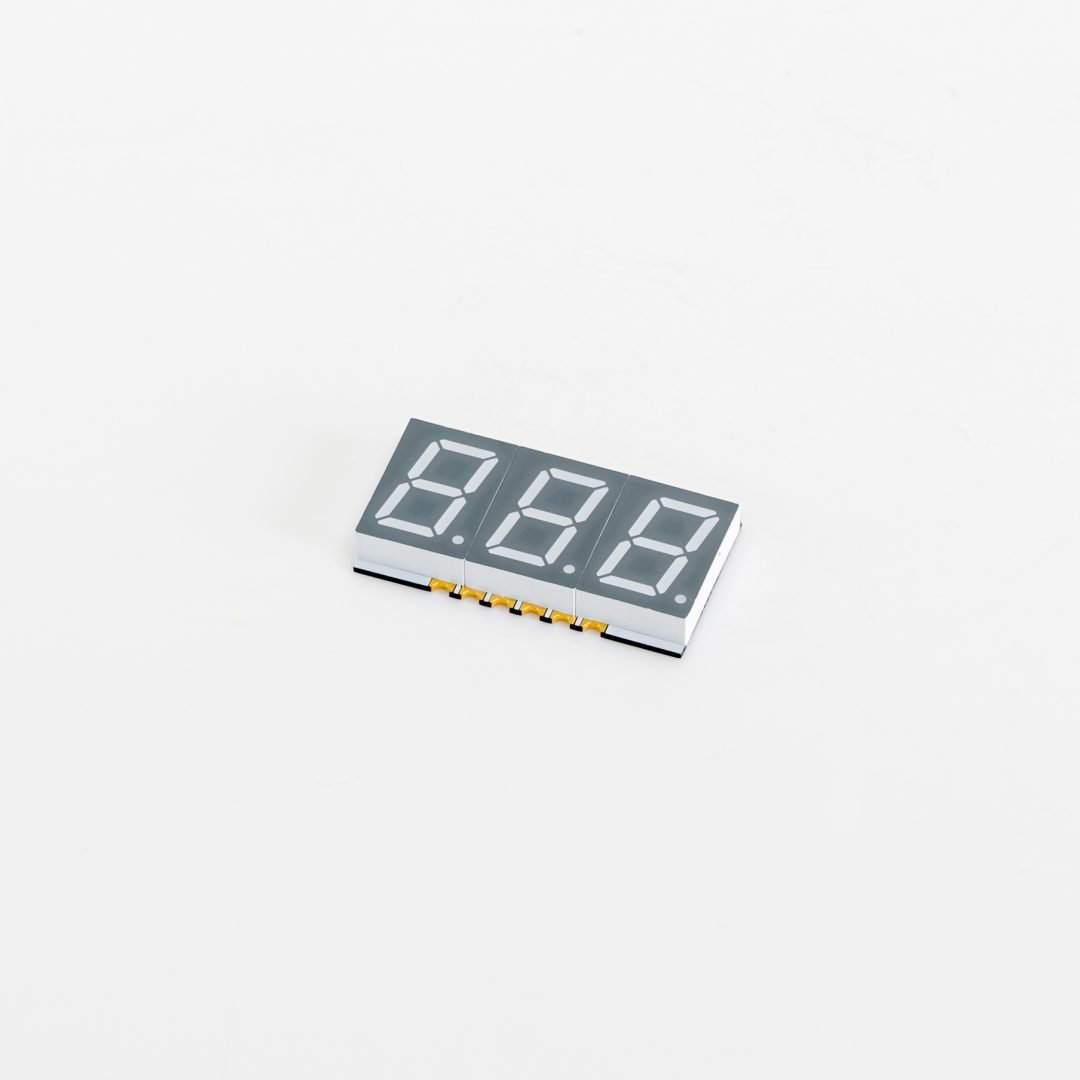

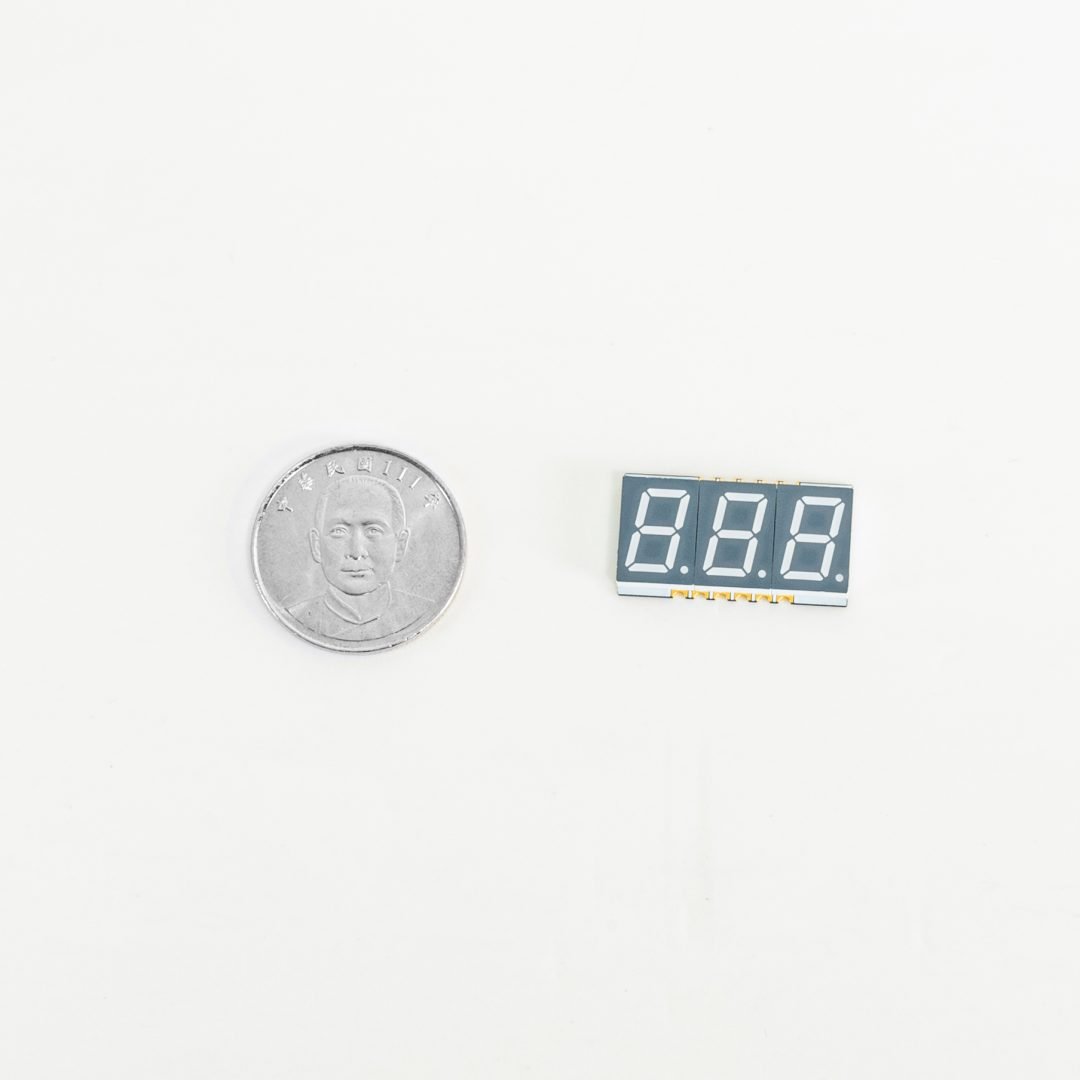

What are the dimensions of 0.4″ Triple Digit SMD LED 7-Segment Display?
Overall module size is 15 mm x 27.75 mm and 3.75 mm thick (digit height 0.4" (10.16 mm), 3 digits).
What color options does this series offer?
This series comes in 8 colors: Amber, Blue, Orange Red, Pure Green, Red, White, Yellow, Yellow Green.
What are the electrical characteristics?
Drive current: 20 mA (Amber, Blue, Orange Red, Pure Green, Red, Yellow, Yellow Green); 5 mA (White). Typical forward voltage: 2.0–2.4 V (Amber); 3.0–3.4 V (Blue, Pure Green); 2.1–2.4 V (Orange Red, Red, Yellow, Yellow Green); 2.9–3.2 V (White).
What luminous intensity can I expect?
Per-color typical luminosity: 37.5 mcd (Amber, Yellow); 52.5 mcd (Blue); 32.5 mcd (Orange Red); 300 mcd (Pure Green); 9 mcd (Red); 200 mcd (White); 15 mcd (Yellow Green).
What are the specs of the white variant?
The white variant (OPS-T4016(7)W) runs at 5 mA with forward voltage 2.9–3.2 V, typical luminosity 200 mcd, chromaticity (X/Y) (0.285/0.275).
