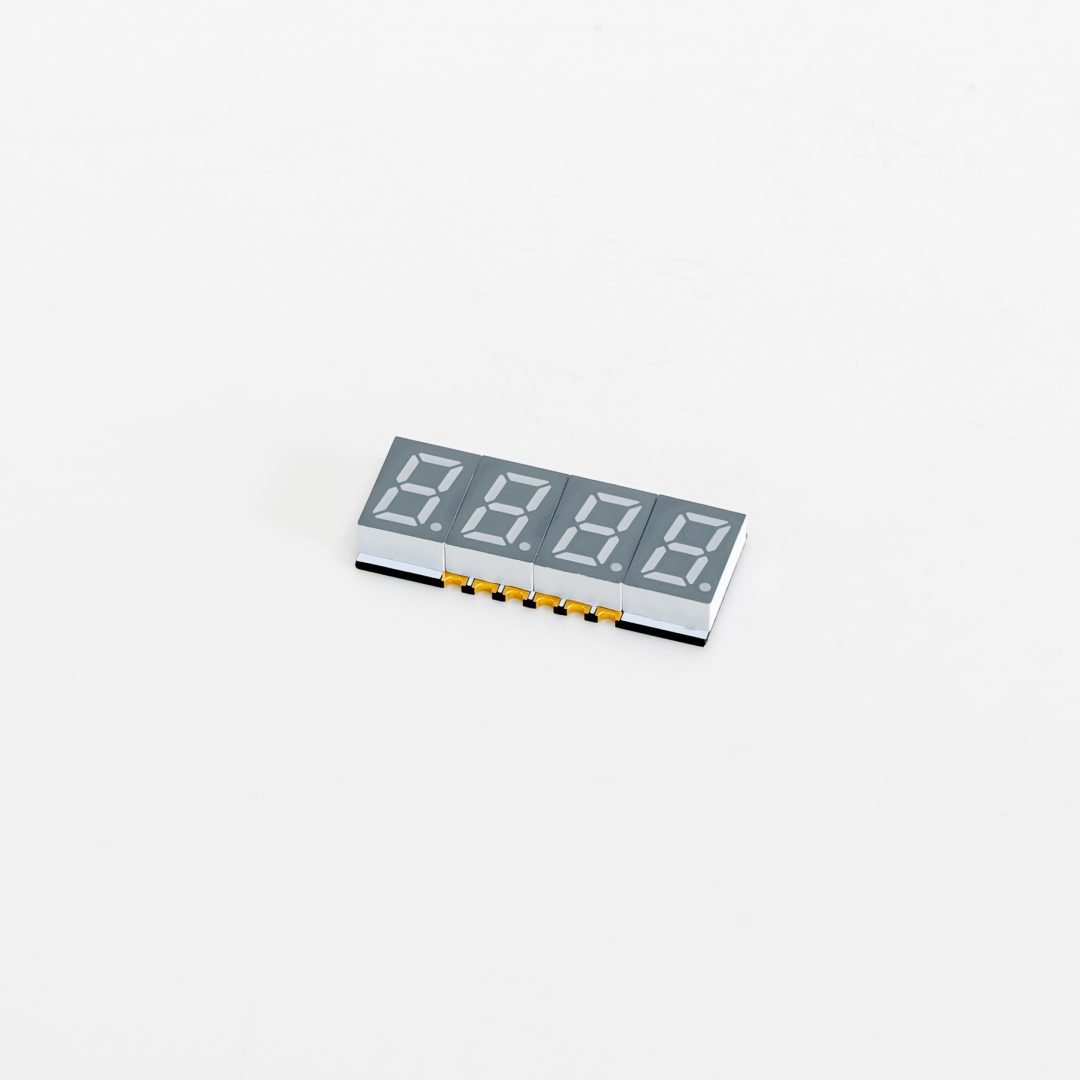

0.3" Quad Digit SMD LED 7-Segment Display | Diamond Seg.

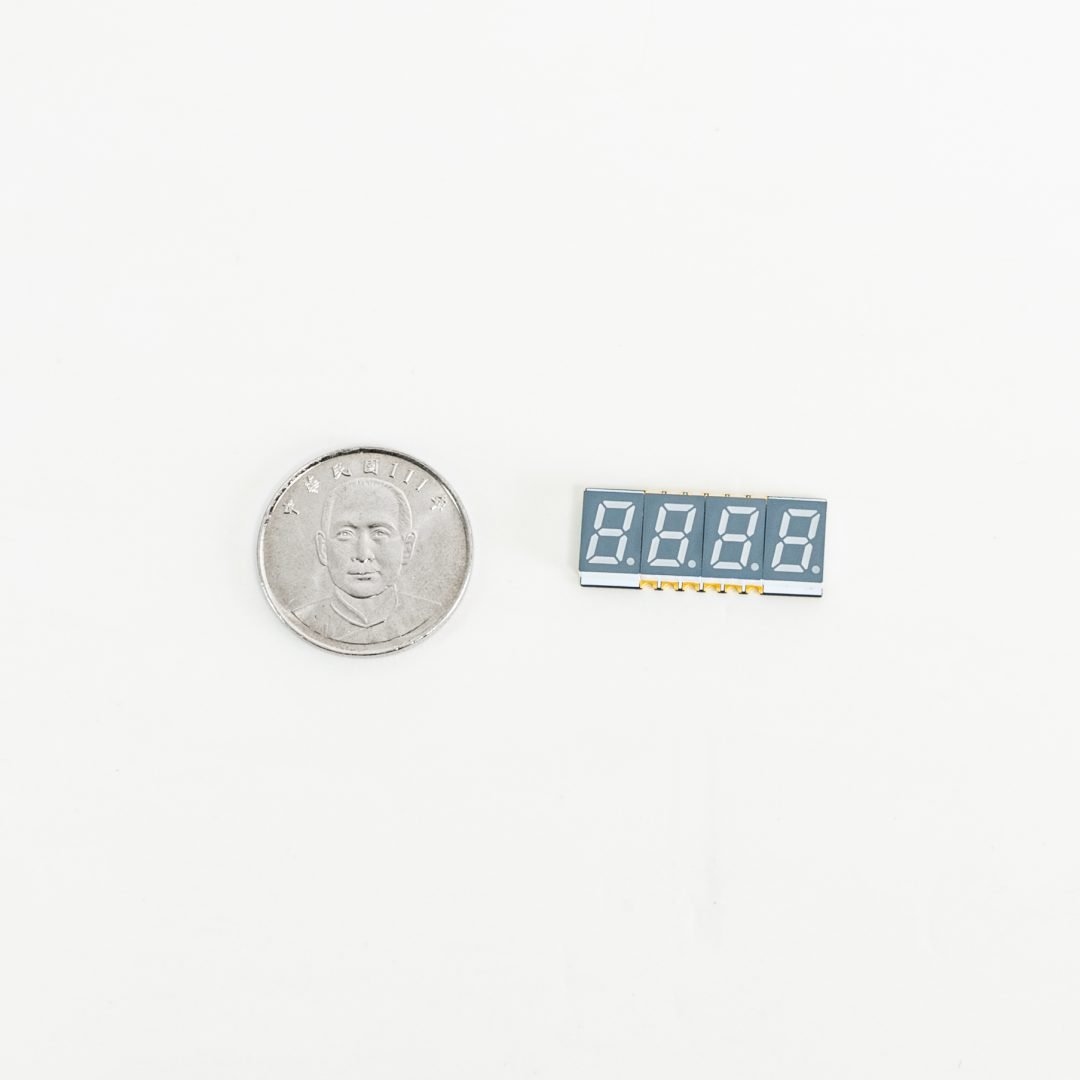

0.3" Quad Digit SMD LED 7-Segment Display | Diamond Seg. - product image 2

0.3″ Quad Digit SMD LED 7-Segment Display | Diamond Seg.

SKU: OPS-Q3014(5) Category: Polarity: OPS-Q3014 = Common Anode (CA); OPS-Q3015 = Common Cathode (CC)
Polarity digit in the part number: even = common anode, odd = common cathode.

Filters Sort results
Digit Height:
0.3" | 7.62(mm)
Kind of Display:
7-Segment Display
Mounting:
SMD (Surface Mount Device)
Display Thickness:
4.05mm
Display WxL:
12mm x 29.2mm
Number of Characters:
4

Description

>>Scroll Right to Learn More
Filters Sort results
SKU
Doc
Drive Current
Emitting Color
Forward Voltage
Luminosity
Dominant Wavelength / Chromaticity
QTY
Request
OPS-Q3014(5)SA
20(mA)
⋅Amber
2.0~2.4(V)
28.5mcd
600-614(nm)
OPS-Q3014(5)SB
20(mA)
⋅Blue
3.0~3.4(V)
38mcd
464-474(nm)
OPS-Q3014(5)SE
20(mA)
⋅Orange Red
2.1~2.4(V)
30mcd
619-629(nm)
OPS-Q3014(5)SPG
20(mA)
⋅Pure Green
3.0~3.4(V)
207.5mcd
515-530(nm)
OPS-Q3014(5)LR
20(mA)
⋅Red
2.1~2.4(V)
11mcd
635-648(nm)
OPS-Q3014(5)SY
20(mA)
⋅Yellow
2.1~2.4(V)
30mcd
585-595(nm)
OPS-Q3014(5)SYG
20(mA)
⋅Yellow Green
2.1~2.4(V)
10mcd
567-576(nm)

Frequently Asked Questions

What are the module’s physical specs?

Reserve 12 mm x 29.2 mm of board space; display thickness 4.05 mm (digit height 0.3" (7.62 mm), 4 digits).

What color options does this series offer?

7 variants are offered: Amber, Blue, Orange Red, Pure Green, Red, Yellow, Yellow Green.

What drive current and forward voltage does it use?

For your driver design: all variants are rated at 20 mA drive current; typical forward voltage: 2.0–2.4 V (Amber); 3.0–3.4 V (Blue, Pure Green); 2.1–2.4 V (Orange Red, Red, Yellow, Yellow Green).

How bright is each color variant?

Per-color typical luminosity: 28.5 mcd (Amber); 38 mcd (Blue); 30 mcd (Orange Red, Yellow); 207.5 mcd (Pure Green); 11 mcd (Red); 10 mcd (Yellow Green).

Who makes this part and how do I order?

Datasheets are linked per variant (Documentation), and the Add to Quote button sends your request straight to Opto Plus LED in Taiwan.

Additional information

Emitting Color

Amber, Blue, Orange Red, Pure Green, Red, White, Yellow, Yellow Green

Drive Current

20(mA), 5(mA)

Forward Voltage

1.8-2.2V, 1.8V-2.2V, 10.0V-12.0V, 10.5V-12.0V, 10.8V-13.2V, 11.2V-12.8V, 12.0V-12.8V, 12.0V-13.2V, 12.6V-14.4V, 12.6V-16.1V, 12V-14.4V, 14.0V-16.0V, 14.0V-16.8V, 14.7V-16.8V, 15.0V-16.0V, 16.8V-19.2V, 18V-19.2V, 2.0-2.4V, 2.0-2.5V, 2.0~2.4(V), 2.0V-2.4V, 2.0V-2.6V, 2.1-2.5V, 2.1~2.4(V), 2.1V-2.4V, 2.1V-2.6V, 2.2-2.6V, 2.5V-3.6V, 2.8V-3.2V, 2.9~3.2(V), 2.9V-3.2V, 21.0V-22.4V, 3.0~3.4(V), 3.0V-3.3V, 3.0V-3.4V, 3.2-3.6V, 3.2-3.8V, 3.2V-4.0V, 3.6V-4.4V, 4.0V-4.8V, 4.2V-4.8V, 5.4V-6.6V, 5.6V-6.4V, 6.0V-6.8V, 6.0V-7.2V, 6.3V-7.2V, 7.2V-8.8V, 7.2V-9.2V, 8.0V-9.6V, 8.4V-9.6V, 9.0V-10.2V, 9.0V-11.0V

Luminosity(Typ.)

100mcd, 10mcd, 110mcd, 11mcd, 12.5mcd, 120mcd, 13.7mcd, 145mcd, 15mcd, 16000mcd, 160mcd, 16mcd, 180mcd, 190mcd, 195mcd, 198mcd, 200mcd, 205mcd, 207.5mcd, 20mcd, 210mcd, 25000mcd, 250mcd, 25mcd, 2750mcd, 28.5mcd, 280mcd, 28mcd, 300mcd, 30mcd, 312.5mcd, 32.5mcd, 35mcd, 37.5mcd, 38mcd, 3900mcd, 3mcd, 4000mcd, 400mcd, 40mcd, 47.5mcd, 50mcd, 52.5mcd, 550mcd, 55mcd, 5mcd, 60mcd, 6480mcd, 70mcd, 72.8mcd, 80mcd, 8mcd, 90mcd, 9mcd

Dominant Wavelength / Chromaticity Coordinate

(X/Y)=(0.285/0.275), 400nm, 464-474(nm), 464~474(nm), 468nm, 470nm, 472nm, 500nm, 515-530(nm), 515~530(nm), 520nm, 522nm, 525nm, 527nm, 530nm, 567-576(nm), 567~576(nm), 568nm, 572nm, 573nm, 585-595(nm), 585~595(nm), 589nm, 590nm, 593nm, 600-614(nm), 600~614(nm), 601-613(nm), 601-614(nm), 612nm, 619-629(nm), 619~629(nm), 632nm, 635-648(nm), 635~648(nm), 645nm, 650nm, 655nm, 660nm, 700nm, x-0-265, x-0-29, X: 0.265 Y:0.25, X: 0.28 Y: 0.29, X: 0.285, X: 0.285 Y: 0.275, X: 0.285 Y:0.275, X: 0.29 Y:0.285, X: 0.31 Y: 0.32, X:0.285 Y:0.275, X:0.29 Y: 0.28, Y: 0.275, Y)=(0.285

Mounting

SMD (Surface Mount Device)

Kind of display

7-Segment Display

Number of Characters

4

Display Thickness

1, 18.70mm x 9.80mm, 3.75mm, 3.8mm, 3mm, 4.05mm, 5.10mm, 6.10, 6.10mm, 7mm, 8.00mm, 8.50mm

Display WxL

10mm x 14.4mm, 10mm x 21.6mm, 10mm x 28.8mm, 10mm x 7.2mm, 11mm x 22.5mm, 11mm x 7.5mm, 12.70 x 7.60, 12.70mm x 7.60mm, 12mm x 14.6mm, 12mm x 15mm, 12mm x 21.9mm, 12mm x 29.2mm, 12mm x 30mm, 12mm x 7.3mm, 13mm x 10mm, 14.00mm x 7.50mm, 14.4 x 10mm, 14.6 x 12mm, 15 x 12mm, 17.1mm x 12.4mm, 17.6mm x 12.4mm, 18.5 x 15mm, 18.70mm x 9.80mm, 19.00mm x 12.60mm, 19.6 x 15mm, 21.6 x 10mm, 21.9 X 12mm, 22.5 X 11mm, 25.00mm x 18.00mm, 27.70mm x 20.00mm, 27.75 x 15mm, 28.8 x 10mm, 29.4 x 15mm, 30 x 12mm, 30.16 x 11mm, 37 x 15mm, 39.2 x 15mm, 7.2 x 10mm, 7.3 x 12mm, 7.5 x 11mm, 9.25 x 15mm, 9.8 x 15mm, test

Digit Height

0.3" | 7.62(mm)

Ordering terms

MOQTypically 1,000–10,000 pcs, quoted per part number; smaller quantities are welcome, with pricing based on volume
Production lead time6–8 weeks
Sample lead timeStandard 2–3 weeks; modified standard 2–6 weeks; full custom 6–8 weeks (6–8 weeks when materials are short)
SamplesGenerally charged; shipping paid by the customer
Tooling (full custom)USD 3,600–10,000, depending on the design
Quotation replyWithin 5 working days

Quality & support

  • 350 ppm quality level in mass production
  • ISO 9001:2015 quality management system
  • 8D report within 5 working days of receiving returned units
  • PCN / EOL notice 6 months in advance
  • 1-year warranty from the date of receipt

Typical terms; final terms are confirmed in each quotation.

Full Part Numbers

Bracket notation in the table above is shorthand. The orderable part numbers are (click a part number for its datasheet):

OPS-Q3014SA, OPS-Q3015SA, OPS-Q3014SB, OPS-Q3015SB, OPS-Q3014SE, OPS-Q3015SE, OPS-Q3014SPG, OPS-Q3015SPG, OPS-Q3014LR, OPS-Q3015LR, OPS-Q3014SY, OPS-Q3015SY, OPS-Q3014SYG, OPS-Q3015SYG
