Description
SKU | Doc | Drive Current | Emitting Color | Forward Voltage | Luminosity | Dominant Wavelength / Chromaticity | QTY | Request |
|---|---|---|---|---|---|---|---|---|
OPS-F3010(1)W3 | 5(mA) | ⋅White | 2.9V-3.2V | 150mcd | (X/Y)=(0.3/0.2963) | |||
OPS-F3010(1)SA | 20(mA) | ⋅Amber | 2.0~2.4(V) | 28.5mcd | 601-613(nm) | |||
OPS-F3010(1)SB | 20(mA) | ⋅Blue | 3.0~3.4(V) | 38mcd | 464-474(nm) | |||
OPS-F3010(1)SE | 20(mA) | ⋅Orange Red | 2.1~2.4(V) | 30mcd | 619-629(nm) | |||
OPS-F3010(1)SPG | 20(mA) | ⋅Pure Green | 3.0~3.4(V) | 207.5mcd | 515-530(nm) | |||
OPS-F3010(1)LR | 20(mA) | ⋅Red | 2.1~2.4(V) | 5mcd | 635-648(nm) | |||
OPS-F3010(1)SY | 20(mA) | ⋅Yellow | 2.1~2.4(V) | 30mcd | 585-595(nm) | |||
OPS-F3010(1)SYG | 20(mA) | ⋅Yellow Green | 2.1~2.4(V) | 10mcd | 567-576(nm) |
Frequently Asked Questions
What module size should I allow for on the PCB?

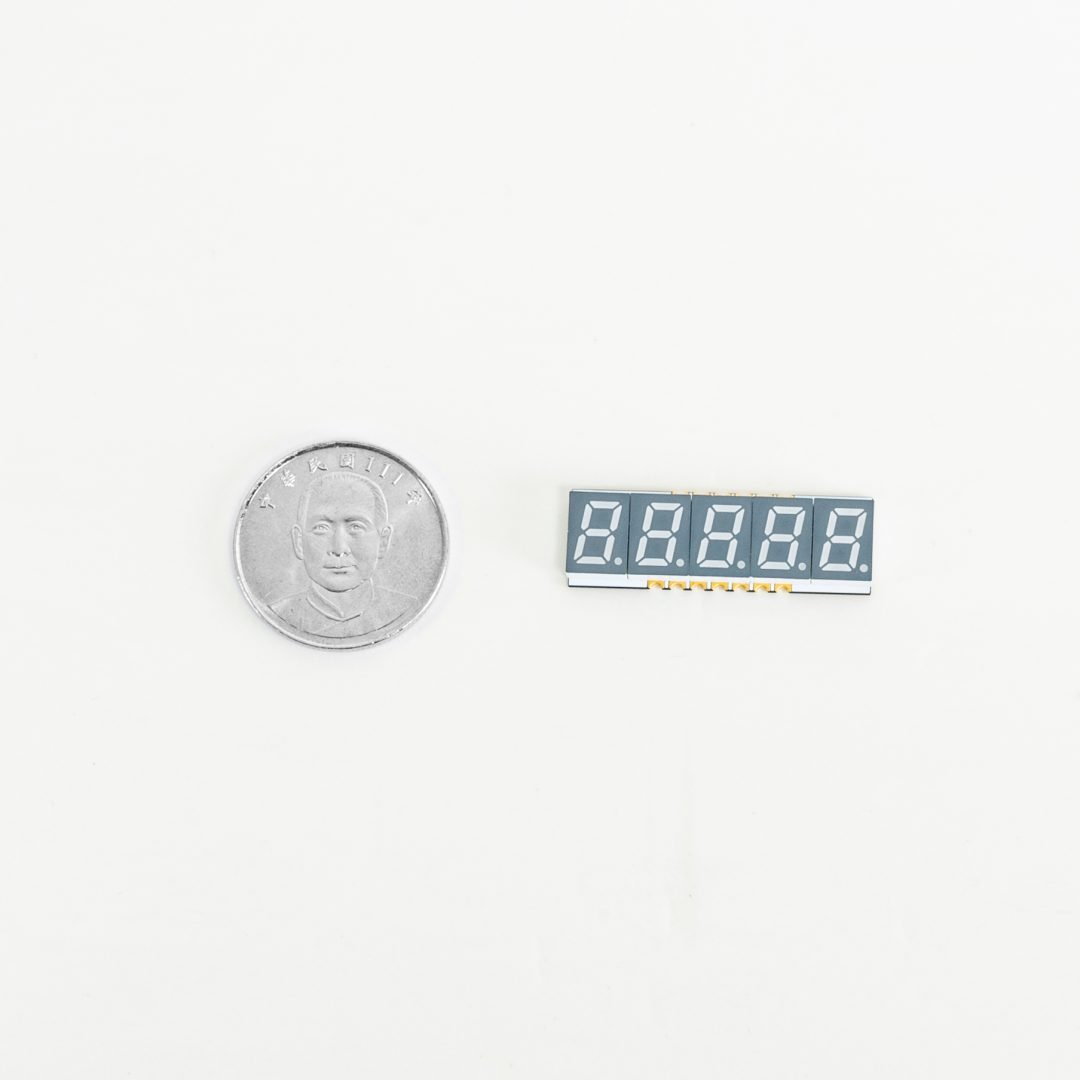

Overall module size is 12 mm x 32.5 mm and 4.05 mm thick (digit height 0.3" (7.62 mm)).
Which color variants can I order?
Available emitting colors: White, Amber, Blue, Orange Red, Pure Green, Red, Yellow, Yellow Green.
What forward voltage should I design for?
For your driver design: drive current: 5 mA (White); 20 mA (Amber, Blue, Orange Red, Pure Green, Red, Yellow, Yellow Green); typical forward voltage: 2.9 V-3.2 V (White); 2.0–2.4 V (Amber); 3.0–3.4 V (Blue, Pure Green); 2.1–2.4 V (Orange Red, Red, Yellow, Yellow Green).
What luminous intensity can I expect?
Typical luminosity: 150 mcd (White); 28.5 mcd (Amber); 38 mcd (Blue); 30 mcd (Orange Red, Yellow); 207.5 mcd (Pure Green); 5 mcd (Red); 10 mcd (Yellow Green).
What are the specs of the white variant?
The white variant (OPS-F3010(1)W3) runs at 5 mA with forward voltage 2.9 V-3.2 V, typical luminosity 150 mcd, chromaticity (X/Y) (0.3/0.2963).
