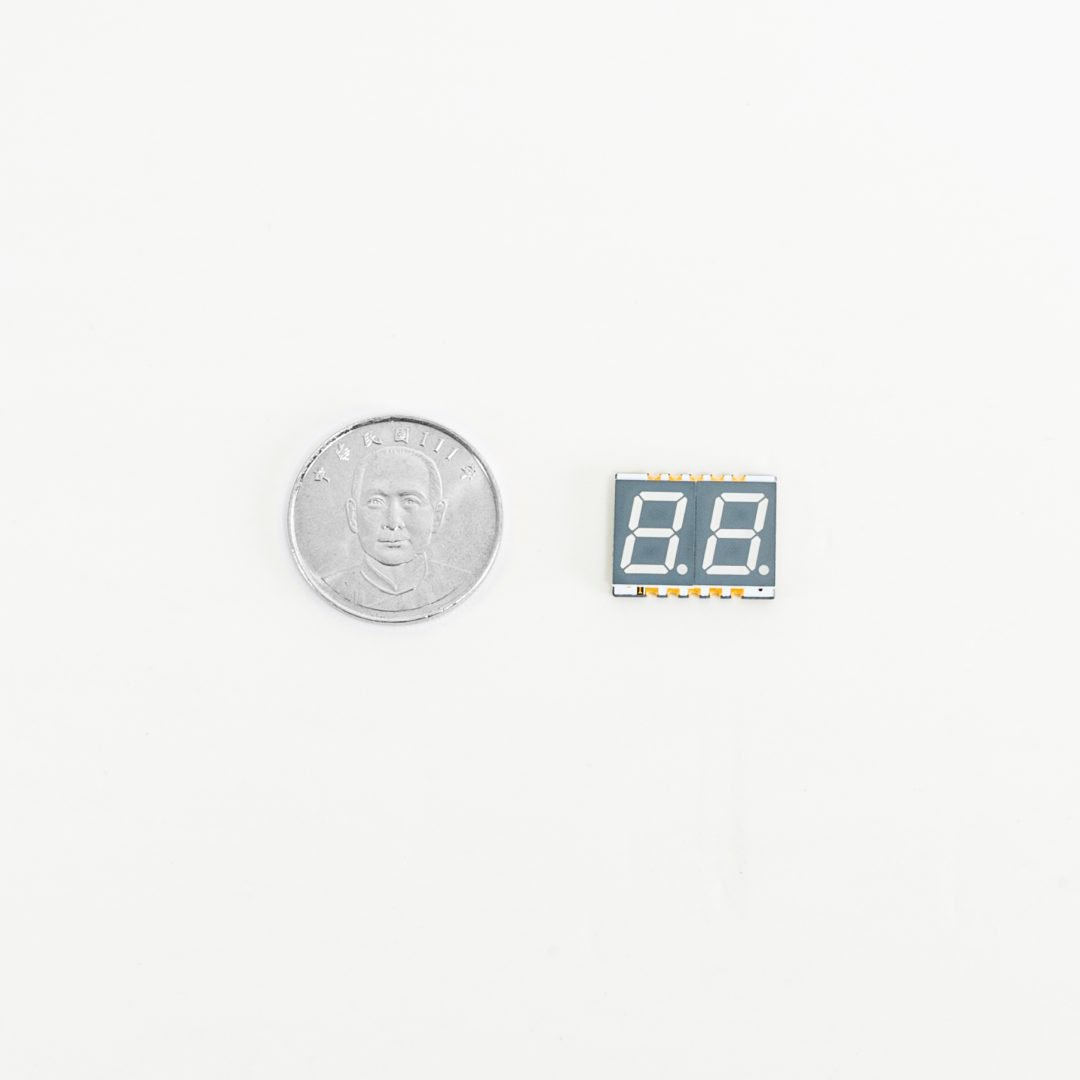

0.39" Dual Digit Super Thin SMD LED 7-Segment Display | Diamond Seg. | Display thickness 2.6mm

0.39" Dual Digit Super Thin SMD LED 7-Segment Display | Diamond Seg. | Display thickness 2.6mm - product image 2

0.39″ Dual Digit Super Thin SMD LED 7-Segment Display | Diamond Seg. | Display thickness 2.6mm

SKU: OPS-D3920(1)xx-2-STT(R)-1.0-G(B)W Category: LED Display


Digit Height: 0.39" l 10.00(mm) Kind of Display: 7-Segment Display Mounting: Super Thin SMD (Surface Mount Device) Display Thickness: 2.60mm Display WxL: 19.6 x 15mm Number of Characters: 2

Description
Additional information

Description

SKU	Doc	Drive Current	Emitting Color	Forward Voltage	Luminosity	Dominant Wavelength / Chromaticity	Request
OPS-D3920(1)LA-2-STT(R)-1.0-G(B)W	Documentation	20mA	⋅Amber	2.0V	15mcd	610nm	Add to quote Add to quote Product added
OPS-D3920(1)SB-2-STT(R)-1.0-G(B)W	Documentation	20mA	⋅Blue	3.0V	30mcd	470nm	Add to quote Add to quote Product added
OPS-D3920(1)SPG-2-STT(R)-1.0-G(B)W	Documentation	20mA	⋅Pure Green	3.0V	220mcd	525nm	Add to quote Add to quote Product added
OPS-D3920(1)YG-2-STT(R)-1.0-G(B)W	Documentation	20mA	⋅Yellow Green	2.1V	7mcd	570nm	Add to quote Add to quote Product added
OPS-D3920(1)LY-2-STT(R)-1.0-G(B)W	Documentation	20mA	⋅Yellow	2.1V	25mcd	590nm	Add to quote Add to quote Product added
OPS-D3920(1)LE-2-STT(R)-1.0-G(B)W	Documentation	20mA	⋅Orange Red	2.1V	30mcd	625nm	Add to quote Add to quote Product added

Frequently Asked Questions

What module size should I allow for on the PCB?

Reserve 19.6 x 15 mm of board space; display thickness 2.60 mm (digit height 0.39" l 10.00 mm, 2 digits).

Which color variants can I order?

You can order 6 color options: Amber, Blue, Pure Green, Yellow Green, Yellow, Orange Red.

What are the electrical characteristics?

For your driver design: all variants are rated at 20 mA drive current; typical forward voltage: 2.0 V (Amber); 3.0 V (Blue, Pure Green); 2.1 V (Yellow Green, Yellow, Orange Red).

How bright are the different colors?

Per-color typical luminosity: 15 mcd (Amber); 30 mcd (Blue, Orange Red); 220 mcd (Pure Green); 7 mcd (Yellow Green); 25 mcd (Yellow).

How thin is this display?

Display thickness is just 2.60 mm — a Super Thin SMD package, slimmer than standard SMD or through-hole modules.

Additional information

Emitting Color	Amber, Blue, Orange Red, Pure Green, Red, White, Yellow, Yellow Green
Drive Current	100(mA), 10mA, 120(mA), 2(mA), 20(mA), 20mA, 2mA, 30mA, 5(mA), 5mA, 60mA, LED Driver control, R=10ma\|PG=B=2ma, Red (5mA), Pure Green (2mA), Blue (2mA), Red: 5mA, Green: 2mA, Blue: 2mA
Forward Voltage	1.1-1.7(V), 1.2~1.8(V), 1.8-2.2V, 1.8-2.4(V), 1.80V, 1.8V-2.2V, 1.90V, 10.0-12.0V, 10.0V-12.0V, 10.5-12V, 10.5V-12.0V, 10.8V-13.2V, 11.2-12.8(V), 11.2-12.8V, 11.2V-12.8V, 11.6-12.8(V), 12.0-12.8V, 12.0-13.2V, 12.0-14.4V, 12.0V-12.8V, 12.0V-13.2V, 12.6-14.4V, 12.6V-14.4V, 12.6V-16.1V, 12V-14.4V, 14-16V, 14.0-16.8V, 14.0V-16.0V, 14.0V-16.8V, 14.5-16(V), 14.7-16.8V, 14.7V-16.8V, 15.0-16.0V, 15.0V-16.0V, 16.8-19.2V, 16.8V-19.2V, 18.0-19.2V, 18V-19.2V, 2.0-2.4(V), 2.0-2.4V, 2.0-2.5V, 2.0-2.6(V), 2.0~2.4(V), 2.0~2.6(V), 2.0V, 2.0V-2.4V, 2.0V-2.6V, 2.1, 2.1-2.5(V), 2.1-2.5V, 2.1~2.4(V), 2.1~2.6(V), 2.1V, 2.1V-2.4V, 2.1V-2.6V, 2.2-2.4(V), 2.2-2.5V, 2.2-2.6V, 2.5-3.1(V), 2.50V, 2.5V-3.6V, 2.6-3.2(V), 2.60V, 2.8-3.1(V), 2.8-3.2(V), 2.80V, 2.85V, 2.8V-3.2V, 2.9-3.25(V), 2.9~3.2(V), 2.9~3.5(V), 2.9~3.7(V), 2.9V, 2.9V-3.2V, 20.3-22.4(V), 21.0-22.4V, 21.0V-22.4V, 3.0~3.4(V), 3.0V, 3.0V-3.3V, 3.0V-3.4V, 3.1-3.7(V, 3.1-3.7(V), 3.1-3.9(V), 3.2-3.5(V, 3.2-3.5(V), 3.2-3.6(V), 3.2-3.6V, 3.2-3.8(V), 3.2-3.8V, 3.2~3.4(V), 3.2~3.7(V), 3.2~3.9(V), 3.2V-4.0V, 3.3-3.9(V), 3.3~3.7(V), 3.3~3.9(V), 3.3V, 3.6V-4.4V, 3.7-4.1(V), 3V, 4.0-4.8(V), 4.0-4.8V, 4.0V-4.8V, 4.2-4.8(V), 4.2-4.8V, 4.2V-4.8V, 5.4V-6.6V, 5.6-6.4(V), 5.6-6.4V, 5.6V-6.4V, 5.8-6.4(V), 5.8-6.4V, 6.0-6.8(V), 6.0-6.8V, 6.0-7.2V, 6.0V-6.8V, 6.0V-7.2V, 6.3-7.2V, 6.3V-7.2V, 7.2V-8.8V, 7.2V-9.2V, 8.0-9.6V, 8.0V-9.6V, 8.4-9.6V, 8.4V-9.6V, 8.7-9.6(V), 9.0-10.2V, 9.0V-10.2V, 9.0V-11.0V, All Supply voltage=5V, Blue:2.7-3.9V, Red:1.6-2.0V, Follow spec., Green: 2.8-3.2V, Red: 2.1-2.4V, Green:2.7-3.9V, Red:1.6-2.0V, R=2.1V\|G=B=2.8V, R=2.2V\|PG=2.9V\|B=3.0V, Red: 1.5V-2.7V, Green: 2.0V-3.3V, Blue: 2.0V-3.3V, Red: 1.5V-2.7V, Green: 2.1V-3.3V, Blue: 2.3V-3.5V, Red: 1.9-2.4V, Pure Green: 2.5-3.1V, Blue: 2.5-3.1V, Red: 1.9V, Green: 2.5V, Blue: 2.5V, Red:2V Pure Green:3V Blue:3V, RGB:4.5-5.5V, White:2.6-3.2V, Red:1.6-2.0V, Yellow:1.6-2.0V, Blue:2.7-3.9V, Yellow:1.6-2.0V, Green:2.7-3.9V, Yellow:1.6-2.0V, Red:1.6-2.0V
Luminosity(Typ.)	0.85mW/sr, 1-5 (mW/sr), 1.3mW/sr, 1000mcd, 100mcd, 102mcd, 107.5mcd, 10mcd, 11.25mcd, 1100mcd, 110mcd, 112.5mcd, 1125mcd, 11mcd, 12.5mcd, 1200mcd, 120mcd, 12mcd, 13.7mcd, 130mcd, 137.5mcd, 1400mcd, 140mcd, 145mcd, 14mcd, 150 mcd, 1500mcd, 150mcd, 15mcd, 16000mcd, 160mcd, 16mcd, 170mcd, 18.5mcd, 1800mcd, 180mcd, 18mcd, 1900mcd, 190mcd, 195mcd, 198mcd, 2000mcd, 200mcd, 205mcd, 207.5mcd, 20mcd, 210mcd, 2200mcd, 220mcd, 2250mcd, 230mcd, 23mcd, 240mcd, 25000mcd, 2500mcd, 250mcd, 2520mcd, 25mcd, 265mcd, 2685mcd, 2750mcd, 28.5mcd, 2800mcd, 280mcd, 285mcd, 28mcd, 3.95mcd, 3000mcd, 300mcd, 30mcd, 312.5mcd, 32.5mcd, 320mcd, 33.5mcd, 330mcd, 350mcd, 35mcd, 360mcd, 37.5mcd, 3750mcd, 37mcd, 3800mcd, 38mcd, 3900mcd, 3mcd, 4000mcd, 400mcd, 40mcd, 420mcd, 425mcd, 440mcd, 450mcd, 45mcd, 47.5mcd, 475mcd, 47mcd, 500mcd, 50mcd, 51.5mcd, 52.5mcd, 520mcd, 525mcd, 530mcd, 550mcd, 55mcd, 560mcd, 57.5mcd, 5mcd, 60mcd, 62.5mcd, 6480mcd, 6mcd, 7.15mcd, 7000mcd, 700mcd, 70mcd, 71.5mcd, 715mcd, 72.5mcd, 72.8mcd, 770mcd, 7mcd, 80mcd, 8mcd, 900mcd, 90mcd, 97.5mcd, 9mcd, Blue:192mcd, Red:425mcd, Green: 1400mcd, Red: 1000mcd, Green: 400mcd, Red: 300mcd, Green: 700mcd, Red: 500mcd, Green:250mcd, Red:425mcd, R=112mcd\|G=225mcd\|B=72mcd, R=165mcd\|PG=440mcd\|B=85mcd, R=32mcd\|PG=46mcd\|B=8mcd, R=65mcd\|G=85mcd\|B=20mcd, Red: 13mcd, Green: 17mcd, Blue: 3mcd, Red: 32mcd, Green: 46mcd, Blue: 8mcd, Red: 32mcd, Pure Green: 46mcd, Blue: 8mcd, Red: 60mcd, Green: 150mcd, Blue: 30mcd, Red: 80-160mcd, Green: 180-260mcd, Blue: 30-70mcd, Red:66mcd, Green:101mcd, Blue:31mcd, White:2000mcd, Red:425mcd, Yellow Green: 25mcd, Red: 180mcd, Yellow Green: 35mcd, Red: 200mcd, Yellow Green: 60mcd, Red: 400mcd, Yellow Green:25mcd, Red : 140mcd, Yellow:336mcd, Blue:192mcd, Yellow:336mcd, Green:250mcd, Yellow:336mcd, Red:425mcd
Dominant Wavelength / Chromaticity Coordinate	(X/Y)=(0.3/0.2963), 420nm, 460-470(nm), 464nm, 517nm, 5250K, 529nm, 531nm, 570nm, 571nm, 588nm, 591nm, 594nm, 600-612(nm), 605nm, 610nm, 611nm, 621nm, 624nm, 625nm, 630nm, 635-646(nm), 639nm, 640nm, 850nm, 940nm, Blue:470nm, Red:624nm, Green: 515-530nm, Red: 618-628nm, Green:529nm, Red:624nm, R=621nm\|PG=522nm\|B=470nm, R=621nm\|PG=530nm\|B=469nm, R=622nm\|PG=525nm\|B=466nm, R=624mcd\|PG=523mcd\|b=470mcd, R=624nm\|PG=526nm\|B=470nm, Red: 618-625nm, Green: 520-535nm, Blue: 460-474nm, Red: 620nm, Green: 533nm, Blue: 470nm, Red: 621nm (Typ.) Pure Green: 530nm (Typ.) Blue: 469nm (Typ.), Red: 621nm, Green: 530nm, Blue: 469nm, Red: 622nm, Green: 525nm, Blue: 466nm, Red: 622nm, Green: 533nm, Blue: 470nm, Red:618-625nm, Green:518-535nm, Blue:460-474nm, White:0.265/0.275, Red:624nm, X: 0.265, Y: 0.25, X: 0.285 Y:0.265, X: 0.29 Y: 0.2825, X: 0.30 Y: 0.296, X: 0.315 Y: 0.315, X: 0.433 Y: 0.393, X:0.27 Y:0.255, X:0.3 Y:0.2963, X:0.31 :0.31, X:0.32 Y:0.32, Yellow Green: 567-576nm, Red: 619-629nm, Yellow:589nm, Blue:470nm, Yellow:589nm, Green:529nm, Yellow:589nm, Red:624nm, (X/Y)=(0.285/0.275), 400nm, 460-474(nm), 460-475(nm), 464-474(nm), 464~474(nm), 465nm, 466-474(nm), 468nm, 470nm, 472nm, 500nm, 505nm, 515-530(nm), 515~530(nm), 520nm, 522nm, 525nm, 527nm, 530nm, 567-576(nm), 567~576(nm), 568nm, 572nm, 573nm, 585-595(nm), 585~595(nm), 589nm, 590nm, 593nm, 600-610(nm), 600-614(nm), 600~614(nm), 601-613(nm), 601-614(nm), 606-630(nm), 612nm, 616-630nm, 619-629(nm), 619~629(nm), 632nm, 635-648(nm), 635~648(nm), 645nm, 650nm, 655nm, 660nm, 700nm, x-0-265, x-0-29, X: 0.265 Y:0.25, X: 0.28 Y: 0.29, X: 0.285, X: 0.285 Y: 0.275, X: 0.285 Y:0.275, X: 0.29 Y:0.285, X: 0.31 Y: 0.32, X:0.285 Y:0.275, X:0.29 Y: 0.28, Y: 0.275, Y)=(0.285
Mounting	Super Thin SMD (Surface Mount Device)
Kind of display	7-Segment Display
Number of Characters	2
Display Thickness	1, 10.00mm, 10.20mm, 10.5mm, 11mm, 12.00mm, 12.50mm, 12.5mm, 12mm, 13.00mm, 13mm, 14.00mm, 15mcd, 15mm, 16.2mm, 18.70mm x 9.80mm, 2.10mm, 2.30mm, 2.5mm, 2.60mm, 25.00mm x 19.00mm, 3.10mm, 3.30mm, 3.75mm, 3.85mm, 3.8mm, 30.50mm x 13.00mm, 3mm, 4.05mm, 5.10mm, 5.4mm, 5.80mm, 5.90mm, 6.00mm, 6.10, 6.10mm, 6.2mm, 6.30mm, 6.36mm, 6.50mm, 6.5mm, 6.8mm, 6.9mm, 7.00mm, 7.20mm, 7.50mm, 7.70mm, 7.80mm, 7.90mm, 7mm, 8.00mm, 8.30mm, 8.40mm, 8.50mm, 8.80mm, 9.00mm, 9.20mm, 9.50mm, 9mm
Display WxL	10.00mm x 15.00mm, 10.00mm x 22.60mm, 10.00mm x 32.10mm, 10.10mm x 25.50mm, 10.10mm x 30.40mm, 10.20mm x 25.60mm, 106.50mm x 76.00mm, 109.7mm x 70mm, 10mm x 10mm, 10mm x 14.4mm, 10mm x 21.6mm, 10mm x 28.8mm, 10mm x 7.2mm, 11.00 mm x 7.40mm, 11.00mm x 30.20mm, 11mm x 22.5mm, 11mm x 7.5mm, 12.70 x 7.60, 12.70mm x 7.60mm, 12.80mm x 30.02mm, 12.80mm x 40.18mm, 12.8mm x 19.9mm, 12.90mm x 9.63mm, 12.90mm x 9.80mm, 122mm x 90mm, 12mm x 14.6mm, 12mm x 15mm, 12mm x 21.9mm, 12mm x 29.2mm, 12mm x 30mm, 12mm x 32.5mm, 12mm x 7.3mm, 13.00mm x 30.50mm, 13.00mm x 7.60mm, 13mm x 10mm, 14.00mm x 15.00mm, 14.00mm x 22.50mm, 14.00mm x 30.00mm, 14.00mm x 7.50mm, 14.4 x 10mm, 14.6 x 12mm, 14.9mm x 11mm, 140mm x 105mm, 14mm x 15mm, 14mm x 30mm, 15 x 12mm, 15.00mm x 14.00mm, 15.00mm x 15.50mm, 15.00mm x 9.80mm, 15.2mm x 13mm, 15.50mm x 15.00mm, 15mm x 15.5mm, 15mm x 15mm, 15mm x 18.5mm, 15mm x 19.6mm, 15mm x 27.75mm, 15mm x 29.4mm, 15mm x 37mm, 15mm x 39.2mm, 15mm x 9.25mm, 15mm x 9.8mm, 16.00mm x 18.60mm, 16.00mm x 20.20mm, 16.00mm x 27.90mm, 16.00mm x 30.10mm, 16.00mm x 37.36mm, 16.00mm x 40.50mm, 16.9 x 13mm, 16.90mm x 20.20mm, 16mm x 20.1mm, 16mm x 9.8mm, 16mm x 9.mm, 17.1mm x 12.4mm, 17.1mm x 50.4mm, 17.5mm x 12.25mm, 17.5mm x 24.5mm, 17.5mm x 25mm, 17.5mm x 36.75mm, 17.5mm x 37.8mm, 17.5mm x 49mm, 17.6mm x 12.4mm, 17.80mm x 12.70mm, 17.80mm x 50.80mm, 17mm x 25mm, 18.5 x 15mm, 18.70mm x 9.80mm, 18.8mm x 23.8mm, 18.90mm x 12.60mm, 19.00 mm x 25.00mm, 19.00mm x 10.06mm, 19.00mm x 12.60mm, 19.00mm x 37.60mm, 19.00mm x 50.00mm, 19.00mm x 50.20mm, 19.00mm x 50.30mm, 19.00mm x 50.3mm, 19.00mm x 9.30mm, 19.6 x 15mm, 19.90mm x 12.80mm, 19.9mm x 16mm, 19mm x 10.06mm, 19mm x 10.6mm, 19mm x 12.5mm, 19mm x 25mm, 19mm x 37.5mm, 19mm x 50.5mm, 19mm x 50mm, 20.00mm x 12.50mm, 20.00mm x 20.00mm, 20.10mm x 16.00mm, 21.10mm x 50.40mm, 21.15mm x 25.10mm, 21.6 x 10mm, 21.9 X 12mm, 22.5 X 11mm, 23.5 x 18.8mm, 24.00mm x 14.80mm, 25.00mm x 16.00mm, 25.00mm x 18.00mm, 25.00mm x 18.60mm, 25.00mm x 19.00mm, 25.70mm x 71.60mm, 25.7mm x 71.6mm, 25.8mm x 35.8mm, 27.50mm x 59.30mm, 27.70mm x 20.00mm, 27.75 x 15mm, 28.00mm x 50.40mm, 28.00mm x 67.20mm, 28.8 x 10mm, 28mm x 16.8mm, 28mm x 33.6mm, 29.2 x 12mm, 29.4 x 15mm, 30 x 12mm, 30.00mm x 14.00mm, 30.16 x 11mm, 30.50mm x 13.00mm, 31.70mm x 31.70mm, 31.80mm x 22.75mm, 32.00mm x 32.00mm, 32.10mm x 10.00mm, 33.00mm x 22.50mm, 33.00mm x 23.00mm, 33mm x 22.4mm, 34mm x 24mm, 35.80mm x 25.80mm, 37 x 15mm, 37.40mm x 23.40mm, 37.90mm x 37.90mm, 39.10mm x 22.80mm, 39.2 x 15mm, 40.8mm x 28.8mm, 44mm x 30.6mm, 46.90 mm x 33.1mm, 47.8mm x 47.8mm, 53.10mm x 37.80mm, 56mm x 38mm, 60.20mm x 60.20mm, 60.60mm x 37.80mm, 69.70mm x 47.80mm, 69.7mm x 47.8mm, 7.00mm x 59.90mm, 7.2 x 10mm, 7.3 x 12mm, 7.5 x 11mm, 9.25 x 15mm, 9.8 x 15mm, 90.00mm x 62.40mm, 90mm x 62mm, Ø 54.3mm
Digit Height	0.39" l 10.00(mm)

Full Part Numbers

Bracket notation in the table above is shorthand. The orderable part numbers are (click a part number for its datasheet):

0.39″ Dual Digit Super Thin SMD LED 7-Segment Display | Diamond Seg. | Display thickness 2.6mm
