Quick answer
RGB SMD LED combines RGB (red, green, blue) technology with SMD packaging. This design improves durability and heat dissipation while enabling millions of colors through brightness adjustments. It’s a common choice for modern displays and lighting.
Table of Contents
What is RGB SMD LED?
RGB SMD LED is a product that combines three key technologies: “RGB,” “SMD,” and “LED.”
RGB stands for Red, Green, and Blue, the three primary colors. By adjusting the brightness of each color, millions of colors can be created. SMD (Surface-Mounted Diode) is a technology that mounts the light-emitting diode (LED) directly onto the surface of a circuit board, improving the durability and heat dissipation of the LED.
As a result, RGB SMD LED combines the advantages of three-color lighting and SMD packaging technology, making it a mainstream choice in modern lighting and display technology.
How Does RGB SMD LED Work?
RGB represents the three primary colors in the field of optics: Red, Green, and Blue. According to the ‘additive color model,’ which mixes colors by adding different wavelengths of light, these three colors can produce a wide range of colors by adjusting their brightness intensity. When red, green, and blue light are combined at equal intensity, they produce white light; if none are mixed, the result is black. This principle forms the foundation of color rendering in devices such as displays and projectors.
LED brightness adjustment – use Current to adjust
However, when using LEDs for color rendering and brightness adjustment, solely relying on current changes to control brightness poses certain challenges.

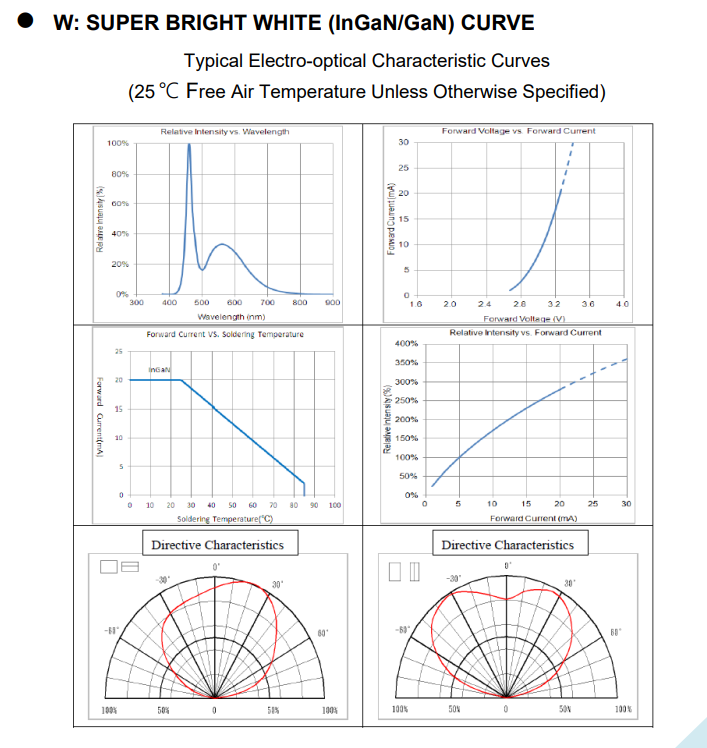

First, adjusting the current of an LED directly affects its brightness, but the relationship between current and brightness is not straightforward. For example, doubling the current does not result in doubling the brightness. This characteristic is known as ‘nonlinearity.’ It complicates the design of LED driver circuits, as precise control of the current is required to achieve the desired brightness.
Secondly, performance variations between mass-produced LED chips can lead to inconsistencies in the current-to-brightness curve, affecting the final brightness output. These variations are referred to as ‘tolerances,’ and in mass production, these tolerances need to be controlled within a reasonable range, typically between 3% and 5%. As a result, designing an LED driver circuit that can handle both the nonlinearity and meet the tolerance requirements adds significant complexity. This is one reason why adjusting LED brightness by changing the current is less commonly used.
LED brightness adjustment – use PWM (Pulse Width Modulation) to adjust
To address these challenges, PWM (Pulse Width Modulation) technology has become a more efficient alternative. PWM uses a stable current to drive the LED but controls its brightness by rapidly switching it on and off. This switching happens at a frequency so high that the human eye cannot perceive it, making the LED appear to be continuously lit.
By adjusting the duration of each on-off cycle, the brightness of the LED can be precisely controlled, making the relationship between brightness and current closer to linear. This method no longer relies on changing the current to control brightness; instead, it adjusts the ratio of on and off time within each cycle (duty cycle) to modify the average current flowing through the LED, thereby achieving precise brightness control.
Since PWM keeps the LED off for part of each cycle, it significantly improves energy efficiency compared to continuously using a fixed current to keep the LED lit.
Comparison Between RGB SMD LED and Single-color SMD LED
RGB SMD LEDs (Surface-Mount Light Emitting Diodes) differ significantly from single-color SMD LEDs in terms of structure and application. RGB SMD LEDs integrate red, green, and blue light sources into a single LED, allowing it to produce a wide range of colors by adjusting the brightness of these three light sources. This makes them ideal for use in displays, stage lighting, smart lighting systems, and other applications that require color variation. In contrast, single-color SMD LEDs contain only one fixed color light source and are commonly used for simple applications such as indicator lights or monochrome backlighting.
In addition to color diversity, another key difference between the two lies in their packaging size. Since RGB SMD LEDs need to accommodate three light source chips (red, green, and blue), they usually come in larger package sizes such as 2020, 0808, and 0404 to fit all three chips.
On the other hand, single-color SMD LEDs only need to house one chip, allowing for smaller package sizes like 0603, 0402, or 0201. While RGB SMD LEDs offer flexible color control, their circuit design and driving mechanism are more complex, and the cost is higher. In contrast, single-color SMD LEDs are easier to drive and have lower production costs.
SMD LED Package Codes
2020 RGB SMD LED with LED Driver IC Package VS 0808 RGB SMD LED with LED Driver IC VS 0404 RGB SMD LED with LED Driver IC Package
The packaging code of SMD (Surface-Mount Device) LEDs is used to describe the actual size of the LED component and typically consists of four digits. These digits represent the length and width of the package. Generally, larger packages are measured in millimeters. Due to their larger size, they can accommodate not only red, green, and blue LEDs but also white LEDs and built-in LED driver ICs, depending on the packaging. This type of packaging is commonly used in RGB, RGBW SMD LEDs, and high-brightness lighting applications with built-in LED driver ICs, making it especially suitable for applications that require color mixing.
In contrast, smaller packages are measured in inches. Due to size limitations, they typically can only house single-color LEDs, making them ideal for devices with limited space. These package codes allow designers to quickly understand the component’s size and select the appropriate LED based on the application requirements.
Millimeter-based and Inch-based SMD LED package codes rules
Common millimeter-based SMD LED package codes include 3528, 5050, and 2835, which represent 3.5mm x 2.8mm, 5.0mm x 5.0mm, and 2.8mm x 3.5mm, respectively. Inch-based package codes include 0603 and 1206, corresponding to 0.06 x 0.03 inches and 0.12 x 0.06 inches. These packages are widely used in various electronic devices.
Below is a list of common SMD LED package codes along with a comparison table of their corresponding inch and millimeter sizes. For example, the 0603 package code represents 0.06 x 0.03 inches, which converts to 1.524 x 0.762 millimeters. To simplify marking and production, some manufacturers round these numbers. For instance, our OPS-L08A16W-Z-5 has a package code of 0603 but is rounded to 1.6 x 0.8 millimeters. Another example is the 1210 SMD LED (inch) and 3025 SMD LED (mm), both of which are commonly used and have nearly identical sizes, leading to frequent confusion. Since SMD LED package codes exist in both inch and millimeter formats, while the codes give a rough indication of size, it is essential to consult the product datasheet provided by each manufacturer to verify the actual dimensions for practical applications.
| SMD LED naming code | Length (mm) | Width (mm) | Length (Inch) | Width (Inch) | Area (mm^2) |
| 7070 SMD LED(mm) | 7.000 | 7.000 | 0.276 | 0.276 | 49.000 |
| 5050 SMD LED(mm) | 5.000 | 5.000 | 0.197 | 0.197 | 25.000 |
| 5630 SMD LED(mm) | 5.600 | 3.000 | 0.220 | 0.118 | 16.800 |
| 3535 SMD LED(mm) | 3.500 | 3.500 | 0.138 | 0.138 | 12.250 |
| 3528 SMD LED(mm) | 2.500 | 2.800 | 0.138 | 0.110 | 9.800 |
| 2835 SMD LED(mm) | 2.800 | 3.500 | 0.110 | 0.138 | 9.800 |
| 3030 SMD LED(mm) | 3.000 | 3.000 | 0.118 | 0.118 | 9.000 |
| 1210 SMD LED(inch) | 3.048 | 2.540 | 0.120 | 0.100 | 7.742 |
| 3025 SMD LED(mm) | 3.000 | 2.500 | 0.118 | 0.098 | 7.500 |
| 4014 SMD LED(mm) | 4.000 | 1.400 | 0.157 | 0.055 | 5.600 |
| 1206 SMD LED (Inch) | 3.048 | 1.524 | 0.120 | 0.060 | 4.645 |
| 3014 SMD LED (mm) | 3.000 | 1.400 | 0.118 | 0.055 | 4.200 |
| 2020 SMD LED (mm) | 2.000 | 2.000 | 0.079 | 0.079 | 4.000 |
| 0805 SMD LED (Inch) | 2.032 | 1.270 | 0.080 | 0.050 | 2.581 |
| 1515 SMD LED (mm) | 1.500 | 1.500 | 0.059 | 0.059 | 2.250 |
| 0603 SMD LED (Inch) | 1.524 | 0.762 | 0.06 | 0.03 | 1.161 |
| 0402 SMD LED (Inch) | 1.016 | 0.508 | 0.040 | 0.020 | 0.516 |
| 0201 SMD LED (Inch) | 0.508 | 0.254 | 0.020 | 0.010 | 0.129 |
Why Do RGB SMD LEDs Need to be Integrated with LED Driver ICs?
Integrating RGB SMD LEDs with LED driver ICs offers several advantages, especially in applications involving multiple LEDs. This design significantly simplifies circuit design and reduces the complexity of PCB (Printed Circuit Board) layout. In traditional designs, the red, green, and blue light sources of each RGB SMD LED require separate wiring and connections to the LED driver IC, which increases the difficulty of design and manufacturing. However, by integrating the LED driver IC inside the RGB SMD LED, the need for these connections is reduced, simplifying the circuit design and enhancing system integration efficiency.
Cascading is a common method used in LED modules, particularly in displays and smart lighting systems, where multiple LEDs need to operate simultaneously. Integrating the LED driver IC into the RGB SMD LED simplifies the design of these applications. Most LED driver ICs used in RGB SMD LEDs support a generic cascaded connection scheme, which centrally manages current regulation and light control through a unified transmission protocol, reducing the need for external components. One popular example is the WS2812 LED driver IC, which supports this scheme and is widely used in Maker projects due to the availability of free open-source libraries. This not only reduces the complexity of PCB wiring but also increases the efficiency and flexibility of system design.
This integration not only simplifies PCB layout but also improves system stability and reliability, shortens development cycles, and significantly enhances overall performance in large-scale LED applications. Below are two product examples from our company to illustrate this:

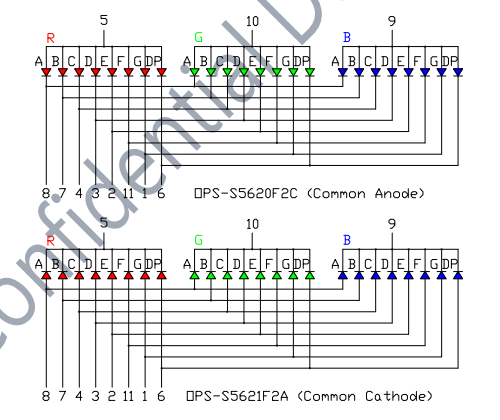

OPS-S5620F2C | OPS-S5621F2A are our 0.56″ single 7-segment displays using RGB LEDs. In the datasheet’s circuit diagram, you can see that all LEDs are connected in either a common cathode or common anode configuration, and the module requires 11 pins for external connections.

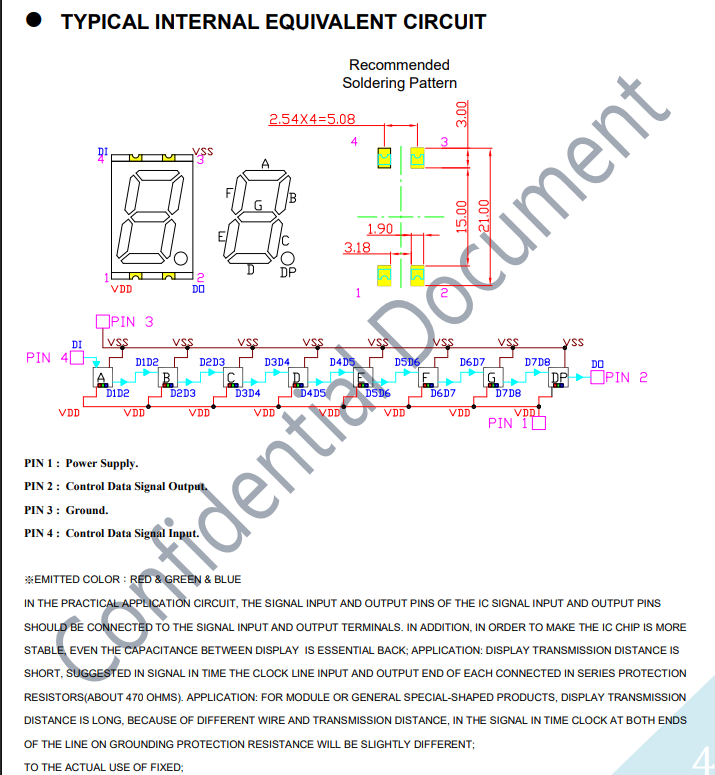

OPS-S56AAF5 is our 0.56″ single 7-segment display that uses RGB LEDs with a built-in Driver IC. In the datasheet’s circuit diagram, you can see that all LEDs are packaged together with the Driver IC in one module. The Driver IC supports a generic cascaded connection scheme, which significantly reduces the number of external pins needed, down to just 4 pins. This greatly simplifies the design of peripheral circuits for the LED.
Comparison Table of RGB SMD LED, RGBW SMD LED, Whether Built-in Driver IC, and Single-color SMD LED
Below is a comparison table of RGB SMD LED, RGBW SMD LED, RGB SMD LED with Driver IC, RGBW SMD LED with Driver IC, and Single-color SMD LED. This table allows readers to gain a deeper understanding of these products.
| — | RGB SMDnLED | RGB SMD LED with Driver IC | RGBW SMD LED | RGBW SMD LED with Driver IC | Single color SMD LED |
| Emission Color | Can mix into any color | Can mix into any color | Can mix into any color, with high and stable independent white light brightness | Can mix into any color, with high and stable independent white light brightness | Emits a single color |
| Number of Pins | More pins (typically 6~4) | Few pins, usually more than 2 | More pins (typically 8~5) | Few pins, usually more than 2 | Usually 2 pins |
Package Size | Medium | Largest | Medium | Largest | Smallest |
| Stability of White Light Emission | Due to slight variations in RGB emission, the white light color temperature may be unstable | Due to slight variations in RGB emission, the white light color temperature may be unstable | With a dedicated white LED, despite some variation, the white light color temperature is more stable than RGB-mixed white | With a dedicated white LED, despite some variation, the white light color temperature is more stable than RGB-mixed white | Better stability in single-color emission |
| LEDDrive Circuit Requirements | Requires additional LED Driver IC | LED Driver IC is built-in, communication with MCU or processor is sufficient | Requires additional LED Driver IC | LED Driver IC is built-in, communication with MCU or processor is sufficient | Requires additional LED Driver IC |
| Additional Circuit Requirements for Multiple LED Series | External LED Driver IC needed for LED series connection | Most RGBW LEDs with built-in Driver IC allow simple series connection of multiple LEDs | External LED Driver IC needed for LED series connection | Most RGBW LEDs with built-in Driver IC allow simple series connection of multiple LEDs | External LED Driver IC needed for LED series connection |
| LED Drive Circuit Complexity | High | Lower | Highest | Lower | Medium |
Applications of RGB SMD LED
RGB SMD LEDs, with their ability to display multiple colors, have a wide range of applications. First, in advertising billboards and outdoor displays, RGB SMD LEDs can display a variety of colors and dynamic effects by adjusting the combination of red, green, and blue light. In addition, RGB SMD LEDs are widely used in smart lighting systems, where users can adjust the color and brightness of the lights to create different atmospheres. Stage lighting is another important application of RGB SMD LEDs, providing varied lighting effects to enhance the visual impact of performances.
In the automotive industry, RGB SMD LEDs are used for interior ambient lighting and other decorative lights, offering a range of color choices that enhance the driver’s experience and the aesthetics of the vehicle. These applications showcase the advantages of RGB SMD LEDs in multi-color light control.
Conclusion
OPTO PLUS LED CORP. currently offers a range of single-color SMD LEDs and RGB SMD LEDs for customer selection, available through the catalog or directly from the website. RGB SMD LEDs combine red, green, and blue light sources with surface-mount technology, making them essential components in modern display and lighting systems. Using the additive color model, they can produce a wide range of colors, and with PWM technology, brightness can be precisely adjusted, improving energy efficiency and control accuracy. Compared to single-color SMD LEDs, RGB SMD LEDs offer more color variation and differ in package sizes and applications. Designs with integrated LED Driver ICs further simplify circuit design, making them ideal for scenarios requiring multiple LEDs to operate simultaneously. RGB SMD LEDs are widely used in advertising displays, smart lighting, stage lighting, and automotive decoration, demonstrating strong light control and flexibility.
FAQ
An RGB SMD LED is a product that combines three key technologies. “RGB” stands for the three basic colors: red, green, and blue. “SMD” stands for Surface-Mounted Diode, a technology that mounts the LED directly onto a circuit board. “LED” stands for Light-Emitting Diode. By combining different levels of brightness, RGB SMD LEDs can produce millions of colors. Thanks to SMD packaging technology, they also have higher durability and better heat dissipation.
The brightness of an RGB SMD LED is primarily controlled by PWM (Pulse-Width Modulation) technology. PWM drives the LED with a constant current, using rapid on/off switching to control the duty cycle. This method changes the average current flowing through the LED, allowing for precise brightness adjustments. It is more efficient than simply changing the current, as that method can face challenges like non-linear relationships and mass-production tolerances.
What are the differences between an RGB SMD LED and a monochrome LED?
These two types of LEDs have significant differences in their structure and applications.
Emitting Color: RGB SMD LEDs integrate three light sources—red, green, and blue—to create a wide range of colors, making them suitable for applications that require dynamic color changes. Monochrome SMD LEDs, however, contain only one fixed color light source, making them ideal for indicator lights or single-color backlighting.
Package Size: Since RGB SMD LEDs need to house three chips, their package sizes are typically larger, such as 2020, 0808, or 0404. Monochrome SMD LEDs only need to house one chip, so they can use smaller packages, such as 0603, 0402, or 0201.
Circuit Design and Cost: The circuit design and driving of RGB SMD LEDs are more complex and costly. In contrast, monochrome SMD LEDs have a simpler driving design and lower production costs.
The package numbers for SMD LEDs are usually composed of four digits that represent their length and width.
Millimeters (mm): Packages like 3528, 5050, and 2835 are mainly for larger LEDs that can house RGB, RGBW, or even integrated driver ICs.
Inches (inch): Smaller packages, such as 0603 and 1206, are primarily used for monochrome LEDs due to their size limitations.
Integrating an LED Driver IC into an RGB SMD LED greatly simplifies the complexity of circuit design and PCB routing. In traditional designs, each of the three light sources in an RGB LED requires independent routing, which increases design difficulty. By integrating a driver IC, especially one that supports a Generic Cascaded Connection Scheme, the number of external pins can be significantly reduced, simplifying routing and improving system stability and reliability.
RGB SMD LEDs have a wide range of applications, including:
Display and Lighting: They are used in billboards, outdoor displays, smart lighting systems, and stage lighting to create rich and dynamic color effects.
Automotive Industry: They are used for interior ambient lighting and other decorative lighting to enhance the driving experience and vehicle aesthetics.
