LED display Product analysis | home appliances #11｜Refrigerator

• Product application:
  • Displays various modes of the refrigerator.
• product page:
  • https://www.hsct.com.tw/products/products_03.php?pid=RHW610NJ

• LED display picture：
  • https://shop.kmb.com.tw/image/catalog/Hitachi/RHW610NJ/4.jpg
• What LED display was used?
  • C：LED indicator
  • Using 16 orange LED icons, 10 white LED icons, 3 green LED icons, 3 red LED icons, 1 blue LED icon.
• Emitting color:
  • Orange/White/Green/Red/Blue

LED display Product analysis | home appliances #12｜Water heater panel

• Product application:
  • Displays the current temperature and units of the Water heater.
• reference product picture：

• What LED display was used?
  • A：Emitting light to display character
    • Using a Two digits 7 segment white emitting color display
  • C：LED indicator
    • Using two white emitting color icons to displady temperature units.
• Emitting color:
  • White emitting color

LED display Product analysis | home appliances #13｜CLAIRE Instant heat dispenser panel

• Product application:
  • Displays the water temperature, water output, discharger panel mode, and animation effects when the water is out.
• Reference product video or picture:
  • Product homepage:
    • https://www.zeczec.com/projects/CLAIRE
  • Youtube video

• What LED display was used?
  • A：Emitting light to display character
    • Using a Two digits 7 segment white emitting color display
  • C：LED indicator
    • 12 white icon icons are used to show the drinking fountain pattern, and eight circular blocks are used to animate the water output.
• 發光顏色：
  • 白
  • Emitting color:
  • White emitting color

LED display Product analysis | home appliances #14｜Electric kettle

• Product application:
  • Displays the target heating temperature, as well as whether it is started and held.
• Reference Video and Picture:

• What LED display was used?
  • A：Emitting light to display character
    • Using a Two digits 7 segment emitting color display
• C：LED indicator
  • Use two white indicators to show whether the kettle is on and kept warm
• Emitting color
  • White, Red

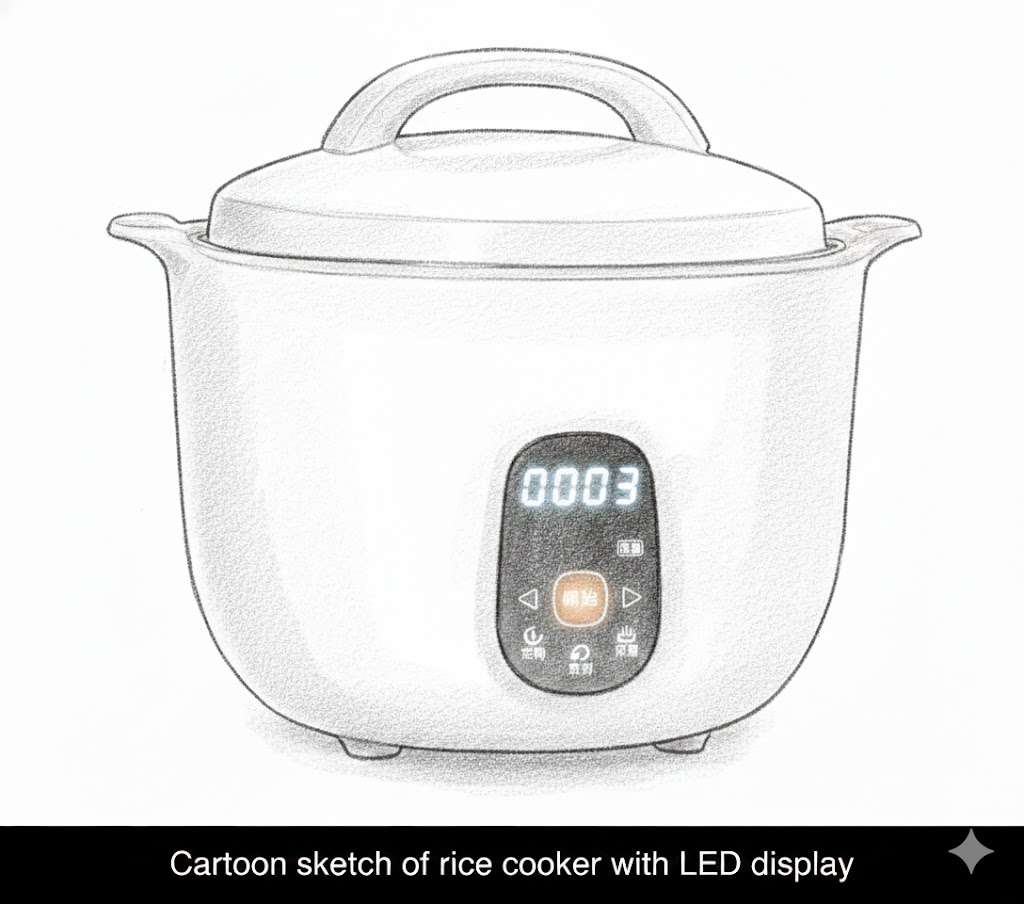

LED display Product analysis | home appliances #15｜Tatung thermostatic smart rice cooker

• Product application:
  • Displays cooking time, time and temperature
• Reference Video or picture:
  • https://www.tatung.com/Product/Consumer/1426
• Youtube影片:

• What LED display was used?
  • A：Emitting light to display character
  • Using a four digits 7 segment white emitting color display
  • C：LED indicator
    • Use 7white indicators to show cooking mode of Tatung thermostatic smart rice cooker
• 發光顏色：
  • 白

LED display Product analysis | home appliances #16｜Microwave oven

• Product application:
  • Microwave time, mode display
• Reference Video or Picture:

• What LED display was used?
  • A：Emitting light to display character
    • 4 digits green emitting light seven segment display.
• Emitting color:
  • Green

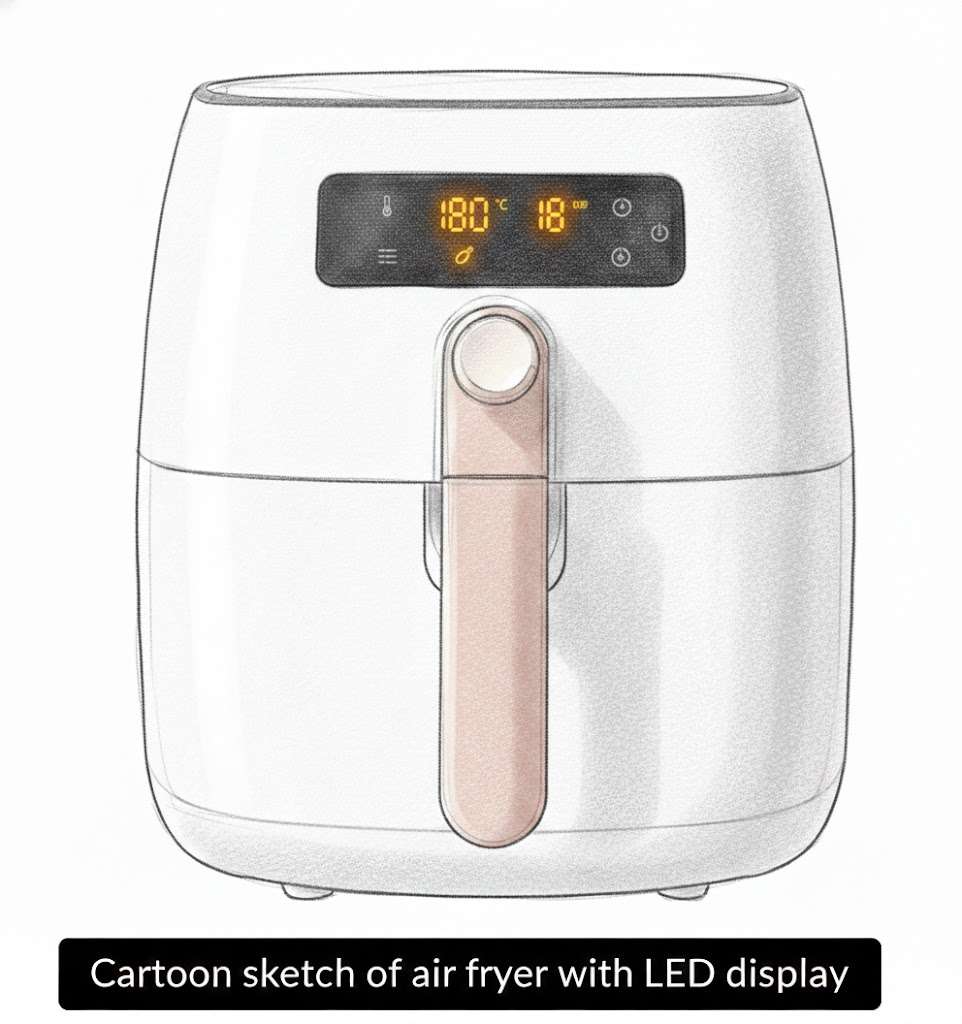

LED display Product analysis | home appliances #17｜Air Fryer

• Product application:
  • Display the frying time and temperature, as well as the frying mode selection
• Reference video or picture:
  • Product home page:
    • Air Fryer product home page

• What LED display was used?
  • Product Guess uses a fully customized LED display that integrates a white seven-segment display that displays information and a peripheral LED indicator.
  • A：Emitting light to display character
    • Using a 3 digit orange seven segment display
  • C：LED indicator
    • Use 16 icons to show time, temperature and cooking mode.
• Emitting color
  • Orange

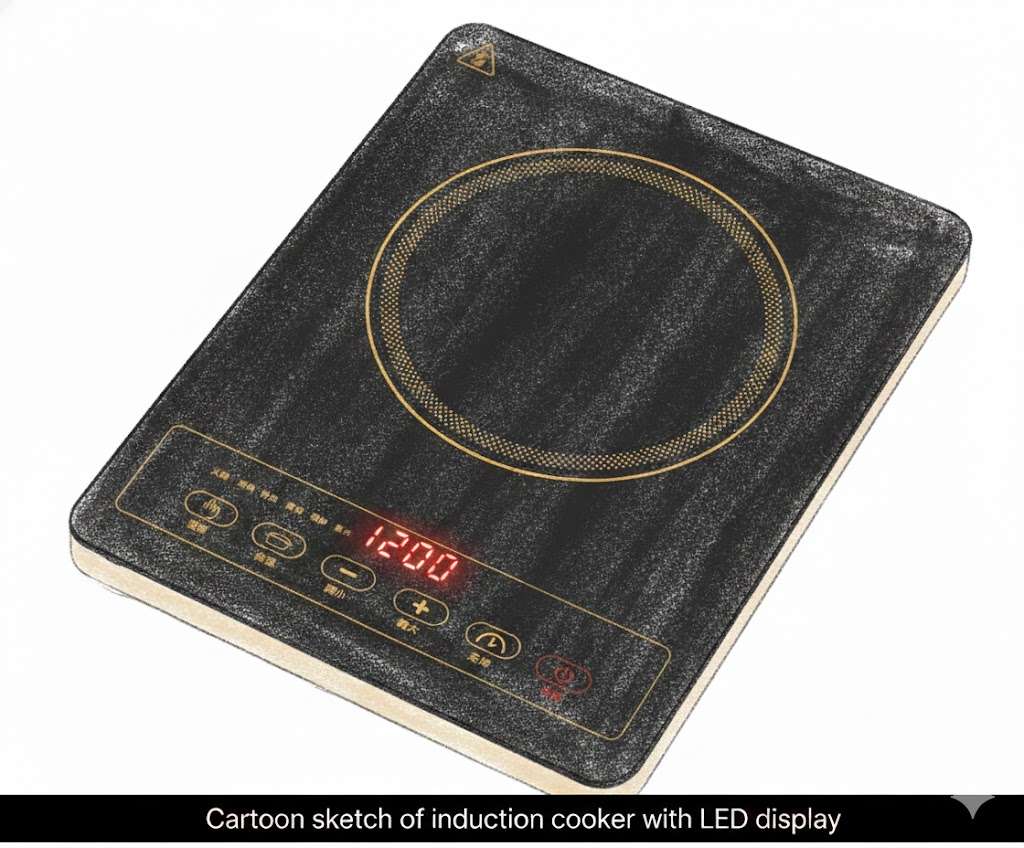

LED display Product analysis | home appliances #18｜Electric ceramic stove

• Product application:
  • Displays the current power and time and temperature, as well as the product mode
• Reference video or picture
  • Product photo or home page.
    • Electric ceramic stove products home page

• What LED was used?
  • A：Emitting light to display characters
    • Use a four-digit red seven-segment display
  • C：LED indicator
    • Use a nine red LED indicator to display the product mode
• Emitting color:
  • Red

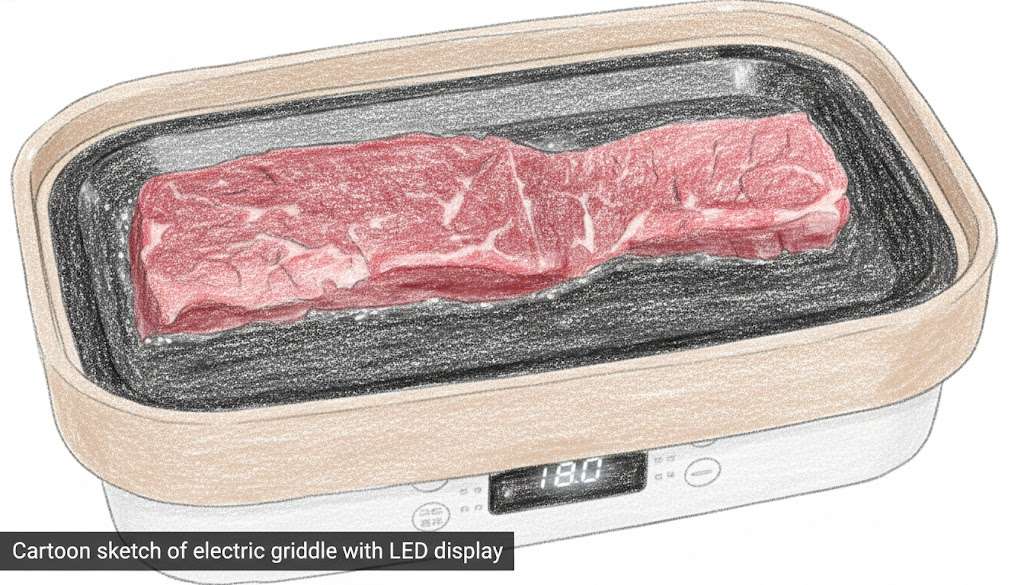

LED display Product analysis | home appliances #19｜Multi-function cooking pot

• Product application:
  • Displays cooking pot temperature and product mode
• Reference video or picture
  • Product photo or home page
    • Multi-function cooking pot product home page

• What LED display was used?
  • A：Emitting light to display character
    • Use a three digit white seven segment display
  • C：LED indicator
    • Six white LED indicators are used to display product mode
• Emitting color:
  • White

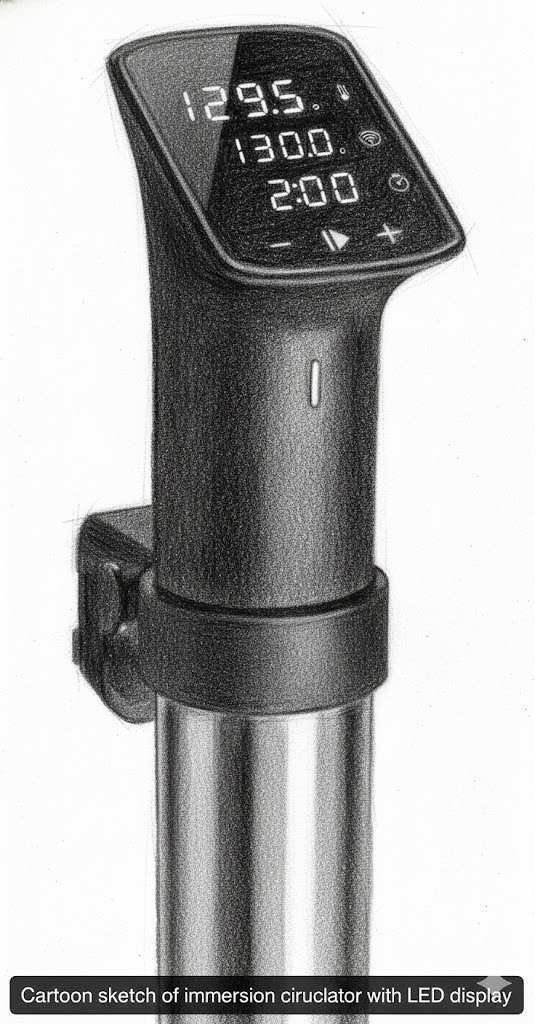

LED display Product analysis | home appliances #20｜ANOVA Sous Vide Machine

• Product application
  • Displays the time and temperature of the Sous Vide Machine, as well as the cooking mode
• Reference video or picture:
  • Product photo or home page
    • ANOVA Sous Vide Machine product 　

• What LED display was used?
  • A：Emitting light to display character
    • Use three sets of four digit white seven-segment displays to show temperature or time
  • C：LED Indicator
    • Use Eight white LEDs to display various modes
• Emitting color
  • White

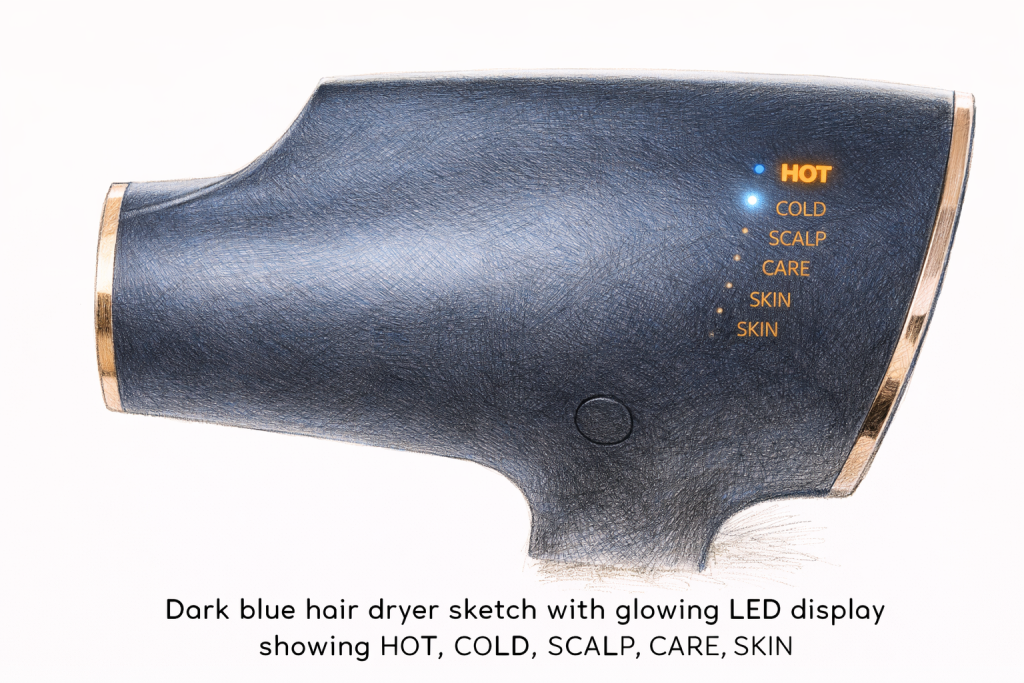

LED display Product analysis | home appliances #21｜Hair dryer

• Product application:
  • Display the hair dryer mode
• Reference video or picture
  • Product photo or home page
    • Hair dryer product home page

• What LED display was used?
  • C：LED indicator
    • Use one green indicator and six LED indicators to display various hair dryer modes
• Emitting color
  • White, Green

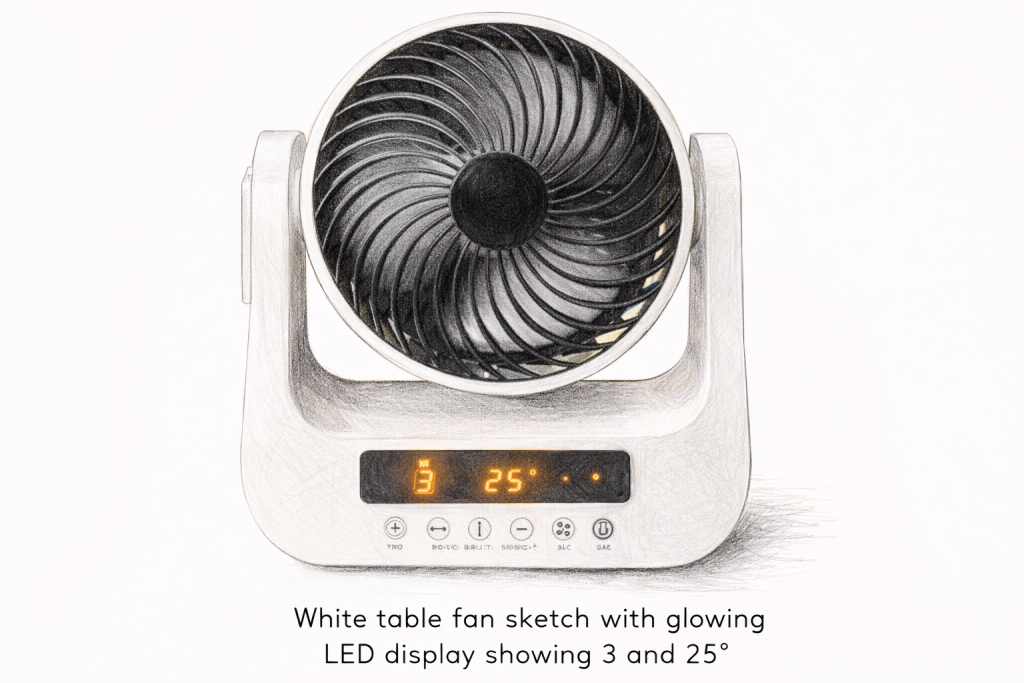

LED display Product analysis | home appliances #22｜DC Energy-saving electric fan

• Product application:
  • Displays the electric fan mode, wind speed, and current temperature
• Reference video or picture
  • Product photo or home page
    • DC Energy saving electric fan

• What LED display was used?
  • A：Emitting light to display character
    • Use a one digit white seven-segment display, and 2 two digit white seven-segment displays
  • C：LED indicator
    • Use seven LED icon indicators to display various fan modes
• Emitting color
  • White

LED display Product analysis | home appliances #23｜dehumidifier

• Product application
  • Displays the humidity and mode of the dehumidifier
• Reference video or picture

• Product photo or home page
  • Dehumidifier
• What LED display was used?
  • A：Emitting light to display character
    • Use a two digit green seven-segment display
  • C：LED indicator
    • Use eleven red LED indicator to display various mode.
• Emitting color
  • Red, Green

LED display Product analysis | home appliances #24｜Air cleaner

• Product application
  • Displays indoor temperature, humidity, and air quality readings and dehumidifier mode
• Reference video or picture
  • Product photo or home page
    • Air cleaner　

• What LED display was used?
  • A：Emitting light to display character
    • The Air cleaner uses 2 two digit white seven segment displays and a three digit white seven segment display to display the air quality readings.
• C：LED indicator
  • Use eight white icon (ICON) displays to display air cleaner mode and two green LED lights to display air quality
• Emitting color
  • White, Green

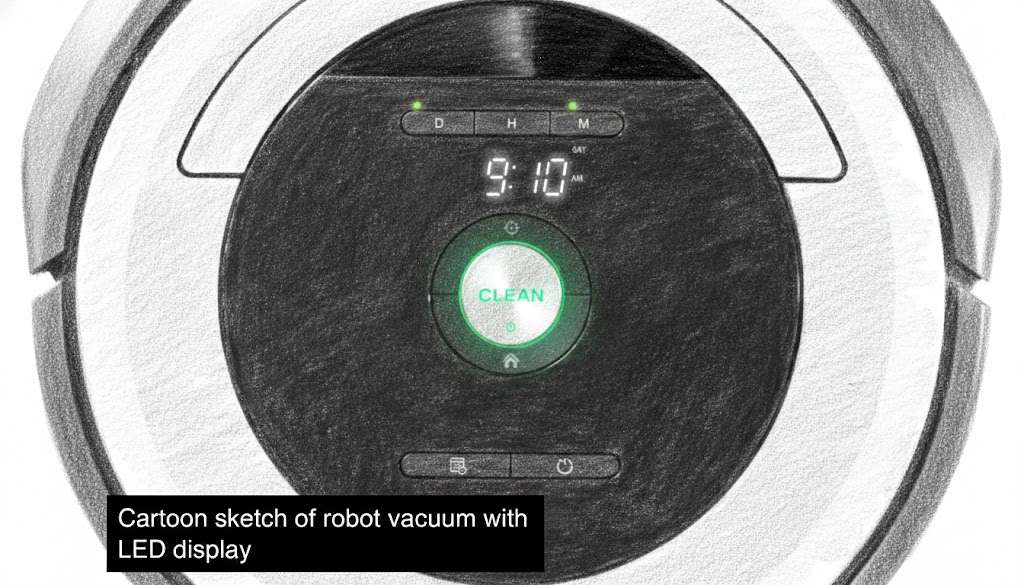

LED display Product analysis | home appliances #25｜Robot vacuum cleaner

• Product application
  • Displays the time and product mode and sweep status
• Reference video or picture
  • Product photo or home page
    • Roomba Robot vacuum cleaner

• What LED display was used?
  • A：Emitting light to display character
    • Use 1 four digit white seven segment display with a colon to display the time.
  • C：LED indicator
    • Use nine icons to display the date and time, and a set of green circular LED indicators in the center to display the sweeping status of the luminous color.
• Emitting color
  • White, Green
