100 LED Display Applications Analysis for Product Designers |Game console (1) #76-85

　　This article is the fith part of the “100 LED Display Applications Analysis for Product Designers” series written by OPTO PLUS LED . It focuses on LED display applications in consumer electronics and analyzes publicly available product information on LED displays found online. This allows product designers to quickly understand what kind of effects LED display products can achieve and to choose the most cost-effective and suitable display applications for their product designs.

• Product Designer’s 100 LED Display Application Analysis | home appliances(1) #1~10
• Product Designer’s 100 LED Display Application Analysis | home appliances(2) #11~25
• Product Designer’s 100 LED Display Application Analysis | home appliances(3) #26~35
• Product Designer’s 100 LED Display Application Analysis | Consumer Electronics(1) #36~45
• Product Designer’s 100 LED Display Application Analysis | Consumer Electronics(2) #46-60
• Product Designer’s 100 LED Display Application Analysis | Display product (1) #61-75
• Product Designer’s 100 LED Display Application Analysis | Game console (1) #76-85
• Product Designer’s 100 LED Display Application Analysis |Electrical Instrument1) #86-100

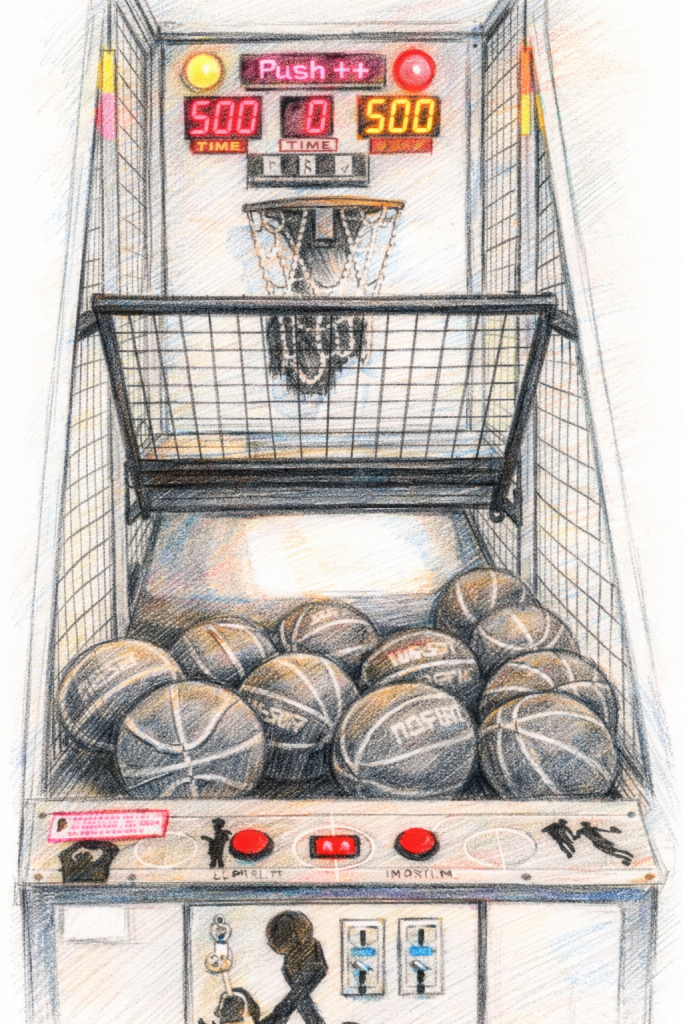

LED Display Product Analysis | Game console #76｜shooting machine

• Product Application:
  • Display current score and status marquee, and remaining time.
• Product picture：

• What LED Display Used:
  • A：Emitting light to display character
    • Utilizes three standard 4″ single 8 THT LED seven-segment display | diamond segment form two three-digit numbers to display the fraction and another two-digit number to display the remaining time.
  • B: Light Emitting Graphical Display
    • A red LED dot matrix display is used to form a marquee to display the current status of the game console.
  • C：LED indicator
    • Two red and yellow ICON indicators are used to display the countdown time
• Emitting color：
  • red，yellow

LED Display Product Analysis | Game console #77｜claw machine

• Product application ：
  • Display product selling price and accumulated amount
• Product picture：

• What LED display was used?
  • A：Emitting light to display character
    • Use the LED seven-segment display to form two or four digits to display the product price and cumulative amount
• Emitting color：
  • red

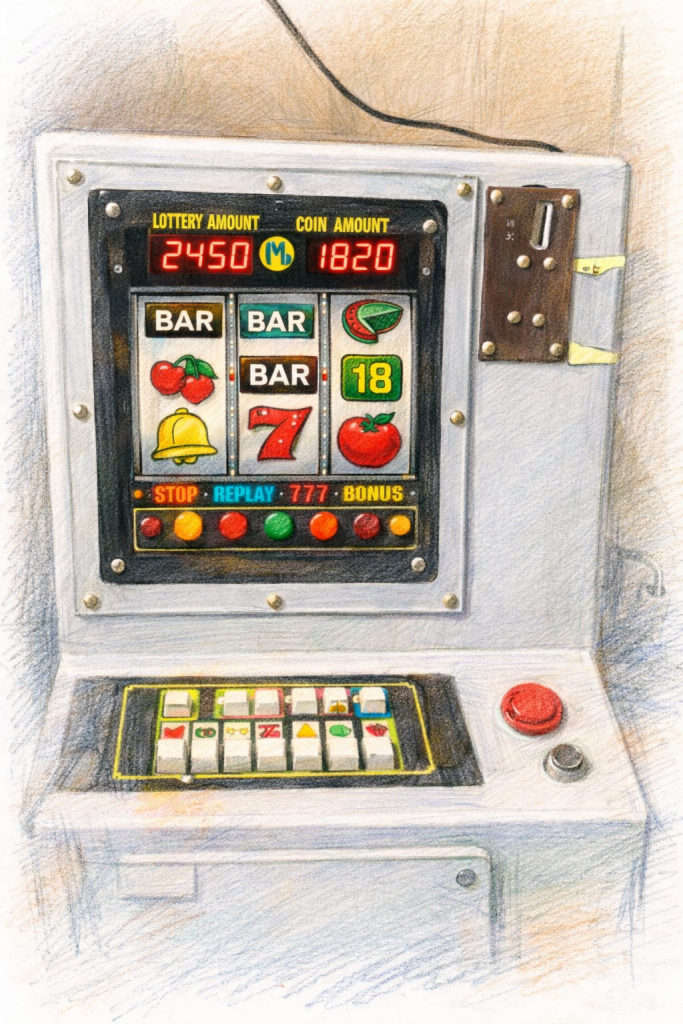

LED Display Product Analysis | Game console #78｜Slot Machine

• Product application ：
  • Display the betting number and betting light turntable position of the slot machine
• Product page：
  • 【小瑪莉】電子遊戲介紹，老賭客的情懷經典之作
• Product Demo：

• What LED Display Used:：
  • A：Emitting light to display character
    • Use eight sets of two-digit LED seven-segment displays to display the bet amount, and two sets of four-digit LED seven-segment displays to display the current score and the highest score
  • C：LED indicator
    • 22 red LED LAMP indicators are used to show the position of the turntable
• Emitting color：
  • red

LED Display Product Analysis | Game console #79｜pinball table

• Product application ：
  • Display pinball scores and game status
• Product picture：

• What LED Display Used:
• A：Emitting light to display character
  • Use three sets of four-digit LED seven-segment displays to display the current score, another set of four-digit LED seven-segment displaysto display the current time, and another set of one-digit LED seven-segment displaysto display the marbles in the game state tower
• C：LED indicator
  • 16 red LED LAMP indicators are used to display the status of each pinball machine
• Emitting color：
  • red

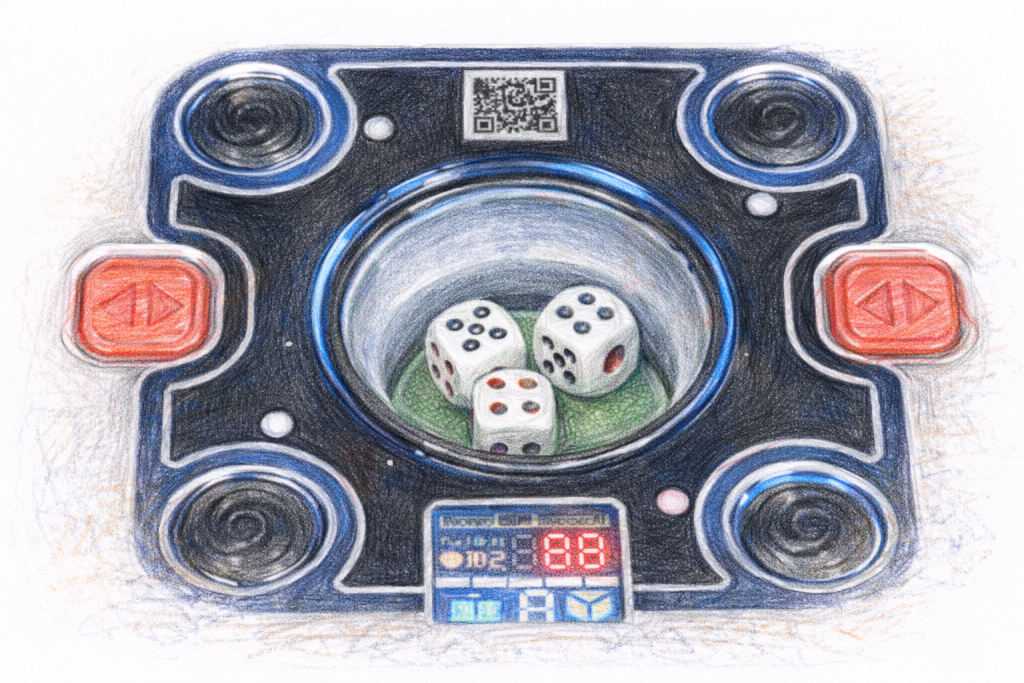

LED Display Product Analysis | Game console #80｜electric mahjong table

• Product Application:
  • Display the current state of the Mahjong game
• Product page：
  • 雀王TT超薄餐桌型電動麻將桌
• Product demo ：

• What LED Display Used:：
• A：Emitting light to display character
  • Utilizes a customized seven-segment display to display Mahjong game and electric Mahjong table status
• Emitting color：
  • Red light, green light, blue light, yellow light

LED Display Product Analysis | Game console #81｜table hockey game machine

• Product Application:
  • Show table hockey score status and current innings
• Product picture：

• What LED display was used?
• A：Emitting light to display character
  • 利用三個標準的4″ 單8 THT LED 七段顯示器 | 菱形字節來顯示分數和局數Utilizes three standard 4″ single 8 THT LED seven-segment displays | Diamond segment to display score and innings
• C：LED indicator
  • 3 red and 12 green LED LAMP indicators are used to display the remaining time
• Emitting Color：
  • red，green

LED Display Product Analysis | Game console #82｜candy game machine

• Product application ：
  • Display the amount of tokens inserted
• Product picture：

• What LED display was used?
  • A：Emitting light to display character
    • Use a set of four-bit LED seven-segment displays to display the current number of tokens
• Emitting color：
  • Red

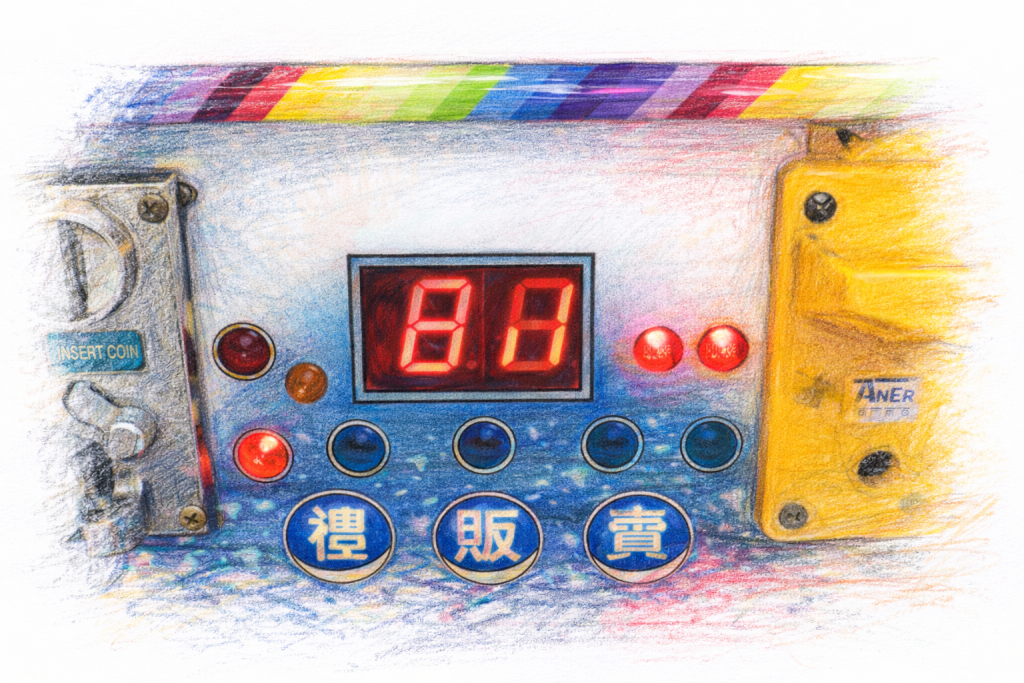

LED Display Product Analysis | Game console #83｜gift vending machine

• Product application ：
  • Display the amount of tokens inserted
• Product picture：

• What LED display was used?
  • A：Emitting light to display character
    • The number of tokens invested using a set of two-digit LED seven-segment displays
  • C：LED indicator
    • Seven red LED LAMP indicators are used to display the game mode lights
• Emitting color：
  • Red

LED Display Product Analysis | Game console #84｜LED toy capsule vending machine

• Product application ：
  • Displays the number of tokens inserted and decorative lights
• Product picture：

• What LED display was used?
  • A：Emitting light to display character
    • The number of tokens inserted using a set of two-digit LED seven-segment displays
  • C：LED indicator
    • A circle of blue LED LAMP indicator is used to decorate the lamp, and a circle of RGB is used for the button part to be decorated
• Emitting color：
  • red, blue, RGB

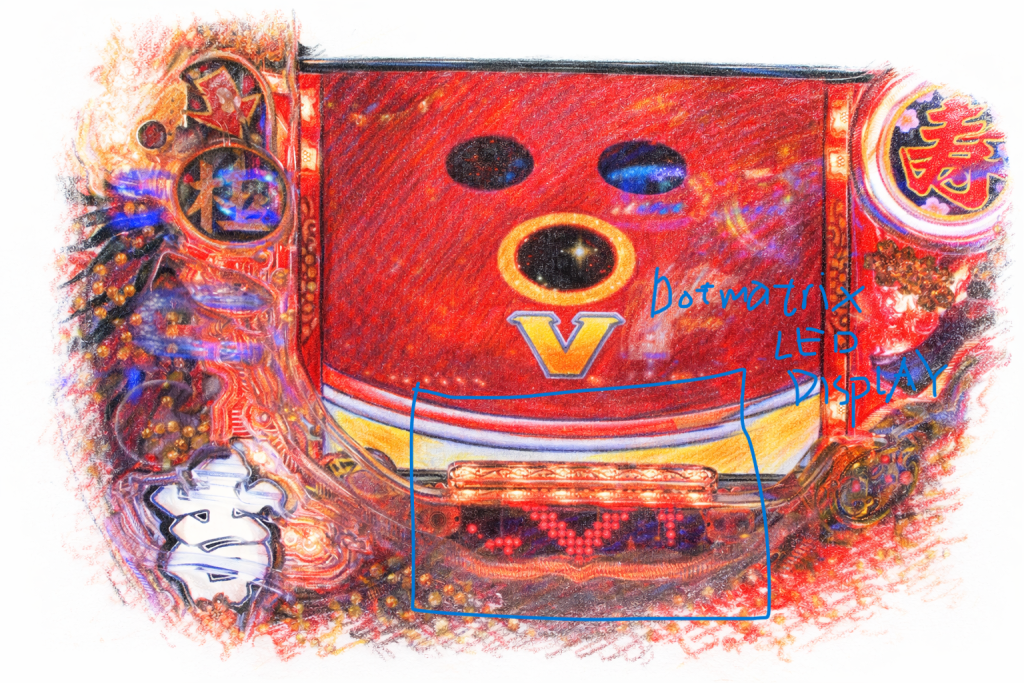

LED Display Product Analysis | Game console #85｜Pachinko slot machine

• Product application ：
  • Show game info
• Product demo :

• What LED display was used?
• B：Emitting light to display pattern
  • Use standard LED dot matrix to display game information
• Emitting color：
  • Red
