　　This article is the six part of the “100 LED Display Applications Analysis for Product Designers” series written by OPTO PLUS LED . It focuses on LED display applications in consumer electronics and analyzes publicly available product information on LED displays found online. This allows product designers to quickly understand what kind of effects LED display products can achieve and to choose the most cost-effective and suitable display applications for their product designs.

• Product Designer’s 100 LED Display Application Analysis | home appliances(1) #1~10
• Product Designer’s 100 LED Display Application Analysis | home appliances(2) #11~25
• Product Designer’s 100 LED Display Application Analysis | home appliances(3) #26~35
• Product Designer’s 100 LED Display Application Analysis | Consumer Electronics(1) #36~45
• Product Designer’s 100 LED Display Application Analysis | Consumer Electronics(2) #46-60
• Product Designer’s 100 LED Display Application Analysis | Display product (1) #61-75
• Product Designer’s 100 LED Display Application Analysis | Game console (1) #76-85
• Product Designer’s 100 LED Display Application Analysis |Electrical Instrument1) #86-100

100 LED Display Applications Analysis for Product Designers | electronic instrument#86｜smt feeder

• Product Application:
  • Display the current status of the SMT board feeder
• Product picture：

• What LED Display Used:
  • A：Emitting light to display character
    • Using a single-character LED seven-segment display to SMT board delivery mode
  • C：LED indicator
    • One and four LED ICON indicators with red and green lights are used to display the model of the SMT board delivery machine
• Emiting color：
  • red,green

100 LED Display Applications Analysis for Product Designers | electronic instrument#87｜Small Portable Billcounter

• Product Application:
  • Display the number of bills counted
• Product page：
  • 攜帶型點鈔機【型號V40】
• Product demo ：

• What LED Display Used:：
  • A：Emitting light to display character
    • Use a three-character LED seven-segment display to display the number of banknotes counted
• Emiting color：
  • red

100 LED Display Applications Analysis for Product Designers | electronic instrument#88｜ Billcounter for business use

• Product Application:
  • Display the number of bills counted
• Product page：
  • DS-299 輕巧智能點驗鈔機｜大山事務機器
• Product demo ：

• What LED Display Used:：
  • A：Emitting light to display character
    • Using eight sets of three-digit LED seven-segment display to display the number of banknotes counted
  • C：LED indicator
  • Using 6 green LED LAMP indicators to monitor the status of the banknote counter
• Emiting color：
  • Red / Green

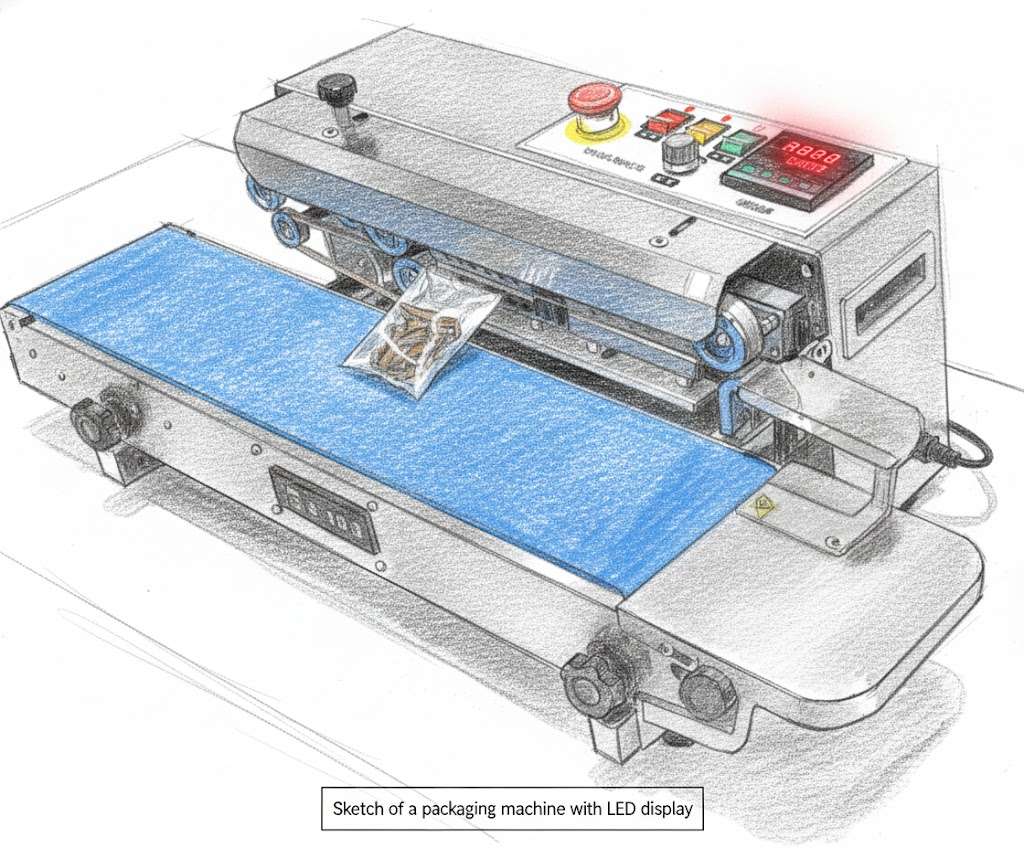

100 LED Display Applications Analysis for Product Designers | electronic instrument#89｜Continuous Automatic Sealing Machine

• Product Application:
  • Display sealer temperature Display sealer temperature
• Product page：
  • HP-CS900連續式自動封口機｜禾普精密
• Product demo ：

• What LED Display Used:：
• A：Emitting light to display character
  • Use two sets of four-bit LED seven-segment display to display the current sealing temperature
• Emiting color：
  • red light, green light

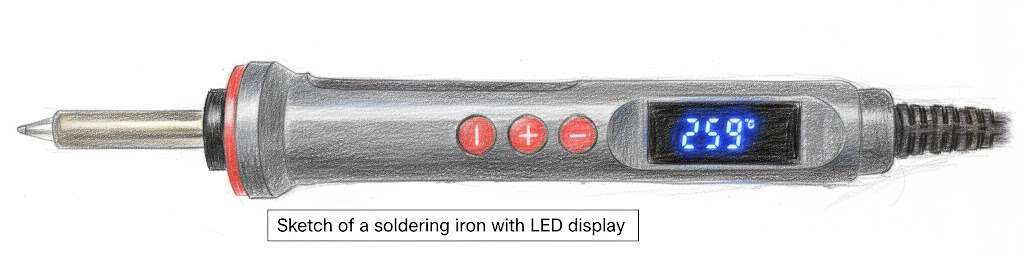

100 LED Display Applications Analysis for Product Designers | electronic instrument#90｜electric soldering iron

• Product Application:
  • Display the soldering iron temperature
• Product page：
  • Handskit 90W LED Digital Soldering Iron Kit 110V/220V Adjust Temperature Electrical Soldering Iron 4 Wire Core Welding Tools – 220V EU Plug
• Product demo ：

• What LED Display Used:：
• A：Emitting light to display character
  • Utilizes a custom seven-segment display to show iron temperature and units
• Emiting color：
  • Blue

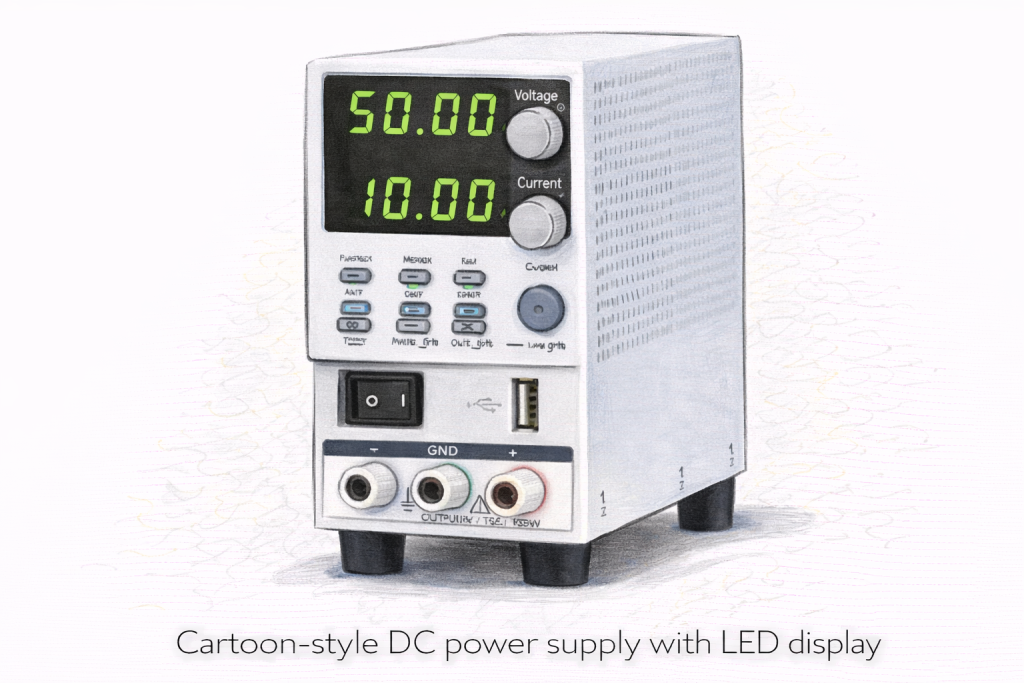

100 LED Display Applications Analysis for Product Designers | electronic instrument#91｜Power Supplier

• Product Application:
  • Display the current value of the output power supply current
• Product page：
  • PFR-100（無風扇設計）|GWINSTEK 固緯電子
• Product demo ：

• What LED Display Used:：
• A：Emitting light to display character
  • Utilizes two sets of standard 4 digit 8 THT LED seven-segment display to Display the current value of the output power supply current
• C：LED indicator
  • 6 green lights LED LAMP indicators are used to display the product mode
• Emiting color：
  • Green / yellow

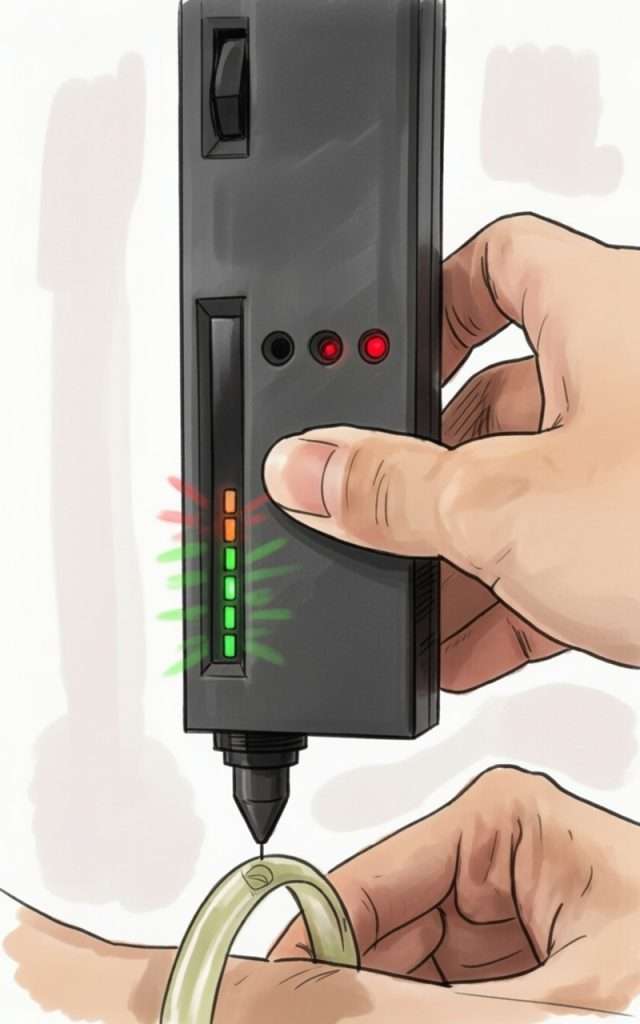

100 LED Display Applications Analysis for Product Designers | electronic instrument#92｜Hardness testing instrument

• Product Application:
  • Displays the hardness and product mode of the test object
• Product page：
  • MET-HRC9_鑽石硬度儀｜錫特工業科技有限公司
• Product demo ：

• What LED Display Used:：
  • B: Light Emitting Graphical Display
    • Use a set of 12 LED bar displays to display the current hardness
  • C：LED indicator
    • Three red lights and LED LAMP indicators are used to show the product mode
• Emitting color ：
  • red, orange, green

100 LED Display Applications Analysis for Product Designers | electronic instrument#93｜Rehabilitation electrotherapy machine

• Product Application:
  • Displays the intensity and frequency of rehab sessions and the remaining time
• Product picture:

• What LED display was used?
  • A：Emitting light to display character
    • Utilizes seven sets of two-bit and one set of three-character LED seven-segment display to display the intensity and frequency of rehabilitation sessions and the remaining time
• Emiting color：
  • Green

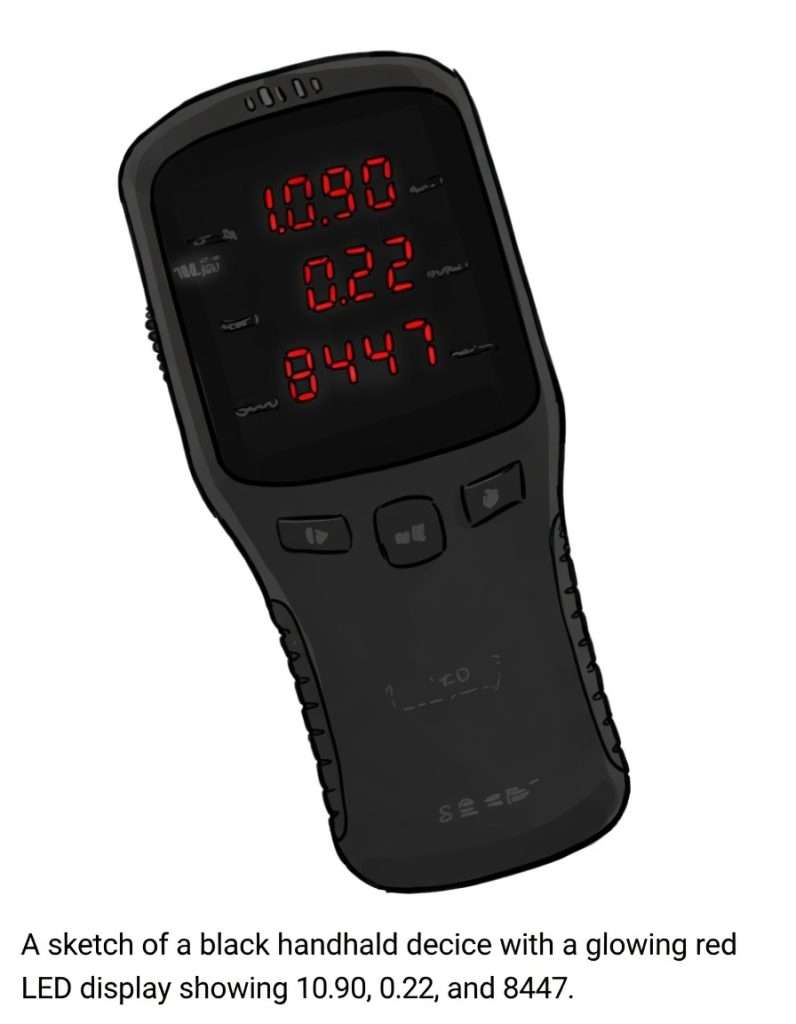

100 LED Display Applications Analysis for Product Designers | electronic instrument#94｜Portable Air Quality Detector

• Product application ：：
  • Display PM2.5/formaldehyde/TVOC value
• Product page：
  • [福利品]大LED面板 3in1 空氣品質檢測儀(PM2.5/甲醛/TVOC揮發性有機物)

• Product demo :

• What LED display was used?
  • A：Emitting light to display character
    • Use three sets of four-bit LED seven-segment display to display PM2.5/formaldehyde/TVOC values
• Emiting color：
  • red

100 LED Display Applications Analysis for Product Designers | electronic instrument#95｜sphygmomanometer

• Product application ：：
  • Display blood pressure information
• Product page：
  • 醫用隧道式血壓計健太郎 HBP-9020

• Product picture:

• What LED display was used?
• A：Emitting light to display character
  • Use two sets of three-character and one set of two-character LED seven-segment display to display blood pressure and pulse
• C：LED indicator
  • A blue light and LED LAMP indicatorsr are used to show whether the posture is correct
• Emiting color：
  • red light, blue light

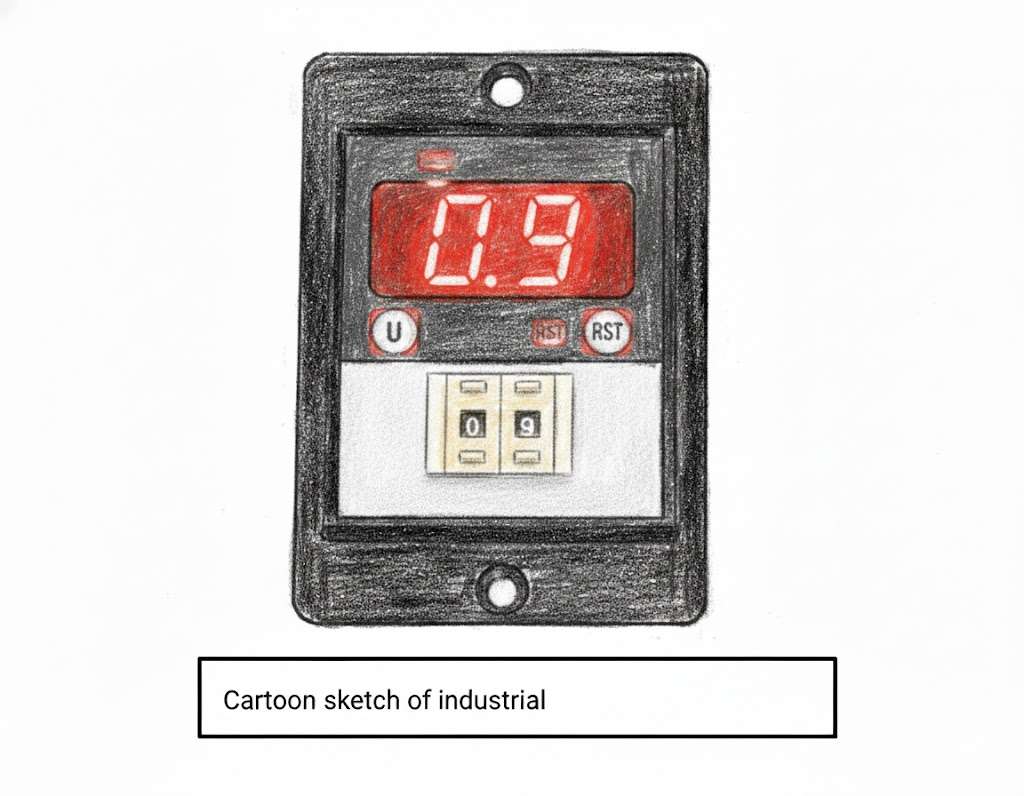

100 LED Display Applications Analysis for Product Designers | electronic instrument#96｜Electronic switch timer

• Product application ：
  • Show timed hours and products
• Product page：
  • SY-2D指撥設定數字顯示延時計時器 |陽明電機
• Product demo :

• What LED display was used?
• A：Emitting light to display character
  • Use a set of two-character LED seven-segment display to display voltage and current values
• C：LED indicator
  • Use three red LED LAMP indicatorsr to show product mode
• Emiting color：
  • Red

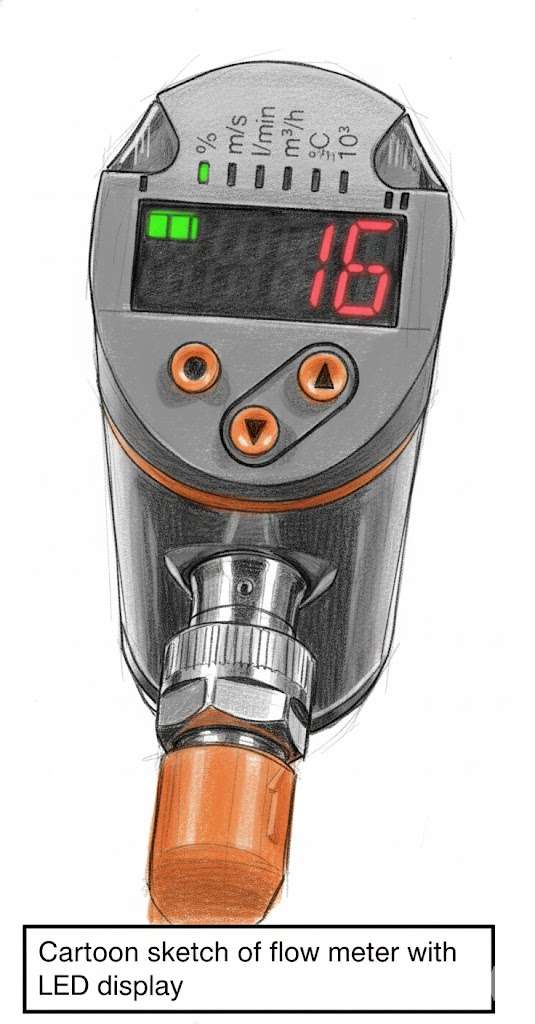

100 LED Display Applications Analysis for Product Designers | electronic instrument#97｜airflow sensor

• Product application ：：
  • Displays measured air flow and temperature
• Product page：
  • 流動感應器|SA5020|SAD10XDBFRKG/US-100
• Product demo :

• What LED display was used?
• A：Emitting light to display character
  • Use a set of four-characterLED seven-segment display to display the measured value
• C：LED indicator
  • Uses six green and two yellow LED LAMP indicator to show unit and switch status
• Emiting color：
  • red , green, yellow

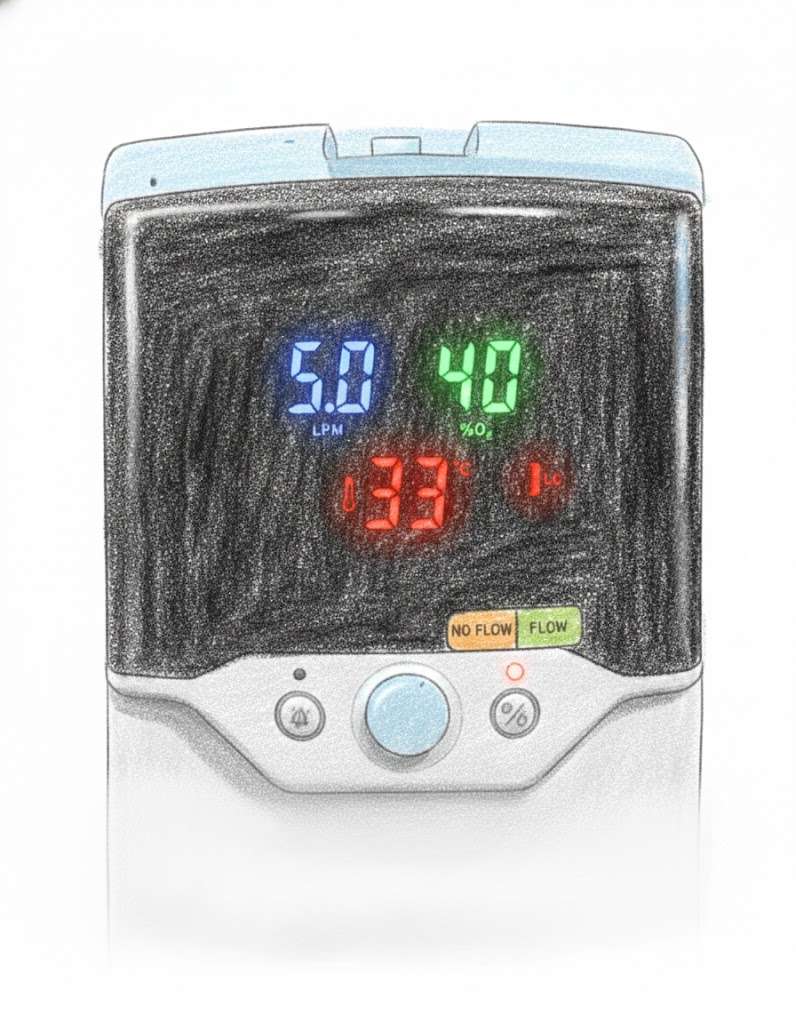

100 LED Display Applications Analysis for Product Designers | electronic instrument#98｜High Flow Respiratory Therapy Device

• Product application ：：
  • Display temperature, humidity and other information
• Product page：
  • 威伯森潮濕加熱系統PF-PLUS
• Product demo :

• What LED display was used?
• A：Emitting light to display character
  • Use three groups of two-characterLED seven-segment display to display temperature, humidity and other information
• C：LED indicator
  • Use one white, one green, one red LED LAMP indicator to display the unit
• Emiting color：
  • red, green, white

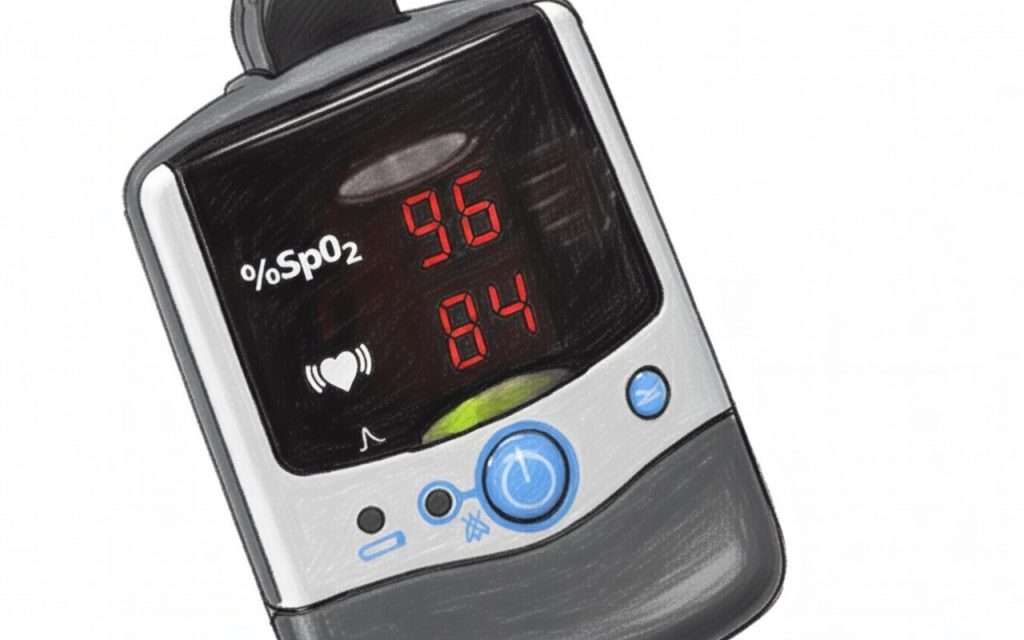

100 LED Display Applications Analysis for Product Designers | electronic instrument#99｜Handheld Oximeter

• Product application ：：
  • Display blood oxygen, heartbeat and other information
• Product page：
  • 2500A掌上型血氧飽和測定儀
• Product demo :

• What LED display was used?
• A：Emitting light to display character
  • Use two sets of two-character LED seven-segment display to display information such as temperature and humidity
• C：LED indicator
  • Use a red LED LAMP indicator to show the current status
• Emiting color：
  • red

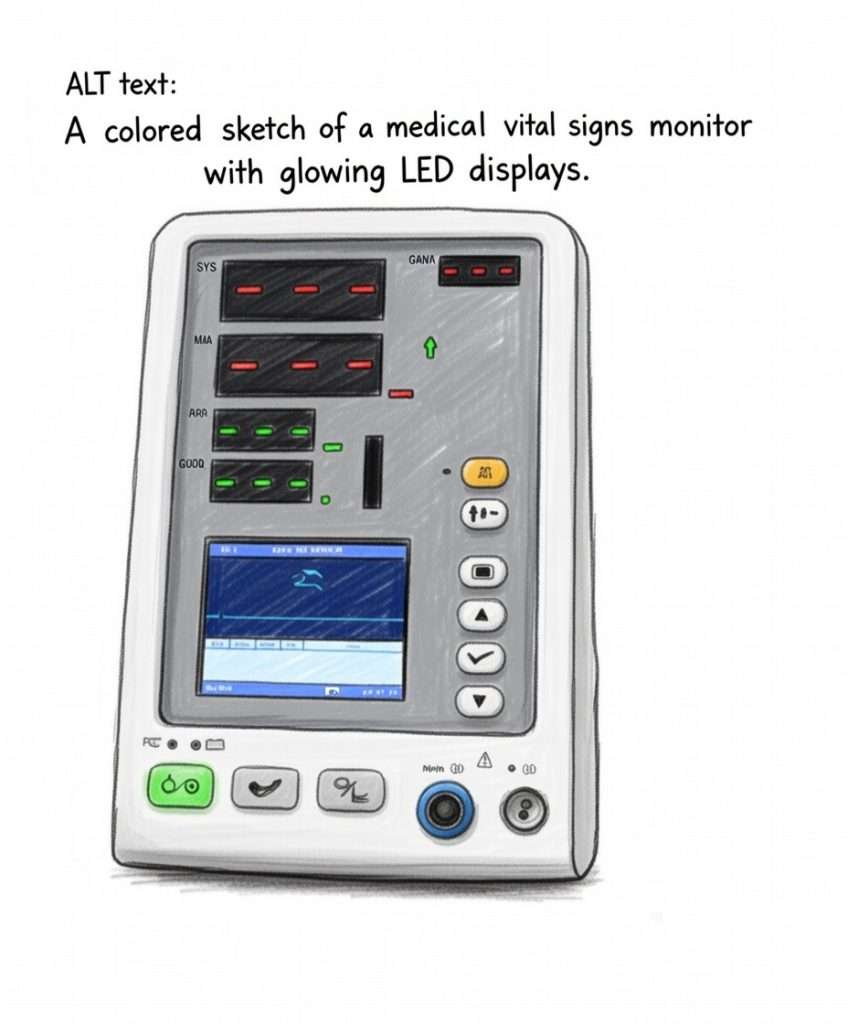

100 LED Display Applications Analysis for Product Designers | electronic instrument#100｜Vital Signs Monitor

• Product application ：：
  • Display the patient’s physiological data
• Product page：
  • 血壓血氧監護儀Ｍ3Ａ
• Product demo :

• What LED display was used?
• A：Emitting light to display character
  • 使用六組三個字元LED七段顯示器來顯示生理資訊Use six groups of three-character LED seven-segment display to display physiological information
• B：Emitting light to display patten
  • Physiological information displayed using a set of bar displays
• C：LED indicator
  • Uses seven red/greenLED LAMP indicator to show current status
• Emiting color：
  • red , green
